| Categories | LED Underwater Swimming Pool Lights |
|---|---|
| Brand Name: | Birmate |
| Model Number: | HG-UL-12W-SMD-R |
| Certification: | CE, RoHs, FCC, IP68,IK10 |
| Place of Origin: | China |
| MOQ: | 1 pcs |
| Price: | negotiation |
| Payment Terms: | L/C, T/T, Western Union, PayPal |
| Supply Ability: | 50000 pcs per month |
| Delivery Time: | 5-7 working days |
| Packaging Details: | Standard Export Carton Box |
| Working Voltage: | AC12V/DC12V |
| IP rank: | IP68 waterproof |
| wattage: | 12W±10% |
| luemn: | 1100LM±10％ |
| Beam angle: | 15°/30°/45°/60° |
| Led Color: | White/Red/Green/Blue |

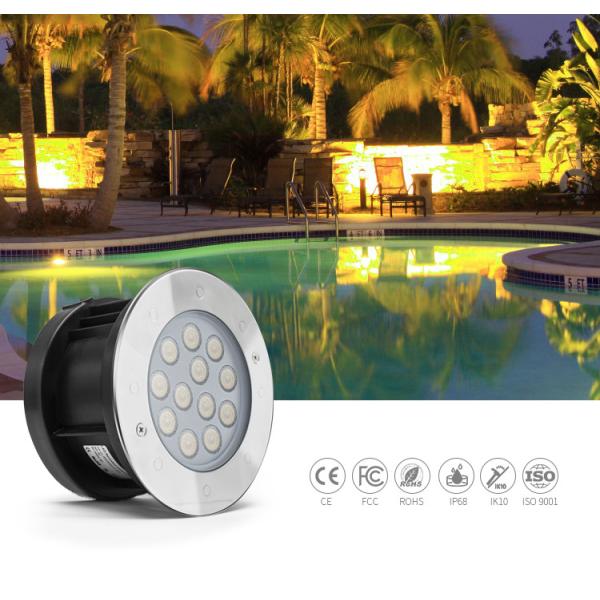

Excessed Install Underwater Spoltlight 6500K 12 Volt White Color Inground Light IP68
Product details
1. IP Rank: IP68 waterproof.
2. Shinning angle : 30°, other options: 15°/45°/60°.
3. Led Working Voltage: AC12V /DC12V input.
4. Led Color and CCT: Pure White: 6500K±10% Warm White:3000K±10% costomized .
5. RGB external control and DMX512 control are the best selling control in Heguang.
6. Material: 316L Stainless steel +Tempered glass cover cover, no yellowing or dazzling for two years.
Specification
| HG-UL-12W-SMD-R | |||||||
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable | |||||
| length | Φ150×87.5mm | ||||||
| Input voltage | AC/DC12V | ||||||
| Constant Driver | yes | ||||||
| Over-current Protection | yes | ||||||
| Wattage | 12W±10% | ||||||
| Light lumen | 1200LM±10％ | ||||||
| Beam angle | 15°/30°/45°/60° | ||||||
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized | ||||||
| Wave Length (nm) | R: 620-630nm | ||||||
| G:515-525nm | |||||||
| B:460-470nm | |||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | |||||
| IP Rating | IP68 | ||||||
| Certificate | CE, RoHS,FCC,IP68,IK10 | ||||||
| Life-span | 50,000 hours | ||||||
| Warranty | 2Years | ||||||
| Packing | Lamp sizeInner box dimension | 160×160×110mm | |||||
| G.W. / ctn. | 21.86Kg | ||||||
| test Site | LED Underwater light (Min) | ||||||
| Ambient temperature 28℃ | Ambient temperature 40℃ | ||||||
| Underwater test lighting time(Min) | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 52 | 57 | 63 | 53 | 56 | 65 | 73 |
Product Features
1. Integrated bead lens with uniform lighting ,no dazzling,light transmittance ＞85%.
2. CREE LED chips, Super bright SMD3030 and SMD3535, RA ≥80, gold wire welding,
3. EMC and ceramic make the heat dissipation faster, assure the longer lifespan of LED.
4. Thickened aluminum board: 2-3mm, better heat dissipation with the conductivity: 2.0W/(m.k).
5. Low voltage constant current power supply drive, efficiency ＞90%, make sure the LED is constant current working
the input voltage change no effect with the LED lifespan.
Product Size
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Led light for swimming pool must be 8 hours aging test and provide 2 Years warranty.
3. Led underwater lights 12v Finished products all passed 30 steps quality inspection.
4. Good looking stamping SS316 rivet screws,more stable, never fall off
5. Good looking with rivet screw and cover nut assembly, longer lifespan.
6. IP68 structure waterproof, can long time use under water.
LED underwater pool light all passed 30 steps quality control, 100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket fixing or (with clamp) water pipe binding installation method, widely used in garden pool, square pool, hotel pool, fountain and other underwater lighting.
Packing List
| Item | HG-UL-12W-SMD-R |
| Product weight | 900G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us or tell us your email so that we will give priority to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get them?
A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get our full attention.
It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous controller?
A: It doesn’t depend on the power. It depend on quantity, maximum is 20pcs.
If it plus the amplifier, it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs.
And RGB Synchronous controller is 1 pcs, amplifier is 8pcs.
|
