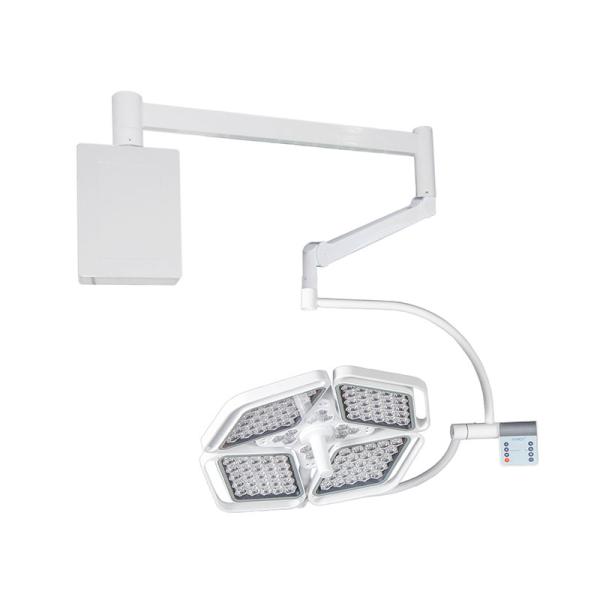

Surgery Theatre Medical LED Light 120 - 250mm Spot Diameter Environmental Friendly

wall mounted medical surgery theatre surgical led operation light

Discription:

Uniform,homogeneous lighting in surface and deep cavity procedures thanks to L4W-LED´s innovative shadow control.Our ergonomic, sterile operating concept allows for the simple and flexible control of all functions by the surgical team.Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection. Environmentally proactive: low power consumptionn and durable LEDs minimize the impact on our precious resources.

Main Tech Data

Mounted steps

1. according to picture 1 and picture 2 in the operation instruction, drill four 16mm holes on the floor plate

with impact drill in determined place. pressure plate and mounting disk must be tightened with screw

M12 in the appropriate length ,according to picture 3.

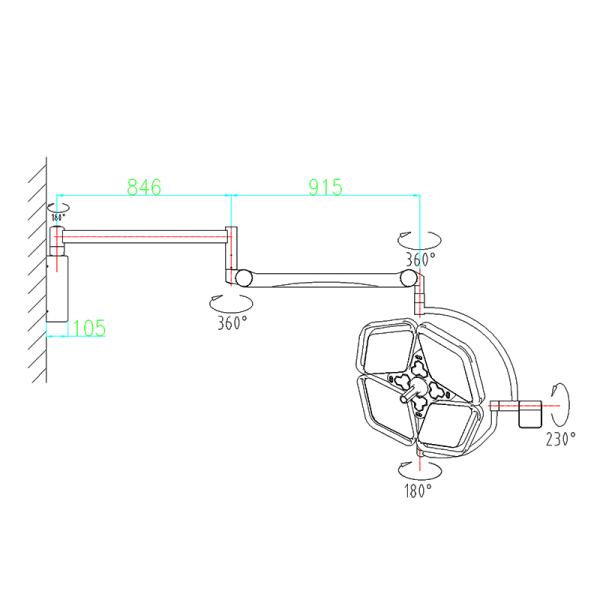

2. According to mounted diagram, connect the rotating arm to the mounting plate, regulate it to horizontal

place, and tighten it according to picture 3.

3. Connect two balance arms to rotating arms respectively, and connect the conductive plug. then tighten

the two parts with the distributive screw.

4. According to the instruction for the balance arm of Ondal, link the conductive plug, connect two lamps

to the balance arms respectively, and make sure that it is reliable.

5. After careful examination and confirmation, debug the equipment with energizing according to the

operation instruction.
