5 Ton 10 Ton Motorized Trolley Electric Wire Rope Crane Hoist

5 Ton 10 Ton Motorized Trolley Electric Wire Rope Crane Hoist

Brief Introduction

CD1 MD1 Type electric wire rope hoist with capacity varied from 0.25t to 32t. It has advantages of high working efficiency, fast lifting speed, durable and easy maintenance.

Small-sized lifting equipment which can be mounted on single beam, bridge, gantry and arm cranes.

Widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

Technical parameters

Features and advantages

1. CD1/MD1 model can be used as a winch after slight modification.

2. Choose single or double lifting speed, even multi-speed with frequency inverters.

3. The suitable rail for low-headroom hoist is H-type rail, and I-type also is available.

4. The recommended rope reeving of the kind of hoist is 2/1, 4/2 or 4/1.

5. The normal traveling speed is 20m/min, or 12.5m/min, 16m/min, 25m/min, 32m/min by request.

6. The normal rail gauge of the double-girder hoist is 1200mm, 1500mm, 1800mm, 2100mm and 2300mm.

7. The normal traveling speed is 20m/min, or 30m/min, 45m/min by request.

8. CD1 has only a normal speed which can satisfy Normal application.

9. MD1 provides two speeds: Normal speed and Low speed. It can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc at a low speed.

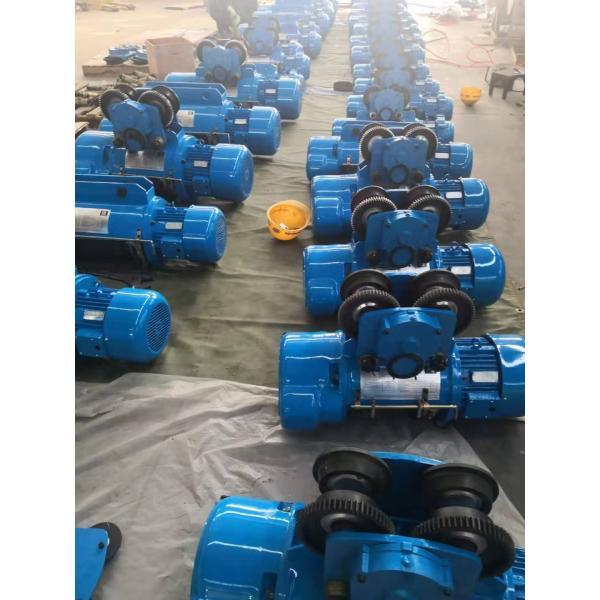

Product show:

Chongqing ShanYan Crane Machinery CO.,LTD was established in 1991 as a privately owned Chinese company and has developed into a highly respected specialist company with a strong reputation as innovators, manufacturers and distributors of hoisting machinery.

Our products are: JCYC brand electric wire rope hoists, electric chain hoists, manual chain hoists, Electric winch,bridge cranes, gantry cranes and jib cranes.

Our company has built the reputation for 20 years, acquired the SGS ISO 9001, CSA GS and CE certification, CE Mark and many other domestic crane and hoist certifications especially for the eighth Chinese National Foundation Award winning. These assured the continuing success of ShanYan crane to exceed the world standard as well as the pioneer in lifting equipments in the future.

Shanyan Crane continues to show steady growth both with its representation of overseas principles and in design and manufacturing of its own products - for example, electric wire rope hoists, chain blocks, overhead and gantry travelling cranes, lifting and hoisting attachments and jib cranes.

Our companys policy is excellent in engineering and continuing involvement with the advances in technology, Make our customer can be assured of Safety, Quality, and Efficiency!

Our goal is simple: to sell the best lifting equipment at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business , to help others achieve their goals.

For more detailed information on our lifting equipment, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
