| Categories | Carbide Bushing Sleeve Bearing |
|---|---|
| Brand Name: | ASEEDER |
| Model Number: | BEARING-01224 |
| Certification: | ISO9001,API, |
| Place of Origin: | CHINA |
| MOQ: | 5 pieces |
| Price: | Negotatioin |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pcs per month |
| Delivery Time: | 3-5 weeks depend on quantity |
| Packaging Details: | Aseeder standard packing or as customer's demand |
| Name: | Carbide Thin Wall Sleeve Bushing |
| Feature: | Wear resistance,Corrosion resistance |
| Application: | Oil industry,pump etc |
| Type: | Sleeve Bushing |
| Custom: | Yes |
| Size: | According to customer's requirement |
| Company Info. |
| SEED TECHNOLOGIES CORP., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

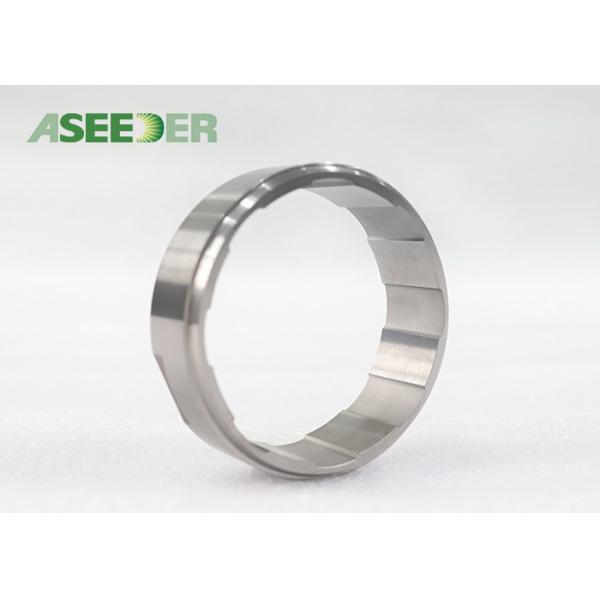

Custom Carbide Thin Wall Sleeve Bushing , Machining Tungsten Carbide Bearing
Carbide Thin Wall Sleeve Bushing Feature
1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's
application.
3. we have professional advanced production line and inspeciton
equipments to ensure high quality products.
4. Precision Ground and high polishing process
Grades, Properties and Recommended Applications of Cemented Carbide
ASEEDER Carbide have R&D Dept can help customer to develop new
grade as per special application.
| Aseeder Grade | Co (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Carbide Thin Wall Sleeve Bushing Details
| Type | Welcome all inquiries, requirements and customized,OEM,ODM orders | ||
| Processing | According to your drawing or picture or samples | ||
| Material | Stainaless steel,iron,Aluminum,copper,CRS, | ||
| Tolerance | As drawing request | ||
| Surface treatment | Zn-plating,Ni-plating,Cr-plating,Black oxide,Sand blasting,anodzing, Hot-dip galvanizing, color zinc plating, powder coating, chemical oxidation, painting, electroplating, rust prevention | ||
| Logo | Laser carving or Oil injection (according to your logo file) | ||
| Samples | Acceptable. | ||
| Surface Roughness | As drawings | ||
| Usage | machinery, home appliances, electronic products, electric
appliances,stationery, computers, power switches , Medical Equipment etc.Oil and Gas
indurstry | ||
| Machining equipment | CNC machining center, grinding machine, milling machine, drilling machine,horizontal milling machine, chamfering machine, Metal Stamping ,CNC cutting machine etc. | ||
| Advantage | All the order can customize .Premium quality ,product with high precision. | ||
| Delivery | 5-10 days for samples .20-30 working days for mass productions. | ||
|
