| Categories | SFP Transceiver Module |
|---|---|
| Brand Name: | OPTFOCUS |
| Model Number: | OFS-OLT-ESPX20++ |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | USD 22~24 / piece |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 50000 pcs / month |
| Delivery Time: | 5-10 days, depend on the quantity |
| Packaging Details: | 10 piece / box |
| Product name: | EPON OLT SFP Transceiver |
| Fiber connector: | SC connector |
| Wavelength(nm): | TX 1310nm，RX 1490nm |
| Operation case temperature: | 0～+70℃ |
| Storage Temp.: | -40~+85℃ |
| Material: | Metal |
| Services: | OEM&ODM |
| Optical power: | 5.5-6.5dbm |
| Warranty: | 1 year |
| OEM: | Support |

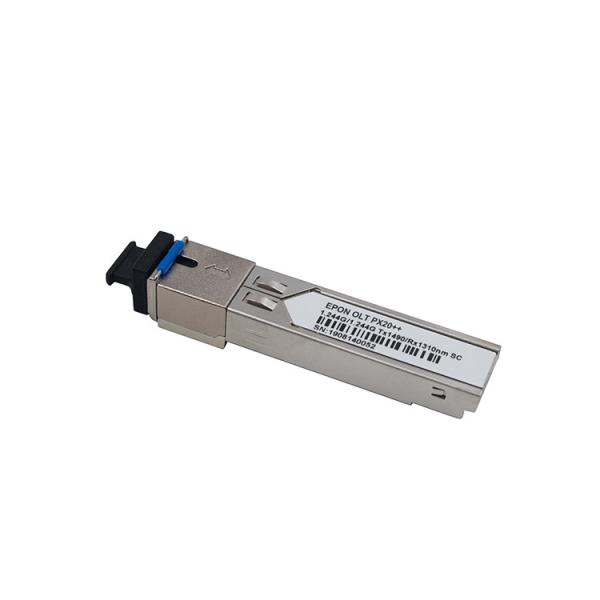

Optical transceiver EPON OLT SFP 1.25G 1310/1490nm 20km SC port EPON OLT PX20++ SFP transceiver PON Module
SFP Optical Transceiver Details
GEPON PX20++ SFP OLT Transceiver
SFP with SC/UPC Receptacle Transceiver
1490 nm DFB Tx
1310 nm APD Rx
Digital diagnostics SFF-8472 Compliant
1250 Mbps continuous mode Transmission
1250 Mbps Burst mode receiver Data Rate
Provide fast RSSI function
Operation case temperature: 0~70°C
Complies with RoHS directive (2002/95/EC)
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Case Temp. | TSTG | -40 | 85 | °C |
| Operating Case Temp. | TC | 0 | 70 | °C |
| Power Supply Voltage | VCC | 3.1 | 3.6 | V |
| Total Power Supply Current | ICC | - | 350 | Ma |
| Parameter | Symbol | Min. | Typ. | Max. | Units | Notes |
| Optical Transmitter Power | PO | 4.5 | 6 | 9 | dBm | 1 |
| Optical Transmitter Power off | POFF | - | - | -39 | dBm | |
| Output Center Wavelength | λ | 1480 | - | 1500 | nm | |
| Output Spectrum Width | △λ | - | - | 1.0 | nm | |
| Side Mode Suppression Ratio | SMSR | 30 | - | - | db | |
| Extinction Rato | ER | 9 | - | - | db | |
| Optical Rise Time | - | - | - | 260 | ps | |
| Optical Fall Time | - | - | - | 260 | ps | |
| Optical Eye Diagram | Compliant with IEEE Std 802 3ahTM-2004 | |||||
| Tolerence to Tx Back Reflection | - | -15 | - | - | db | |
| Data Rate | - | - | 1.25 | - | Gb/s | |
| Single Ended Data Input Voltage Swing | VPP | 200 | - | 1200 | Mv | |
| Differential Input Impedance | ZIN | 80 | 100 | 120 | ohm | |
| IX fault Output Voltage- High | VOH | 2.4 | - | - | V | |
| Ix fault Oulput Vollage-Low | VOL | - | - | 0.4 | V | |
| IX Dis Input Voltage. High | 20 | 2 | - | V | ||
| IX_Dis Input Voltage-Low | 08 | - | - | 0.8 | V | |
SFP Optical Transceiver Function Diagram
SFP Optical Transceiver Outline Drawing
SFP Optical Transceiver Packing:
Neatural packing:
10PCS/Plastic bag , 0.3KG/Plastic bag, 19*16*2CM
SFP Optical Transceiver Related products:
Payment Way:
SFP Optical Transceiver Certification
Company Information
Products Test Machine
Exhibition picture
SFP Optical Transceiver EPON OLT SFP 1.25G 1310/1490nm 20km SC port
EPON OLT PX20++ SFP transceiver PON Module
