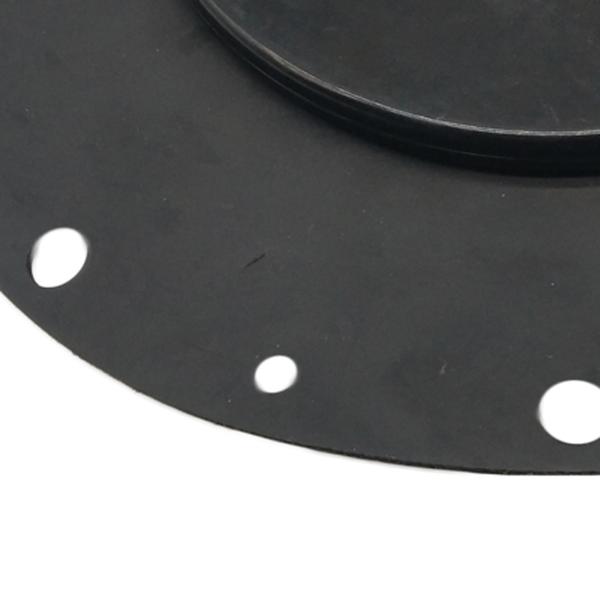

Nitrile / Buna Material ND102 Black Color 4 Inch CA/RCA 102 Repair Kit For Diaphragm Pneumatic Solenoid Valve

K10200 K10203 K10201 4 Inch CA/RCA 102 Repair Kit Solenoid ValveDiaphragm Valve Pulse Valve

Diaphragm Features:

1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power. 2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity. 3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength. 4. Facbric-reinforced diaphragms advantages: *No leakage *No Lubrication * No Breakaway Force * No Friction * Functionality Over Wide Pressure Ranges * High Strength * Low Cost * Simple Design * Versatility 5. EPDM, FKM all available.

The diaphragm divides the electromagnetic pulse valve into two chambers, the front chamber and the rear chamber. When the compressed air is connected, the compressed air enters the rear chamber through the throttle hole, optitow optipow105 Alstom DC24V 0-6bar

The electric signal of the pulse controller makes the armature of the pulse valve move, the vent hole of the air chamber behind the valve opens, and the pressure of the air chamber behind the valve loses rapidly. The diaphragm moves backward and compressed air is injected through the valve output port. The pulse is on.

The electric signal of the pulse injection controller disappears, the armature of the electromagnetic pulse valve is reset, the vent hole of the rear air chamber is closed, the pressure of the rear air chamber is increased to make the diaphragm close to the valve outlet, and the electromagnetic pulse valve is in the "closed" state.

Deference number:

Dimension Diagram:

Detailed Images:

Youtube video of diaphragm videos:

Our Production:

Packing＆shipping

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
