Torsion Resistant Hyraulic 30M3 50 Tons Dump Semi Trailers

Categories Dump Semi Trailers
Brand Name: Genron
Model Number: GV08035
Certification: CCC , CQC , CNAS
Place of Origin: Shangdong , China
MOQ: 1 Unit
Price: $13,500.00-$21,000.00 / unit
Payment Terms: L/C, T/T
Supply Ability: 80 Units per Month
Delivery Time: 5-20 Work Days
Packaging Details: Nude Packing
Material: Steel
Suspension: Mechanical suspension/ America type
King pin: JOST 2.00 or 3.5 inch bolt-in king pin
Landing gear: JOST (D200T)or CHINA BRAND 28T
Axle: 3 axles, FUWA/HUAJING brand 13tons or 16tons per axles
Color: Customized
Dimension: 9200*2400*3200mm ( outside) 9000*2200*1500mm (work space )
Loading Capacity: 50T
Tire: 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
Rim: 9.00-22.5/8.00-20/8.5-20 China Brand
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

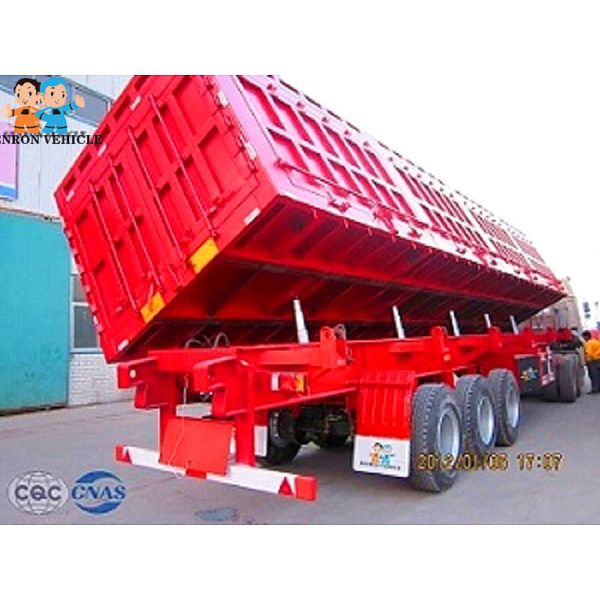

Torsion Resistant Hyraulic 30M3 50 Tons Dump Semi Trailers


Product Description


50 Tons Heavy Duty Side Tipper Semi Truck Trailer Delivery Stones Or Sands​


Main Dimensions
Dimension

9200*2400*3200mm ( outside)

9000*2200*1500mm (work space )

Tare weightAbout 10000KGS
Total Volume(m3)30 m³ or less than 50tons
Side wall thickness(mm)2.3mm Q235 steel (three or five door opening door )
Bottom plate thickness(mm)3mm diamond plate /Q235 steel
Lifting systemFull set of Hydraulic Lifting system (Four diameter125 lifting cylinder, and one diameter140 lifting cylinder.)
Chassis
Main BeamsHeight:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle3 axles, FUWA/HUAJING brand 13tons or 16tons per axles
Landing GearJOST (D200T)or CHINA BRAND 28T
King PinJOST 2.00 or 3.5 inch bolt-in king pin
SuspensionMechanical suspension/ America type /
Leaf Spring90(W)mm*13(Thickness)mm*10 Layer
Pneumatic Braking SystemWABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks.
Rim9.00-22.5/8.00-20/8.5-20 China Brand
Tire/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABSOptional
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
AccessoriesOne standard tool box
Shipping TermsBy Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .
E - Coating


Features of 50 Tons Heavy Duty Side Tipper Semi Truck Trailer


1. Excellent technology: the main parts are processed by advanced equipment, longitudinal beam and girder are welded by automatic submerged arc welding, and the axle and steel spring are accurately assembled by assembly machine.


2. Frame: the frame is a frame structure composed of longitudinal beam and reinforced cross beam welded by 16Mn automobile steel.


3. Axle: high quality axle produced by professional manufacturer is selected, which has strong bearing capacity and is not easy to deform;


4. Suspension system: adopt unique new suspension system with high strength and strong impact resistance .


5. Brake system: adopt safe and reliable circuit air brake system .


6. It can be designed separately according to the different needs of customers, or tell us that the medium of the goods you carry is different. We will design the corresponding model for you to meet the personalized needs of customers .


Details Of 50 Tons Heavy Duty Side Tipper Semi Truck Trailer



Our Service


1.Before Sale


Quotation:


We will gave you the matched product details configuration and drawing according to your market ,show you the best-selling model pictures and reasonable best price.


Reception & Accompany


After you accepted the offer price we have made to your company have the pre-interview ,you can come to visit our office and then go to visit factory ,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose ,we can arrange our professional technical checking your market together with you.


2.After Sale Service


We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy ‘Genron’ products.


We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.


We can go to your place to teach your team how to operate the trailer or our machines .


Certifications



FAQ


Q:Which semi trailer brand is best in China?


A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .The best expensive brand is CIMC ( this is government company ).Genron is private company ,we can supply low price in high quality .


Q: Can you satisfy my special requirement?


A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!


Q: How can I get your trailer?


A: I will shipping trailer to your port after you pay money


Q: What’s your payment terms?


A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .

2.L/C at sight .


Q: Can I paint my logo on trailer?


A: Of course, you can send me your company logo, then we will design it.


Q:How many cities have been exported ?


A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
