Equipment name | Handheld fiber laser welding machine |
Laser power | 500w/800w/1000w/1500w/
2000w/3000w |
Laser wavelength | 1080nm |
Fiber length | Stahdard10m,longest 15m |
Work type | Continuous/modulation |
Weld speed scope | 0-120mm/s |
Cooling type | Industrial constant temperature water tank |
Working temperature
range | 15~35 ℃ |
Working environment humidity range | < 70%No omission |
Recommended welding thickness | 0.5-3mm |
Weldinggap requirements | ≤0.5mm |
Operating Voltage | 220V 380v |

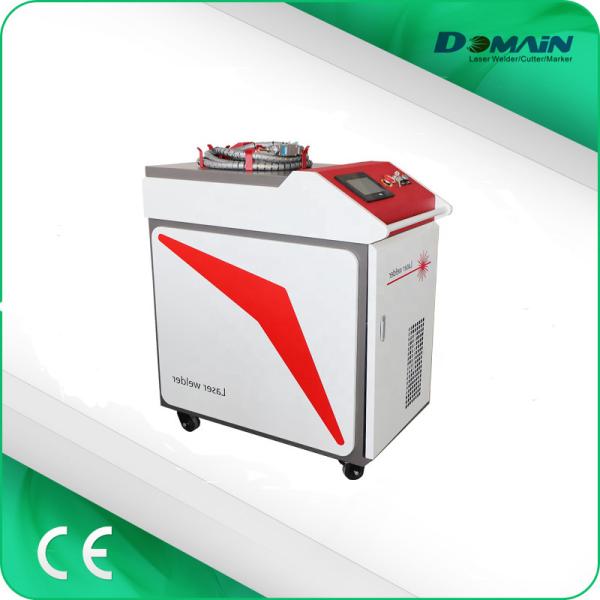

Using the latest generation fiber laser source and Independently
developed , HONG NIU hand-held laser welding machine Filled in the
blank of hand-held welding in laser equipment industry.
Its advantages are simple operation, welding seam beautiful, fast
welding speed
and no consumables. Welding in thin stainless steel plate, iron
plate, aluminum plate and other metal materials can perfectly
replace the traditional argon arc welding and electric welding
technology Application
This machine is suitable for welding of gold, silver, titanium,
nickel, tin, copper, aluminum and other metaland its alloy material, can achieve the same precision welding between
metal and dissimilar metals, hasbeen widely used in aerospace equipment, shipbuilding, instrumentation,
mechanical and electricalproducts, automotive and other industries.
Laser Welding Head
1. Wonderful interactive control system expands the tolerance range
of the machined partsnand the weld width, solves the disadvantage
of small spot size, and welds are better formed.
2. All-in-one design. Easy to control,and the operation is simple
and easy to use.
3. Beautiful weld seam, fast speed, no consumables, no weld marks,
no discoloration, no need for post-grinding.
4. Can be equipped with a variety of angle nozzles to meet the
welding needs of different products.
This welding machine can be used for complex and irregular welding
of metal equipment, stainless steel households and other
industries. The process of connecting, perfect replacement of
traditional argon arc welding, electric welding in the welding of
thin metal plates, iron plates, aluminum plates and other metal
materials.
