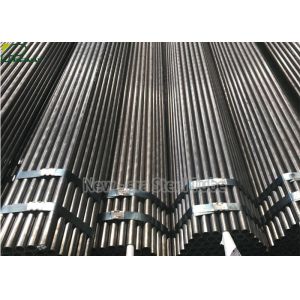

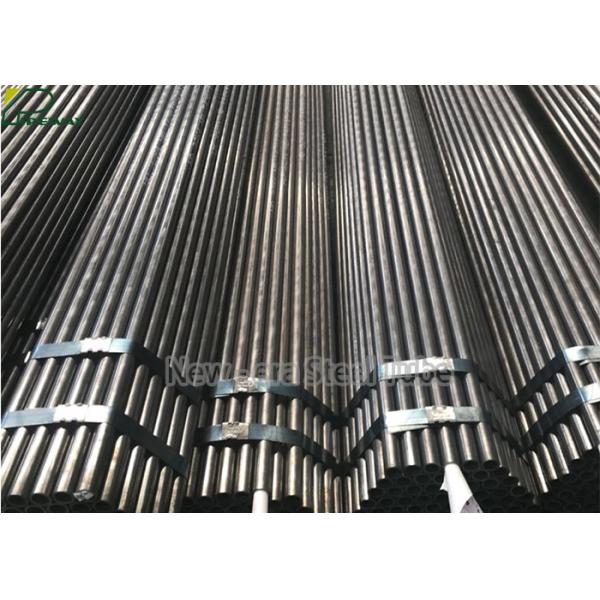

CDS Cold Drawn Seamless Steel Pipe

CDS Cold Drawn Seamless Steel Pipe

Outer diameter: 6mm -88mm

Wall thickness: 1-15mm

Material: St35, St45, St52, E235, E255, E355, 10#, 20#, Q345B, 16Mn. SAE1010, SAE1020

Material & Chemical Composition

Material Name	St35	St45	St52
chemical analysis	C: ≤0.17;Si: ≤0.35;Mn: ≥0.40;P: ≤0.025; S: ≤0.025;	C: ≤0.21;Si: ≤0.35;Mn: ≥0.40;P: ≤0.025; S: ≤0.025	C:≤0.22;Si: ≤0.55;Mn: ≤1.60;P: ≤0.025; S: ≤0.025
Tensile Strength	BK, ≥480MPa; BKW, ≥420MPa;BKS, ≥420MPa;GBK, ≥315MPa;NBK,340-470MPa	BK, ≥580MPa; BKW, ≥520MPa;BKS, ≥520MPa,GBK, ≥390MPa, NBK 440-570MPa	BK, ≥640MPa; BKW, ≥580MPa;BKS, ≥580MPa;GBK, ≥490MPa;NBK,490-630MPa
Yield strength	BKS, ≥315MPa; NBK, ≥235MPa	BKS,≥ 375MPa; NBK≥255MPa	BKS, ≥420MPa; NBK, ≥355MPa
Standard	DIN2391
Length	5-5.8M, 5.8M fixed length, or as customer's request
Packaging	Bundles Package, wooden box
Heat Treatment/ Delivery Condition	1.Cold finished (hard) BK(+C) Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation 2.Cold finished (soft) BKW(+LC) The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding) 3.Cold finished and stress-relieved annealing BKS(+SR) Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. 4.Annealed GBK(+A) The last Cold forming process is followed by annealing in a controlled atmosphere. 5.Normalized NBK(+N) The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.
Delivery Time	45 days
Payment Term	30% TT in advance, Balance to be paid before shipment
Usage/Application	Truck drag link, automotive parts
Surface	free of oxide scale, bright

Tags: Cold drawn steel pipe, steel pipe, precision steel pipe, Seamless steel pipe

Zhejiang New Era Steel Tube Technology Co., Ltd is one of the best seamless steel tube products manufacturer and exporter in china. Our main products include cold drawn and cold rolled seamless steel tubes .We can manufacture non-standard and special application tubes, also according to the international standards as well. Ningbo Pipeway Trade Co.,Ltd is our branch company for all internation business service for our company.

Our Production equipments including 16 cold drawing lines and 22 cold rolled machines:

We have full testing equipments for different kinds of testing for steel tubes:

Our products can produced as DIN,ASTM,ASME,EN,JIS,BS,GB,GOST,ISO etc international standard

Precision steel tubes:DIN2391 st52/A519 4130 4140 1026/EN10305-1 E355+N/EN10305-4 E235+N

Boiler steel tubes:ASTM A192/A179/A210 Gr.A/A213;DIN17175 st35.8/EN10216

Seamless Mechanical tubes: ASTM A519, EN10297-1/EN10210 S355J2H

Wire line Drill Rods:BQ,NQ,HQ,PQ XJY750,XJY850 4130+SR 1541

Oil and Gas line pipes:API 5L Grade B,A106 Gr.B,A53 Gr.B,API 5D

Stainless Steel tubes 304,304L,316,316L

Steel pipes and tube Size range:OD 4-300mm,Wt:0.5-30mm

We have 15 years experience of exporting steel tubes and steel pipes , main exporting to American, Europe, Asian, Australia, Africa .

We have cerficate of ISO9001,TS16949,TUV/PED for different market demand:
