| Categories | Water Tanker Fire Truck |
|---|---|
| Brand Name: | Jindun |
| Model Number: | PM120M |
| Certification: | ISO9001/CCC |
| Place of Origin: | SHANGHAI,CHINA |
| MOQ: | 1UNIT |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time: | 90days |
| Material: | Q235A steel |
| Flow: | 6000L/M |
| Impeller Material: | Gunmetal |
| Power: | 213KW |
| Priming time: | ≤80s |
| Manufacturer: | US HALE |
| Foam range: | ≥55m |
| water range: | ≥60m |
| Company Info. |
| Shanghai Jindun special vehicle Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

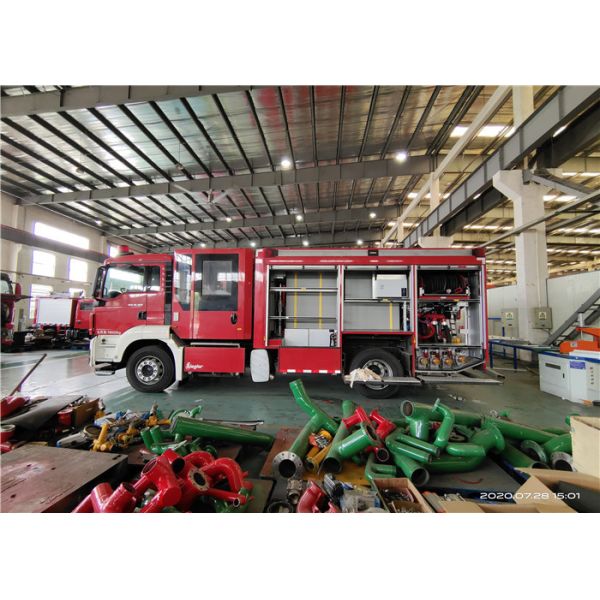

Foam Proportioner Water Tank Fire Truck Fire Engine Q235A Steel & Aluminum Alloy Plate
4X2 drive, Right Hand Drive
Chassis weight: 5645Kg
Full total mass: 17600Kg
Drive Type: 4 × 2
| Side girder | Structure characteristics: Uses the high quality steel welded together, between the two longitudinal beams, there are several beam connects to the longitudinal beams with equal strength. The side girder connect to installation parts with high strength bolt, ensure the original car girder stability and power equality, improve the service life of the girder, reduced the possibility of the distortion of the installation parts caused by the deformation. |
| Equipment box and pump room | Material: Q235A steel & aluminum alloy. Structure: Welded, the join-structure,skinned,bottom plate and interior plate adopts the anodized LF2 rust-prevention flat aluminum plate. The door of equipment box and pump room: Using lightweight high quality aluminum alloy,with shutter,lightweight and reliable,the back door of the pump room adopts flap-up door for shading the weather and preventing falling objects. internal structure:Inner frame adopts aluminum lap technology,to farthest improve space utilization and variability, equipment box can be configured all kinds of sliding brackets and the dragging plates, etc.,according to the requirements of customers for convenient accessing. |
| Pedal plate | Location: At the bottom of the shutter. Material: Steel frame covered by aluminum alloy decorative pattern plate Structure: Adopt the gas springs plus shutter fasten, safe and Reliable, each petal plate bearing ≥150Kg. |
Equipment layout principles
1, According to combat programming and combat development design
equipment integration
2, According to human body engineering principle design all kinds of equipment frames.
3, According to using logic and frequency of use place equipment
4, 1-2 action can take any equipment standing on the ground or pedal
5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.
|
