Helipad Landing Lights bidirectional light Runway Center line lights Green/Green Green/Red Heliport Lighting

Application

Helipad/Heliport Runway Light

Heliport Taxiway Lighting

Electrical features

LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light

Power supply available in AC(110-240VAC), DC48V

Physical Features

Pressure resistance lens allowed the vehicles go through on light

Die-casting aluminum covered by black hard anodizing layer have good corrosion protection and load bearing

lP68 waterproof ensure light work fine underground

Emitting light in two opposite sides

Optional Function

Infrared LED for pilot using NVG(Night Vision Goggles)

Controller for power supplying and turn ON/OFF light

VHF pilot to ground remote control

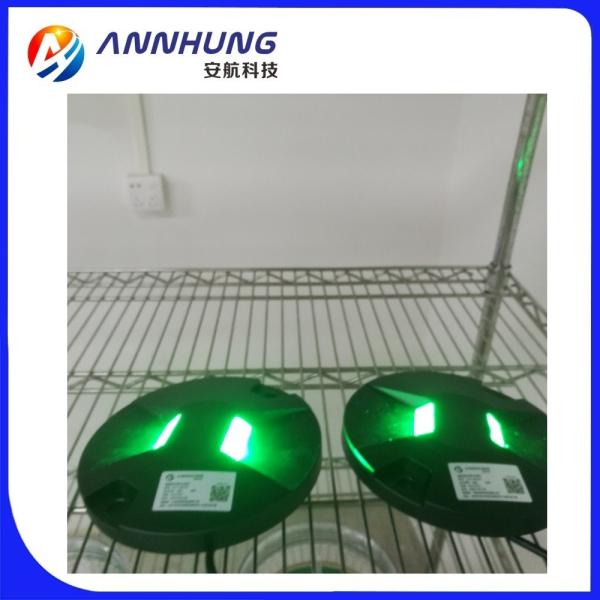

Heliport Inset bidirectional light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.

It could be used as Center Line Light, Runway Threshold/End Light, Runway Edge Lighting etc. The emitting color is green/green or yellow/red or yellow/green or red/green.

Datasheet download: download AH-HP-C Heliport Inset bidirectional Ligh...

Compan After-sales service:

Ø Warranty conditions for products manufactured by ANNHUNG

1) Light: The period of warranty shall start from the date of delivery of the product to the customer and shall cover a period of 1(One) year.

2) Every and all parts of the product are under ANNHUNG warranty coverage. (against any defect that may occur during production, assembly and/or defective parts)

3) Free repair and product replacement obligations will be annulled under the following conditions:

a) If the product becomes faulty due to use contrary to the terms or conditions stated in the user guide,

b) If the product has been opened, used, or previously repaired by unauthorized persons,

c) Use of the product by plugging into inappropriate voltages or with faulty electric installation without the prior knowledge of our authorized services,

d) If the product serial number has been altered or removed,

e) Those damages caused by natural disasters such as fire, flood, earthquake, severe lightning strike etc.

Ø Process of warranty replacements/repair:

ANNHUNG will supply replacement/repair to site within 6 weeks since from the customer inform for warranty replacements/repair.
Time schedule of warranty replacements/repair:

Ø Replacements/repair

ANNHUNG supply paid replacements/repair service after warranty.

Anhang Technology is a Specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City,China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE,ICAO,FAA,CAAC,IALA,ROHS,ISO9001, ISO14001, ISO 45001etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), FAA(Federal Aviation Administration)CAAC(Civil Aviation Administration of China).All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we've got 42+ patent certificates.

Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technology like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.

Our products are covered by a lifetime warranty. If the product ever fail in any way, we will repair or replace the item for as long as you own the product.

Anhang Technology’s Mission:

All for Safe Flight

We are trying our best to supply standard and good quality aviation obstruction light, helipad lighting, solar airfield lights, marine navigation

lanterns to better help navigation on aircraft flight area, helicopter landing district and sea channel and to make our life more safe.

Our Core Values

Innovative,Customer,Teamwork,Quality,Distribution, Pragmatic

Vision

Let our company become the leader in all over the world in making navigation light and technology
