| Categories | Road Sweeper Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW50749uv |
| Certification: | CCC,ISO,BV,SGS |
| Place of Origin: | Suizhou,China |
| MOQ: | 1 UNIT |
| Price: | negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 units per month |
| Delivery Time: | 30-35days after received advance payments |
| Packaging Details: | Naked packing |
| Truck Chassis: | Shacman,Dongfeng,JAC,JMC,ISUZU,HOWO |
| Material: | Stainless steel |
| Sweeping Width: | 3.5 meters |
| Fan: | Maintenance Free |
| rear Warning Light: | yes |
| Brushes: | 2 units |
| Operating Manual: | yes |
| Operating Video: | yes |
| Usage: | City Sanitation |
| Color: | Customized LOGO painting as per customer request |
| Warranty: | 1 year |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

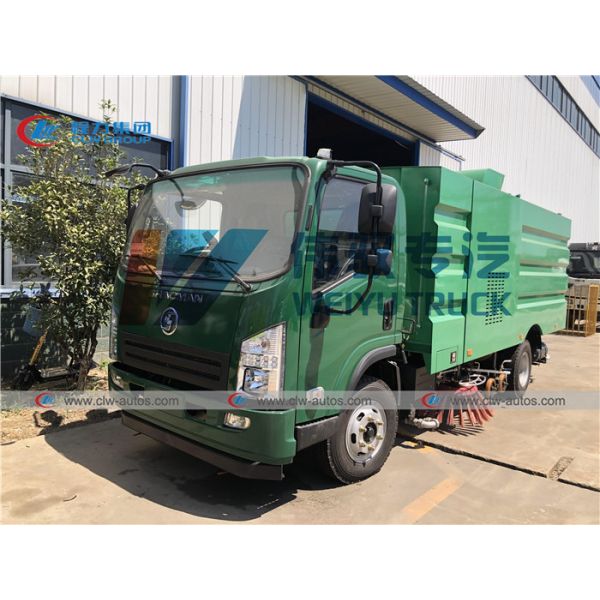

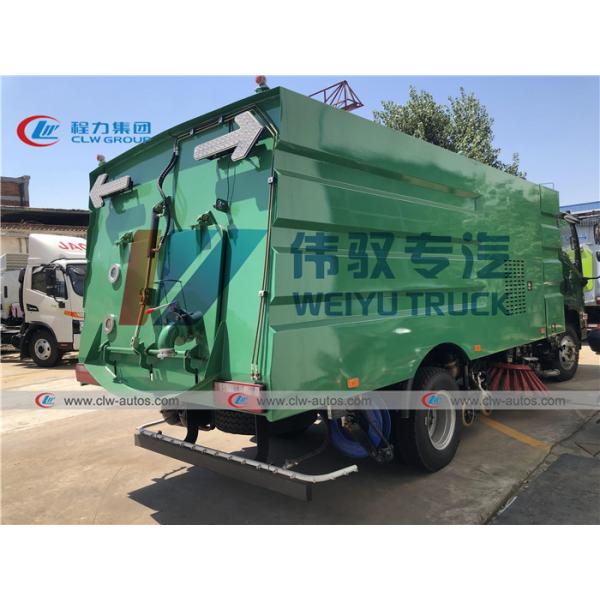

Shacman 6cbm Street Cleaning Water Sprinkler Dust Suction Road Sweeper Truck
Product Description
This equipment is made from our company according to many years of road maintenance construction experience, and combined with the actual needs of customers.It is a kind of vacuuming equipment independently developed and produced for minor repair and maintenance construction of irrigation joints and pits.The utility model has the characteristics of simple operation, high dust absorption efficiency and continuous operation.Widely used in municipal, highway, national and provincial arterial road construction dust, particle recovery operations.
| Dongfeng Truck Chassis | |||||
| Condition | New condition/Right hand drive/4x2 | ||||
| Chassis | Brand | Shacman | |||
| Curb weight(kg) | 4460 kg | ||||
| Wheelbase(mm) | 3815 mm | ||||
| Dimensions(mm) | 7180 x 2260 x 2680 mm | ||||
| Wheel track (front/rear) (mm) | 1504/1425 | ||||
| Approach/Departure angle(°) | 24/13 | ||||
| Axle Load(kg) | 5280/4720 | ||||
| Max. driving speed(km/h) | 90 km/h | ||||
| Tire | Specifications | 6pcs with one spare tire | |||
| Number | 8.25-16 | ||||
| Clutch | Reinforced diaphragm clutch | ||||
| Gear box | Manual type, 6 Forwards & 1 Reverse | ||||
| Cabin | Left Hand Driving, 3 Passenger Allowed | ||||
| Engine | Model | Diesel Engine, 4 Cylinders | |||
| Power(kw)/Horsepower(HP) | 103 kw/140 HP | ||||
| Emission standard | Euro IV | ||||
| Brakes | Service brake: dual circuit compressed air brake Parking
brake:(emergency brake): spring energy, compressed air operating on
rear wheels Auxiliary brake: engine exhaust valve brake | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||

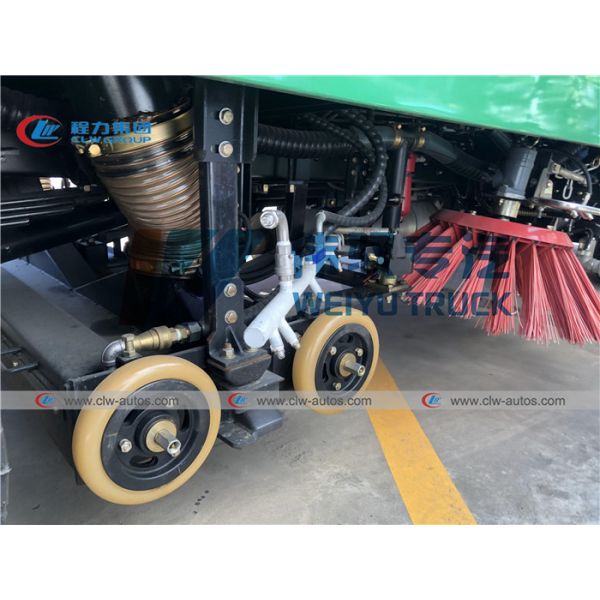

| Sweeping System | |||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(cbm) | 4 CBM | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(cbm) | 2 CBM | ||||
| Auxiliary engine | Model | ISUZU | |||
| Power(kw) | 102 kw/140HP | ||||
| Brush | Quantity(pc) | 2 pcs | |||
| Working area(m) | 2.7-3.2 m | ||||
| Cleaning | High pressure reel | 18 meters | |||
| Remarks | 1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements. | ||||
Details
Sales Service
①Pre-sales Service: Communicate with customers, analyze their
needs.
②Sales Service: Provide professional technical solutions, recommend
the right models accordingly.
③After-sales Service: For different products, we can quote the EXW,
FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Sweeper Truck products I can order from your company?
A: We can supply all kinds of sweeper trucks, Vacuum sweeper truck, High pressure road sweeper truck, Normal road sweeper etc.
Q2: What is your production standard of Sweeper Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU Sweeper Truck is produced as per China GB local standard; We can't export CBU Sweeper Truck to those countries, but we can export super structure to those market, we exported 50 units Sweeper Truck to USA market at the beginning of 2017.
Q3: Have you supplied to Sweeper Truck any renowned companies?
A: Our group company is a regular strategic partner of some big government department and waste treatment company. We have supplied many different type Sweeper Truck for them with different chassis brand.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our
overseas marketing office in Wuhan. From Shanghai to WUhan is only
2 hours by airplane. Warmly welcome you to visit us in near future!
|
