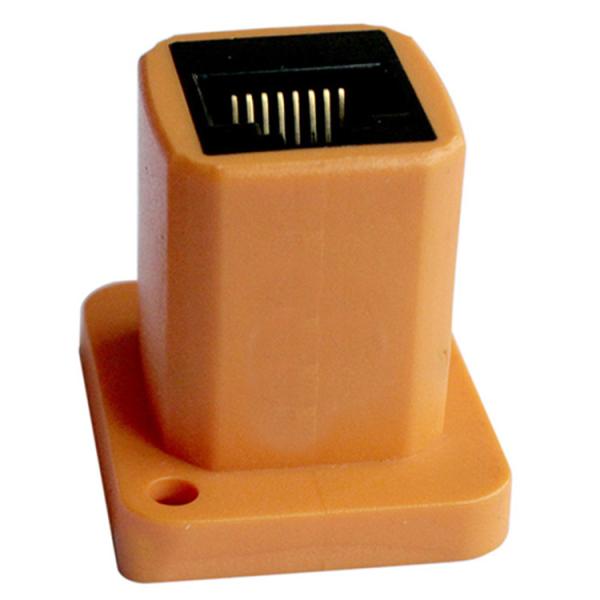

125V Female To Female 8P8C RJ45 Network Connector

RJ45 Female To Female Coupler 8P8C Network Connector Extension 125 Voltage

Materials:

 CONNECTOR :
 Housing:PBT,BLACK,UL94V-0
 Contact material:OD=0.3*0.4mm flat needle nickel plating, tin plating, contact area gold plating( RoHS )
 Gold plating:6u” Optional
 Shielding Shell: NO
 Shell: PVC Black UL94V-0(RoHS)
 All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:

 RJ45 Modular Jack
 1 x 1 Port / Single Port / One Port
 RJ45 Connector Length: 33 mm
 RJ45 Connector Width: 26 mm
 RJ45 Connector Height: 31 mm
 RJ45 Connector Lock hole spacing: 19*24 mm
 8P8C ( 8 positions 8 contacts )
 90°Orientation
 Without LED, let know the connection status
 Without Shield,can be customized as required
 We Support Custom service as required

RJ45 Without Transformer (TMZJT020021) Attributes:

RJ45 Female Connector ( TMZJT020020) Mechnical Drawing:
