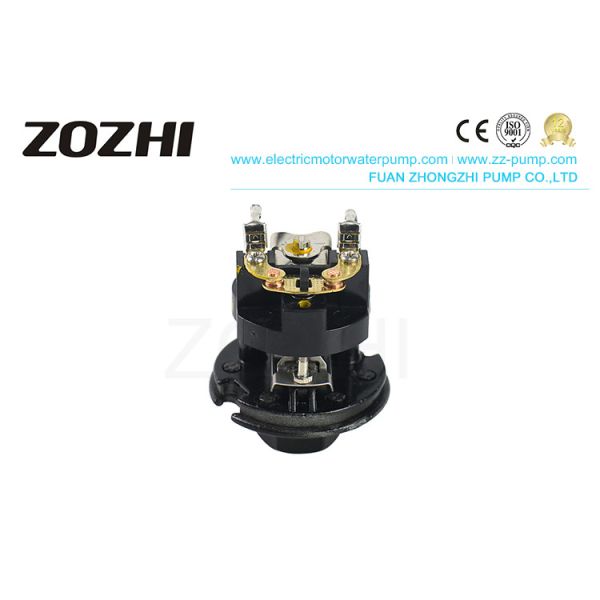

1/4" Male Thread 45PSI 10A Electric Water Transfer Pump

1/4" Male Thread 45PSI 10A Electric Water Transfer Pump

Electric Motor Water Pump Maximum current: 10A / 5A

Electric Motor Water Pump Pressure setting: 1.1-1.8 Bar

Electric Motor Water Pump Pressure range: 0.8-3.5 bar

Connection thread: ZG1/4 '' G1/4 '' G3/8 "

Interface thread:

1 / 4 '' Male Thread (1.1-1.8) 13 mm
1 / 4 '' Inner Thread (1.1-1.8) 12 mm
3 / 8 " Inner Thread (1.1-1.8) 15.5 mm

Low pressure 1.1kg/cm², high point pressure 1.8kg/cm²

The initial state of the pressure switch is "on," and only to reach a high point (1.8kg/cm² or more), pressure will be a disconnect.
When the pressure in the line is released to the switch, low pressure (1.1kg / cm² below) will be reconnected. The pressure reaches a high point (1.8 kg/cm ² above), the pressure will be a disconnect, so repeat the work cycle.

Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
