| Brand Name: | LTPM CHINA |
| Model Number: | LTRG-100A |
| Certification: | CE/ISO/GMP |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | USD42,000.00/Set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Packaging Details: | Wooden case with strong seaworthy packing suitable for exporting |
| Main Machine Landing Area: | 3m2 |
| Working Area: | 2.5㎡ |
| Whole Machine: | 2.5*1.2*2.4M(L×W×H) |
| Case Body Material: | 304 |
| Main Motor: | Main Motor |
| Operation Speed: | 60-75 |
| Filling Range: | Plastic tube 3-240ml |
| Suitable Tube Length: | 210mm |
| Suitable Tube Diameter: | 12.5-50mm |
| Working Pressure: | 0.5-0.6MPa |
| Filling Material: | Ointment,Cream,Glue,Oil,etc. |
| Company Info. |
| Leadtop Pharmaceutical Machinery |
| View Contact Details |
| Product List |
Product Specify

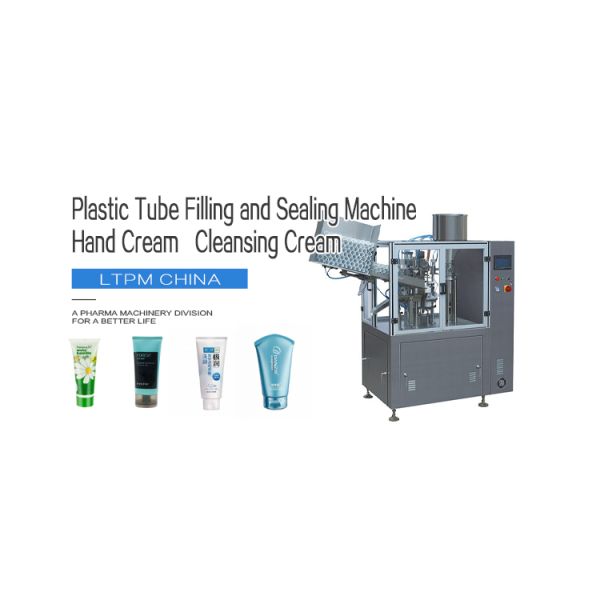

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
Main technical parameters
| |||||
| Case Body Material | 304 | ||||
| Opening Mode of Safety Guard | Handle Door | ||||
| Safety Guard Material | Organic Glass | ||||
| Frame Below Platform | Stainless Steel | ||||
| Case Body Shape | Square-shape | ||||
| |||||
| Power Supply | 50Hz/380V 3P | ||||
| Main Motor | 1.5KW | ||||
| Hot Air Generator | 3KW | ||||
| Jacket barrel heating power | 3 KW | Optional,needs extra cost | |||
| Jacket barrel blending power | 0.18 KW | Optional,needs extra cost | |||
| |||||
| Operation Speed | 60-75/min/max | ||||
| Filling Range | Plastic tube 3-240ml | ||||
| Suitable Tube Length | 210mm | ||||
| Suitable Tube Diameter | 12.5-50mm | ||||

Features:
1. Automatic filling of liquid or paste, sealing tubes, batch
number printing, include manufacture date.
Machine Specific Photo:
Tube feeding

Print Registering and Filling(Plastic Tube):

Aluminum Tube:Sealing

The product we packed:
