| Categories | OPGW Suspension Clamp |
|---|---|
| Brand Name: | HLLP |
| Model Number: | OXY 0000 |
| Place of Origin: | CHENGDU CHINA |
| MOQ: | 100 sets |
| Price: | US$ 3-30 per set |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100000 sets per month |
| Delivery Time: | 10-20 days |
| Packaging Details: | Carton pallets,wooden cases, or as required by customer |
| Material: | Aluminum Alloy |
| Grip strenth: | not less than 18% RTS of OPGW |
| Sandard: | GB,or according to customer requirement |
| Customized products: | yes |
| Company Info. |
| Chengdu Helical Line Products Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
OPGW Suspension clamp
OPGW Suspension clamp is intended for use on OPGW.The product is designed as a combination of two layer of preformed rods to reduce the static and dynamic stresses at the support point,the fatigue resistance of OPGW is greatly improved.Double support suspension products are available.During installation,care should be taken to ensure a successful installation.This product is intended for use by trained craftspeople only.

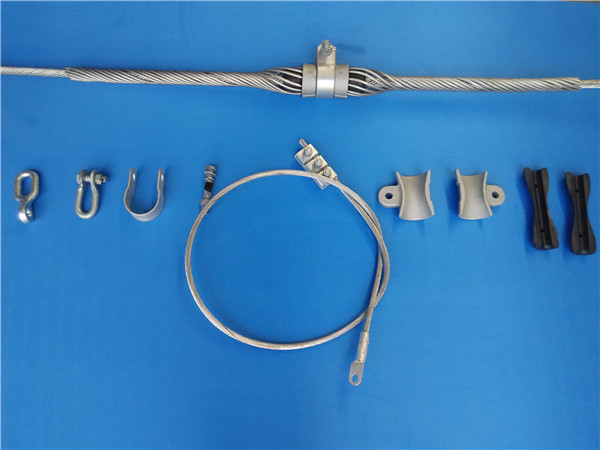

OPGW Suspension clamp consists of the following parts:
1,Structural Reinforing Rods, material:Aluminum Alloy.
2,Out Rods material:Aluminum Alloy.
2,Housing, material:High-Strength Aluminum Alloy.
3,Insert. material:EPDM rubber, aluminum alloy reinforcement .
4,U clamp, material:High-Strength Aluminum Alloy.
5,Bolt. material:Galvanized Steel.
| Model | Available | Length of Reinforcing Rods | Length of Outer Rods | Weight of single set(kg) | Weight of Double set(kg) | Color | |||
| Single set | Double set | Diameter of OPGW (mm) | Single set(mm) | Double set (mm) | Single set(mm) | Double set (mm) | |||
| OXY 0800 | OXS 0800 | 7.4-8.0 | 1650 | 2100 | 1100 | 1600 | 1.27 | 1.77 | Blue |
| OXY 0880 | OXS 0880 | 8.1-8.8 | 1650 | 2100 | 1100 | 1600 | 1.37 | 1.91 | Green |
| OXY 0960 | OXS 0960 | 8.9-9.6 | 1690 | 2200 | 1140 | 1600 | 1.49 | 2.03 | Yellow |
| OXY 1010 | OXS 1010 | 9.7-10.1 | 1690 | 2200 | 1140 | 1600 | 1.49 | 2.03 | Black |
| OXY 1060 | OXS 1060 | 10.2-10.6 | 1690 | 2200 | 1140 | 1600 | 1.56 | 2.12 | White |
| OXY 1110 | OXS 1110 | 10.7-11.1 | 1720 | 2200 | 1140 | 1600 | 1.57 | 2.12 | Red |
| OXY 1160 | OXS 1160 | 11.2-11.6 | 1760 | 2200 | 1180 | 1600 | 1.72 | 2.27 | Blue |
| OXY 1170 | OXS 1170 | 11.7-11.7 | 1840 | 2300 | 1240 | 1700 | 1.88 | 2.49 | Green |
| OXY 1200 | OXS 1200 | 11.8-12.0 | 1840 | 2300 | 1240 | 1700 | 1.88 | 2.49 | Yellow |
| OXY 1270 | OXS 1270 | 12.1-12.7 | 1860 | 2300 | 1240 | 1700 | 1.89 | 2.49 | Black |
| OXY 1290 | OXS 1290 | 12.8-12.9 | 1960 | 2400 | 1240 | 1700 | 2.12 | 2.78 | White |
| OXY 1360 | OXS 1360 | 13.0-13.6 | 1960 | 2400 | 1320 | 1800 | 2.2 | 2.89 | Red |
| OXY 1410 | OXS 1410 | 13.7-14.1 | 2000 | 2400 | 1320 | 1800 | 2.22 | 2.89 | Blue |
| OXY 1430 | OXS 1430 | 14.2-14.3 | 2000 | 2400 | 1320 | 1800 | 2.22 | 2.89 | Green |
| OXY 1450 | OXS 1450 | 14.4-14.5 | 2120 | 2600 | 1440 | 2000 | 2.61 | 3.46 | Yellow |
| OXY 1510 | OXS 1510 | 14.6-15.1 | 2120 | 2600 | 1440 | 2000 | 2.62 | 3.46 | Black |
| OXY 1580 | OXS 1580 | 15.2-15.8 | 2180 | 2600 | 1440 | 2000 | 2.65 | 3.46 | White |
| OXY 1600 | OXS 1600 | 15.9-16.0 | 2400 | 3100 | 1620 | 2400 | 3.05 | 4.27 | Red |
| OXY 1690 | OXS 1690 | 16.1-16.9 | 2400 | 3100 | 1620 | 2400 | 3.05 | 4.27 | Blue |
| OXY 1730 | OXS 1730 | 17.0-17.3 | 2400 | 3100 | 1620 | 2400 | 3.2 | 4.49 | Green |
| OXY 1800 | OXS 1800 | 17.4-18.0 | 2400 | 3100 | 1620 | 2400 | 3.3 | 4.62 | Yellow |
| OXY 1840 | OXS 1840 | 18.1-18.4 | 2400 | 3100 | 1620 | 2400 | 3.3 | 4.62 | Black |
| OXY 1880 | OXS 1880 | 18.5-18.8 | 2400 | 3100 | 1620 | 2400 | 3.55 | 4.97 | White |
| OXY 1890 | OXS 1890 | 18.9-18.9 | 2400 | 3100 | 1620 | 2400 | 3.55 | 4.97 | Red |
| OXY 1990 | OXS 1990 | 19.0-19.9 | 2400 | 3100 | 1620 | 2400 | 3.55 | 4.97 | Blue |
Slip load:not less 18% RTS of the OPGW.
Products can be customized according to customer requirements
|
