120 Mesh Sugar Grinding 20kg/H Powder Milling Machine

Categories Powder Milling Machine
Brand Name: Brightsail
Model Number: BSU
Certification: CE ISO
Place of Origin: China
MOQ: one set
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Delivery Time: 25-30 days
Packaging Details: wooden case or container
Product name: Crystal sugar powder milling machine white brown icing sugar grinding mill
Material: SS304/316
Feed size: <10mm
Output size: 10-120 mesh
Capacity: 20-800kg/h
Voltage: 220-480 v
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

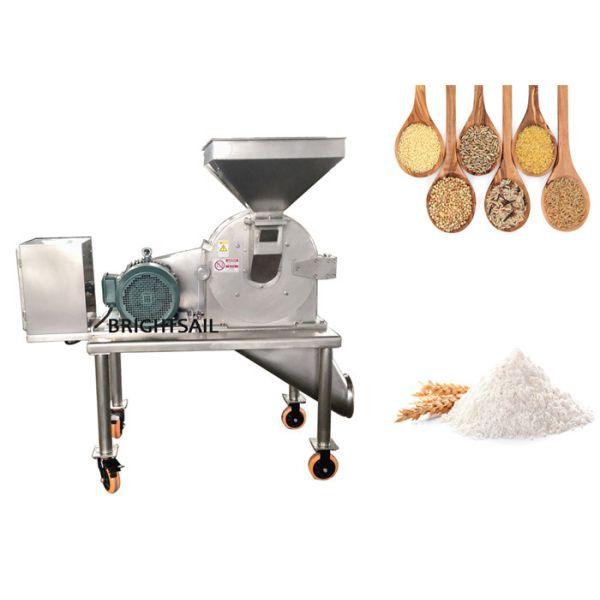

120 Mesh Sugar Grinding 20kg/H Powder Milling Machine

10 - 120 mesh Powder Milling Machine / Sugar Grinding Mill


Principle:
The machine uses the high speed rotating cutters and the fixed cutters to crush and shear raw materials, which is accompanied by strong airflow inside of the mill chamber to bring out the finished products through the screen. The size of granules can be achieved by changing of the screen. Its fineness can be adjusted from 10-120 mesh.

Technical data:

ModelBSU-20BSU-30BSU-40BSU-60
Capacity(kg/h)20-15030-30050-400100-800
Size of input granules(mm)<6<10<10<10
Size of output granules(mesh)20-12020-12020-12020-120
Power(kw)47.51122
Speed of principal axis(rpm)4650380034002800
Overall size(L*W*H)(mm)650*820*1500700*900*1650750*1000*1750950*1250*2150
Weight(kg)230330430

900


Powder grinding machine Application

1. All kinds of grains: sesame, walnut, rice, black rice, soybean, mung bean, red bean, peanut, lotus seed, corn, sorghum, barley, buckwheat, oat, etc;
2.Spice: chili, pepper, nutmeg, cinnamon, anise, basil, Cardamom, Clove, Coriander, Cumin, Mint, Mustard, Parsley,Rosemary, Turmeric etc.
3. Dry medical materials: Chinese yam, almond, poria cocos, red dates, gorgon fruit, wolfberry, CoixSeed, hawthorn, fleece-flower root, red bean, donkey-hide gelatin, frankincense, dodder, angelica sinensis, radix codonopsis, etc;
4. Other materials: ordinary chemical materials, etc.

Powder grinding machine Features

1. Wide application and large handling capacity.
2. Simple and compact construction; smooth and steady running.
3. The material grinding process is fast and reliable, grinding fitness is adjustable.
4. The surface of the multifunctional grinding machine is smooth, easy to clean.
