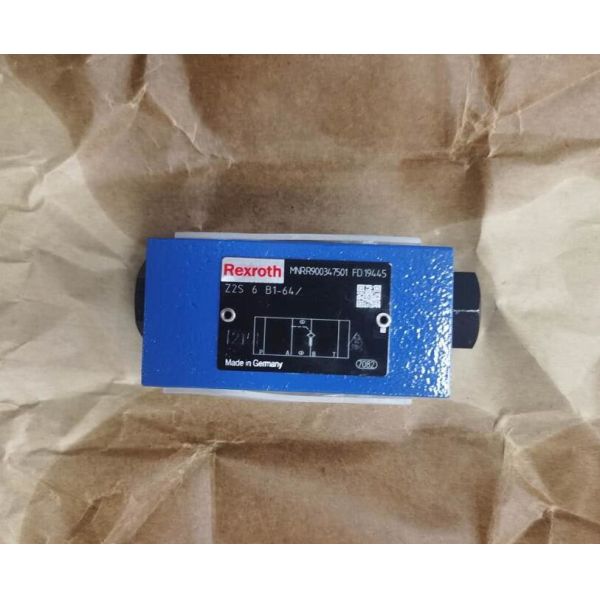

Check valves, pilot operated Z2S6
Size 6
Component series 6X
Maximum operating pressure 315 bar
Maximum flow 60 l/min
Features
– Sandwich plate valve for use in vertical stackings
– Porting pattern according to DIN 24340 form A (without
loSAARing hole) (standard)
– Porting pattern according to ISO 4401-03-02-0-05 and
NFPA T3.5.1 R2-2002 D03 (with loSAARing hole)
– For the leak-free blocking of one or two actuator ports,
optionally
– Different cracking pressures
– With pre-opening optional
– Check valve installation sets separately available
– Special versions upon request
– Amending documentation:
• "Sandwich plates size 6", data sheet 48050
• "Hydraulic fluids on a mineral oil basis", data sheet 90220
Type Code:
| 01 | 02 | 03 | 04 | | 05 | | 06 | 07 | 08 | 09 | 10 |
| Z2S | 6 | | | – | 6X | / | | | | | * |
| 01 | Check valve, Sandwich plate design | Z2S |
| 02 | Size 6 | 6 |
| Leakage-free blocking |
| 03 | In channel A and B | – |
| In channel A | A |
| In channel B | B |
| Cracking pressure |
| 04 | 1,5 bar | 1 |
| 3 bar | 2 |
| 6 bar | 3 |
| 05 | Component series 60 … 69 (60 … 69: unchanged installation and
connection dimensions) | 6X |
| 06 | Surface without corrosion resistance 1) | no code |
| Seal material |
| 07 | NBR seals | no code |
| FKM seals | V |
| The selection is dependent on the operating parameters (hydraulic
fluid, temperature, etc.)! | |
| LoSAARing hole |
| 08 | | no code |
| With loSAARing hole | /60 |
With loSAARing hole and locking pin ISO 8752-3x8-St 2) | /62 |
| Special version |
| 09 | Without special version | no code |
| Control open by external port G1/4 (only version "A" and "B") | SO40 |
| With pre-opening | SO55 |
| Control spool unloaded to port T | SO60 |
| With pre-opening and control open from channel P | SO150 |
| Symbols (examples) see "Symbols/Circuit diagrams" | |
| 10 | Further details in the plain text | * |
SAAR specialized in pumps, motors, valves, bearings, couplings,
gearbox, engine spare parts, filter elements, fittings, connectors,
electronic components and accessories, mobile equiupment spare
parts.
Rexroth Check valves, pilot operated Z2S6 Model List:
| R900347495 | Z2S6-1-6X/ |
| R901129841 | Z2S6-1-6X//60 |
| R900727969 | Z2S6-1-6X//62 |
| R901107049 | Z2S6-1-6X//62 |
| R901052079 | Z2S6-1-6X/=TA |
| R900376034 | Z2S6-1-6X/J |
| R901426713 | Z2S6-1-6X/J3 |
| R901259432 | Z2S6-1-6X/J50 |
| R900508098 | Z2S6-1-6X/JV |
| R901402145 | Z2S6-1-6X/SO150 |
| R900347504 | Z2S6-1-6X/V |
| R901374869 | Z2S6-1-6X/V/60 |
| R901429695 | Z2S6-1-6X/V/60J3 |
| R900747681 | Z2S6-1-6X/V/62 |
| R901426712 | Z2S6-1-6X/VJ3 |
| R900072644 | Z2S6-1-6X= |
| R901408551 | Z2S6-1-6X=V/60 |
| R900347496 | Z2S6-2-6X/ |
| R901154311 | Z2S6-2-6X//62 |
| R900068376 | Z2S6-2-6X/=LB |
| R900483209 | Z2S6-2-6X/J |
| R900521458 | Z2S6-2-6X/JV |
| R900504839 | Z2S6-2-6X/SO26 |
| R900347505 | Z2S6-2-6X/V |
| R901263932 | Z2S6-2-6X/V/62 |
| R901436568 | Z2S6-2-6X/VJ3 |
| R901286324 | Z2S6-2-6X/VJ50 |
| R901030535 | Z2S6-2-6X/XCV |
| R900072794 | Z2S6-2-6X=V |
| R900347497 | Z2S6-3-6X/ |
| R901052128 | Z2S6-3-6X/=TA |
| R900458250 | Z2S6-3-6X/J |
| R900953976 | Z2S6-3-6X/J |
| R900347506 | Z2S6-3-6X/V |
| R900950210 | Z2S6-4-6X/ |
| R901124299 | Z2S6-4-6X/V |
| R900347498 | Z2S6A1-6X/ |
| R901107246 | Z2S6A1-6X//62 |
| R901268716 | Z2S6A1-6X/60 |
| R900375981 | Z2S6A1-6X/J |
| R900581522 | Z2S6A1-6X/JV |
| R900473528 | Z2S6A1-6X/SO56 |
| R900347507 | Z2S6A1-6X/V |
| R901170210 | Z2S6A1-6X/V/60 |
| R901126655 | Z2S6A1-6X/V/62 |
| R900347499 | Z2S6A2-6X/ |
| R900739494 | Z2S6A2-6X//62 |
| R900786910 | Z2S6A2-6X/J |
| R900347508 | Z2S6A2-6X/V |
| R901426710 | Z2S6A2-6X/VJ3 |
| R901286325 | Z2S6A2-6X/VJ50 |
| R901030539 | Z2S6A2-6X/XCV |
| R900347500 | Z2S6A3-6X/ |
| R900595234 | Z2S6A3-6X/J |
| R900347509 | Z2S6A3-6X/V |
| R900347501 | Z2S6B1-6X/ |
| R901254993 | Z2S6B1-6X//60 |
| R901107241 | Z2S6B1-6X//62 |
| R900395133 | Z2S6B1-6X/J |
| R900372460 | Z2S6B1-6X/SO111 |
| R901437169 | Z2S6B1-6X/SO150 |
| R901239412 | Z2S6B1-6X/SO710 |
| R900347510 | Z2S6B1-6X/V |
| R901149420 | Z2S6B1-6X/V/62 |
| R901426711 | Z2S6B1-6X/VJ3 |
| R901288118 | Z2S6B1-6X/VJ50 |
| R900702167 | Z2S6B1-6X= |
| R900347502 | Z2S6B2-6X/ |
| R900782456 | Z2S6B2-6X/J |
| R900438365 | Z2S6B2-6X/SO62 |
| R900347511 | Z2S6B2-6X/V |
| R900347503 | Z2S6B3-6X/ |
| R900595233 | Z2S6B3-6X/J |
| R900347512 | Z2S6B3-6X/V |
