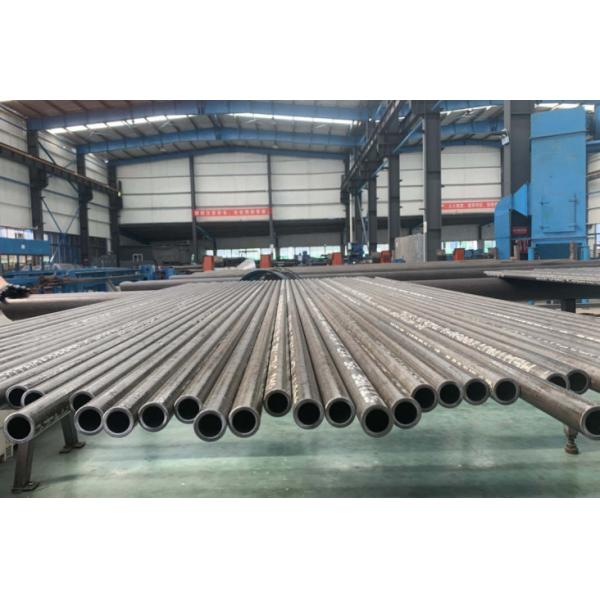

Cold Drawn ASTM A210 Gr A1 Boiler Steel Pipe

ASTM A210 Gr A1 Seamless Medium Carbon-Molybdenum Alloy Steel Boiler Cold Drawn

We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.

ASTM A210 / A210M Grade A-1 Chemical Compositions

ASTM A210 / A210M Grade A-1 Mechanical Properties

ASTM A210 / A210M Tube Wall Thickness Tolerance

The specified ASTM A210 GR.A1 Seamless Steel Tubes are designed to be used in several applications as either boiler or as superheater tubes. The ASME SA210 Gr A1 Superheater Tubes that are manufactured under this specification also covers minimum wall thickness, and tubing sizes, boiler flues including e ends, arch as well as stay tubes. While the specification for these ASME SA210 Grade A1 Pressure Vessel Tubes takes into account both the tensile strength and hardness properties but these two properties are applicable to certain size limitations. Material used in the manufacturing of ASTM A210 Grade A1 Heat Exchanger Tubes are to be killed. The ASTM A210 Grade a1 tubes are to be produced by seamless process, which in turn are to be marked as either hot finished tubes or cold finished tubes.

Application

Apply to Boiler Tubes, Seamless Steel Tubes, Steel Tubes, and Superheater Tubes.

Ordering Information

Orders for ASTM A210 / A210M, ASME SA210 should include the following, as required, to describe the desired material adequately:

• Quantity (feet, meters, or number of lengths),
• Name of material (seamless tubes),
• Grade,
• Manufacture (hot-finished or cold-finished),
• Size (outside diameter and minimum wall thickness),
• Length (specific or random),
• Optional requirements,
• Test report required (see section on Certification of Specification A 450/A 450M),
• Specification designation,
• Special requirements.
