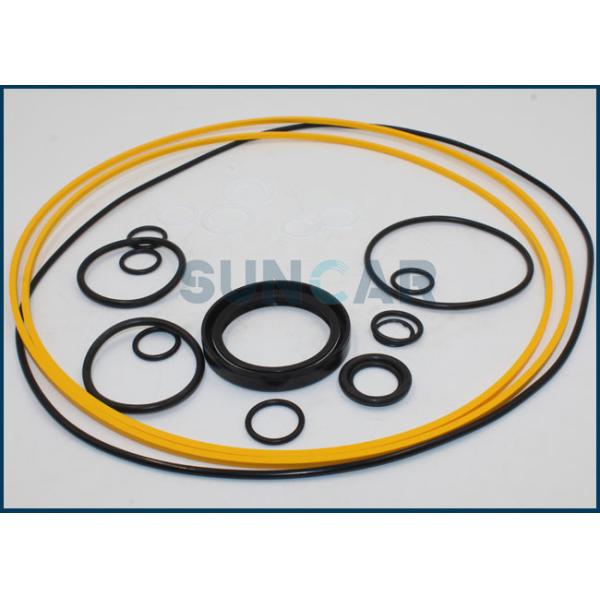

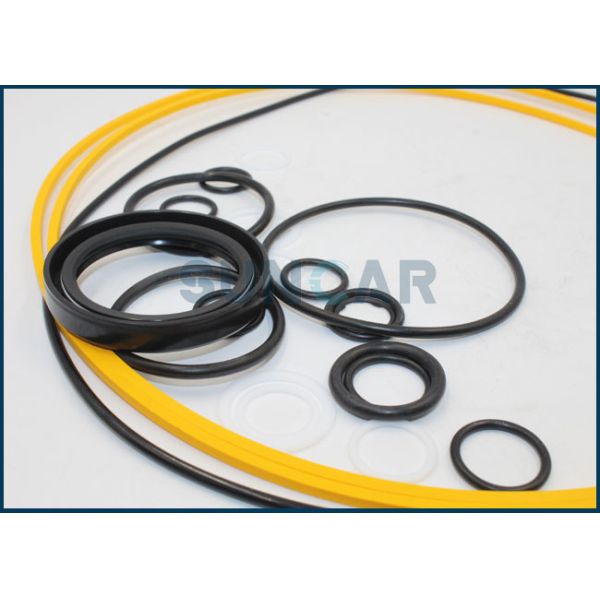

2401-9140K 24019140K Travel Motor Seal Kit SOLAR 290LC-V Doosan Parts

2401-9140K 24019140K Travel Motor Seal Kit SOLAR 290LC-V Doosan Parts

Description:Travel moter will pay an important role in cushioning when the excavator starts to walk and brake.This seal kit using in travel motor,important features are Higher-toughness/High&Low temperature resistence ,seal performance and so on.This seal kit is well received by customers in the market because of its high durability, tensile strength and good resistance to harsh environments.The supplied seal kit can be obtained from us at a market-leading price.

Product name	2401-9140K 24019140K Travel Motor Seal Kit SOLAR 290LC-V Doosan parts
Brand	SUNCAR
Fir brand	DOOSAN
MOQ	10 sets
Part number	2401-9140K 24019140K
Feuture	Higher-toughness/High&Low temperature resistence
Payment tips	L/C, D/A, D/P, T/T, Western Union, ,Bank transfer
Paking	PP bag inside,carton box outside.
Original place	Guangdong,China
Transport mode	By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
CertifiC-A-Tion	ISO9001
Availability	In stock
Compatible equipment	Excavator
Loading port	Huangpu,China
Condition	100% new
Compatible equipment make	Solar/Doosan

Related Parts Number:

1.180-00465	1.407-00006
2.180-01161	2.180-01229
2.180-01233	203-60-63101
203-60-63102	203-60-63110
2046A-35174	2046A-82120
204645A-65123	2046A-65119
20S-60-82120	20T-60-87120
2401-9082K	2401-9140K
2401-6292KT	2401-9234KT
2401-9278KT	2401-9301AKT
3302255-0133	2401-9237KT
401-00311KT	410D9000-0

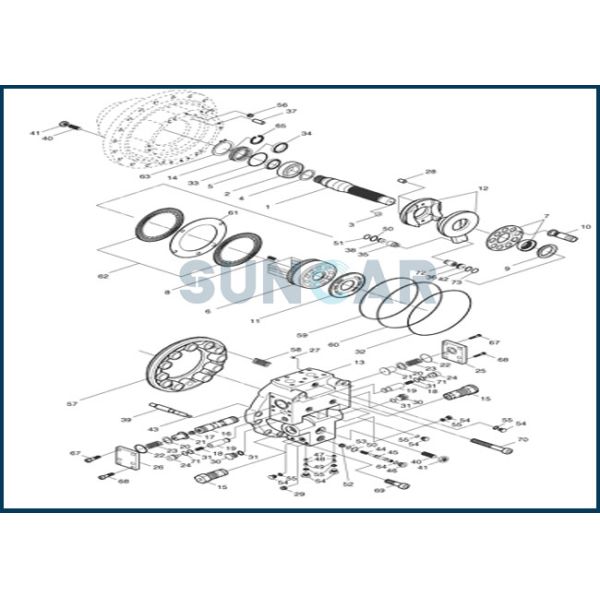

Parts on group SOLAR 290LC-V:

Pos.	Part No	Qty	Parts name
*.	2401-9140K	[1]	O-RING KIT
-.	2401-9140	[2]	TRAVEL DEVICE
101.	3330800106	[1]	SHAFT;DRIVE
102.	PNUP2210	[1]	BEARING;ROLLER
103.	PNK385227	[1]	BEARING;NEEDLE
106.	371A00AA-106	[1]	SPACER;BEARING
107.	OSR50	[1]	RING;SNAP
111.	3330800108	[1]	BLOCK;CYLINDER
113.	2953801840	[1]	BUSH;SPHERICAL
114.	2953801842	[9]	SPRING;CYLINDER
116.	2953801841	[1]	SPACER
121.	371A00AA-121	[9]	PISTON
122.	371A00AA-122	[9]	SHOE
123.	2943800488	[1]	PLATE;SET
131.	3330800114	[1]	PLATE;VALVE
201.	3330800109	[1]	PLATE;SWASH
202.	3330800110	[1]	SUPPORT;SWASH PLATE
22.	VZ40103067	[1]	SUB ASS'Y;COUNTER BALANCE SPOOL
272.	3320800234	[1]	CASING A
303.	3320800184	[1]	CASING;VALVE
304.	3340800109	[1]	COVER;SEAL
350.	V8807044983	[2]	VALVE;RELIEF
361.	5A250010-3310	[2]	WASHER
362.	3350800152	[2]	SPRING;COUNTER BALANCE
364.	3350800150	[2]	COVER;COUNTER BALANCE
365.	OORBG45	[2]	O-RING G45
366.	OSBM1245	[8]	BOLT;SOCKET M12X1.75X45
401.	OSBM1650	[8]	BOLT;SOCKET M16X2.0X50
402.	OSBM16120	[4]	BOLT;SOCKET M16X2.0X120
435.	ORR85	[1]	RING;SNAP
451.	PJR1014	[1]	PIN;VALVE PLATE
452.	PJR1524	[2]	PIN 1
461.	PBP116-2403	[10]	PLUG
464.	OVP12	[4]	PLUG
471.	OORBG75	[1]	O-RING G75
472.	PCPP275	[1]	O-RING
485.	OORBP18	[4]	O-RING
491.	PTCV48V	[1]	SEAL;OIL
501.	3340800118	[1]	PISTON;TILTING
502.	3350800266	[1]	PISTON;TILTING
503.	3350800311	[1]	STOPPER
504.	3350800160	[1]	STOPPER;S
505.	3350800148	[1]	ROD;TILTING
506.	PSSSM1640	[2]	BOLT;SOCKET
507.	ONM16C	[2]	NUT M16X2.0
508.	OORBP22A	[1]	O-RING P22A
509.	OORBP16	[2]	O-RING P16
510.	OT2BP16	[1]	RING;BACK-UP
511.	OORBP10A	[1]	O-RING P10A
512.	OT2BP22A	[1]	RING;BACK-UP
531.	3350800149	[1]	SPOOL;TILTING
533.	3350800154	[1]	SPRING;TILTING
541.	2953801680	[2]	SEAT
542.	3350800155	[2]	STOPPER
543.	ODW732	[2]	BALL;STEEL
545.	OTRS116A15	[1]	ORIFICE
546.	OTRS116A10	[2]	ORIFICE
547.	OORBP10	[3]	O-RING P10
567.	OVP14	[7]	PLUG
568.	OORBP11	[7]	O-RING
571.	37DA00AA-668	[1]	PLUG
572.	OORBP14	[1]	O-RING P14
702.	3330800107	[1]	PISTON;BRAKE
705.	3350800153	[10]	SPRING;BRAKE
707.	3350800174	[1]	RING;PISTON 252
708.	3350800151	[1]	RING;PISTON 278
709.	PJR1540	[4]	PIN;CENTER
710.	34750-00-367	[1]	GUIDE;SPRING
711.	37KB00AD-368	[1]	SPOOL
712.	34750-00-369	[1]	BUSH
713.	34750-00-370	[1]	SPRING
714.	OR038	[1]	PLUG
741.	3350800147	[1]	PIN;SEPARATOR
742.	3340800110	[2]	PLATE;TRICTION
901.	3350800317	[1]	KIT;SEAL
902.	33522-01-20	[1]	VALVE CASING SUB ASS'Y
903.	3350800316	[1]	CASING SUB ASS'Y
904.	33522-00-14	[1]	CYLINDER SUB AS'Y
905.	371A00A-12	[1]	PISTON SUB ASS'Y

Product Tags:

2401-9140K Hydraulic Seal Kit

Komatsu hydraulic seal kit

2401-9140K

2401-9140K 24019140K Travel Motor Seal Kit SOLAR 290LC-V Doosan Parts

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	GUANGZHOU SUNCAR SEALS CO.,LTD.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Hydraulic Seal Kit
Brand Name:	SUNCAR
Model Number:	Center joint sel kit 2401-9140
CertifiC-A-Tion:	ISO9001
Place of Origin:	CN
MOQ:	10 Sets
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,
Supply Ability:	550 Sets Per Week.
Delivery Time:	3-7 Days After Payment Received(Public Holiday Excluded)
Packaging Details:	PP Bag Inside,Carton Box Outside.
Brand:	SUNCAR
Type:	Hydraulic kit Moter seal kit
Featrure:	Higher-toughness/High&Low Temperature resistence
Color:	Standard color/Customer required
Part numbers:	2401-9140K;24019140k
Compatible equipment Make:	Solor,Doosan
Original place:	Guangdong,China
Compatible model:	DH280LC-3 SOLAR280LC-III SOLAR290LC-V SOLAR300LC-V
Loading port:	Huangpu port,China
Compatible equipment Type::	Excavator hydraulic systerm
