M20 Thread Stainless Steel 304 3 Way NC Solenoid Valve Armature Tube

M20 Thread Stainless Steel 304 3 Way NC Solenoid Valve Armature Tube

Solenoid technology is an electro-mechanical device that controls the flow of a media through a pipe by opening or closing the valve orifices. The solenoid assembly consists of a coil, plunger, and sleeve assembly. In a normally closed valve, a plunger return spring holds the plunger against the orifice, preventing flow through the valve. When the coil is energized, a magnetic field is produced, raising the plunger and allowing flow through the valve.

The armature tube is the stainless steel or brass tubular element used as a guide for the movable core which is actuated by the magnetic force generated by the coil.

The armature assemblies are constructed of metallic components designed to provide protection against incompatibilities of various fluid medias. However it is necessary to use caution when specifying a solenoid valve for an unfamiliar fluid. Use caution when selecting a material suited specifically for the media.

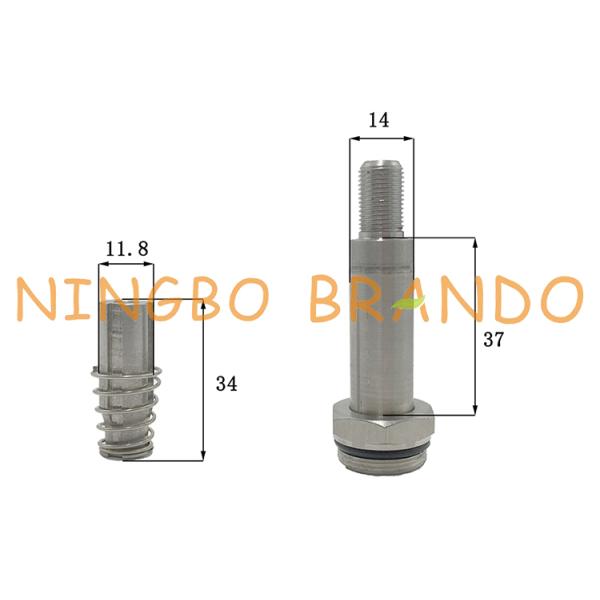

Main dimension of Solenoid Valve Armature Assembly:

Details of Solenoid Valve Armature Assembly:

3/2 Way NC M20 Thread

Plunger Slot NBR Seal

Technical data of Solenoid Valve Armature Assembly:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

How to choose a right solenoid armature?

During the choose of the Solenoid Armature, you should pay attention to below factors:

1. Working voltage: AC or DC

2. Switching function: 2/2 or 3/2way;

3. De-energized state: Normal close, normal open or Divert

4. Stroke of the matched valve body

5. Valve’s orifice

6. Working environment: working medium, temperature, pressure of pipeline etc

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
