| Brand Name: | Suntech |
| Model Number: | JKD,GKB |
| Certification: | ISO9001:2008 |
| Place of Origin: | Fenghua,Ningbo,China |
| MOQ: | 1pcs |
| Price: | Get newest price |
| Payment Terms: | L/C, T/T, D/A, Western Union, |
| Supply Ability: | 500pcs per month |
| Delivery Time: | 5-7 workdays after payment |
| Packaging Details: | Packed With Export Case |
| Material: | Aluminum,Steel |
| Type: | Bend Board |
| Product Name: | Cable Reel Roller |
| Max Diameter: | 80-150mm |
| Weight: | 3.2-6.5kg |
| Bend Radius: | R400-R500 |
| Applicable: | Cable Laying |
| Company Info. |
| Ningbo Suntech Power Machinery Tools Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

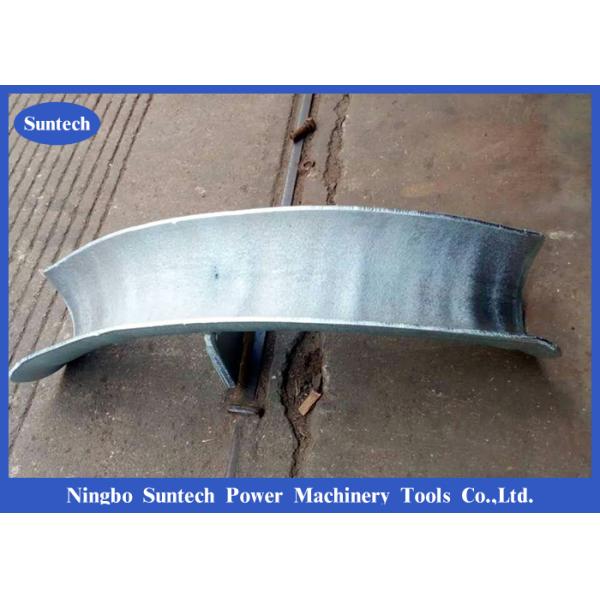

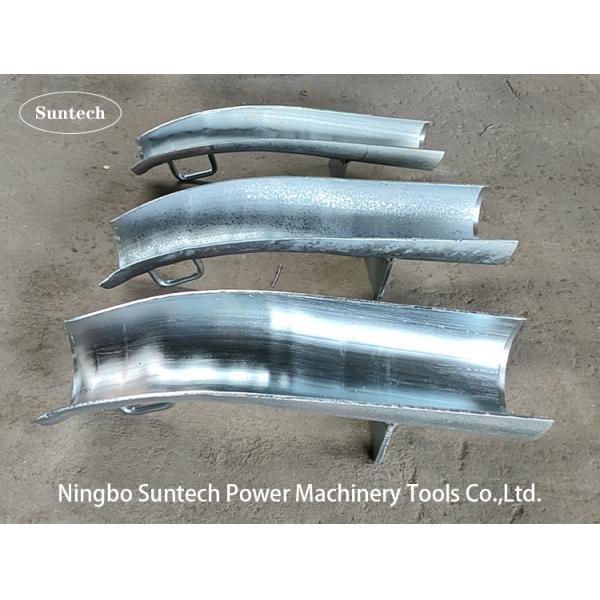

Galvanized Electrical Cable Pulling Tools Cable Protection Bend Board Entrance Protective Sleeve
This cable protection bend plat plays a vital role in safeguarding the cable and pulling rope at the cable pithead. It is constructed from galvanized steel
1. Protect cable and pulling rope at pipe mouth pithead.
2. Cambered surface 45 or 60 wrap angle
| Item number | Model | Max. Cable Diameter(mm) | Curvature diameter(mm) | Weight (kg) |
| 21305 | JKD80 | Φ80 | R400 | 5 |
| 21307 | JKD100 | Φ100 | R400 | 5.2 |
| 21306 | JKD130 | Φ130 | R500 | 6 |
| 21308 | JKD150 | Φ150 | R500 | 6.5 |

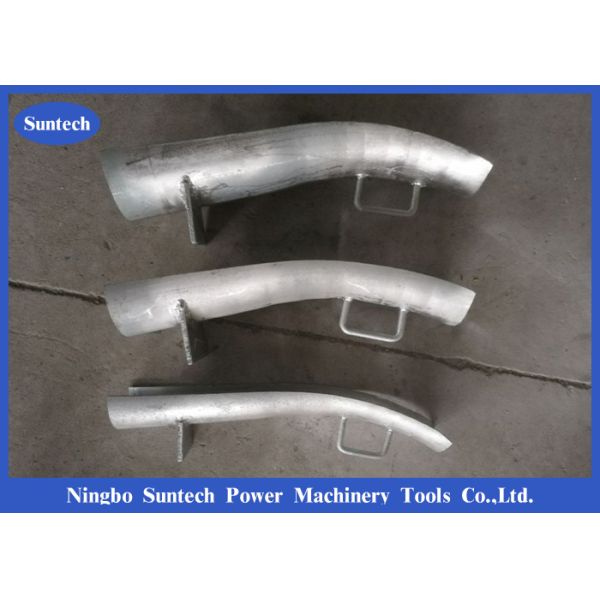

| Item number | Model | Tube Diameter(MM) | Curvature diameter(mm) | Weight (kg) |
| 21321 | GKB100A | Φ 100 | R 400 | 3.2 |
| 21322 | GKB130A | Φ 130 | R 450 | 5.2 |
| 21322A | GKB150A | Φ 150 | R 450 | 5.9 |
| 21325 | GKB100B | Φ 100 | R 450 | 3.4 |
| 21326 | GKB130B | Φ 130 | R 450 | 6 |



|
