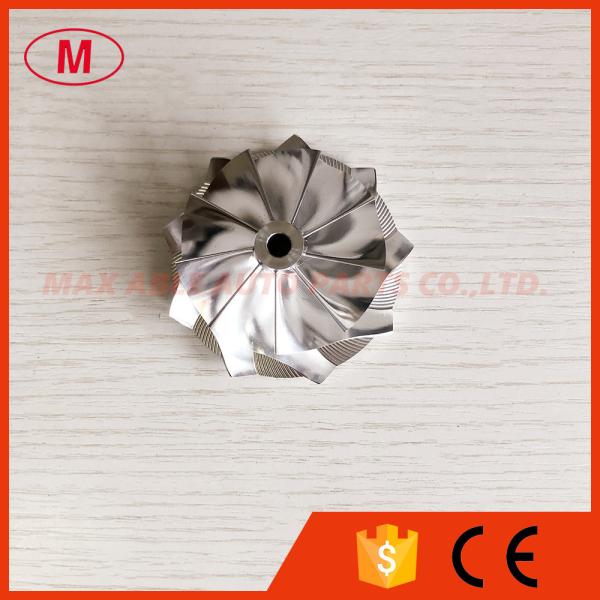

G25-660 1380-1 54.28/67.40mm 9+0 Blades high performance turbo Milling/billet compressor wheel for 858161-5003S

1.Model:GT25-660 FORWARD

2. G25-660 1380-1 54.28/67.40mm 9+0 Blades high performance turbo billet/aluminum 2618/Milling compressor wheel for 858161-5003S/877895-5002S/5005S/877895-5006S/871389-5010S-5011S
3.Size:

Nose diameter:12.40mm

Inducer:54.28mm

Exducer:67.40mm

Tapered tip exducer:73.48mm

Tip height:6.26mm

Trailing angle:45 degree

Superback:2.23mm

Bore:6.00mm

bore type:through

Cutback:6.7mm

Overall height:33.90mm

SP Height angle:0.00

Blades height:29.60mm

Splitter height:0.00mm

9+0 blades

Tapered tip angle:30 degree

Forward rotation

It is for OE compressor housing

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !

6.Application:

858161-5003S/877895-5002S/5005S/877895-5006S/871389-5010S-5011S

All the compressor wheels have been balanced.

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
