8Mpa HBT5008K 82kW Trailer Mounted Concrete Pump

HBT5008K 82kW Trailer Mounted Concrete Pump 50m3/h Conveying Capacity
HBT5008K trailer-mounted concrete pump is a kind of modernized construction equipment used for pumping concrete continuously. It features such outstanding advantages as high reliability, easy maintenance and low operation cost, suitable for medium high and high-rise building construction and long-distance concrete pumping.
HBT5008K pump mainly caters to the mixing plants and concrete production industry in domestic large and middle cities and meanwhile considers the demands of foreign developed countries below medium level. It can meet the requirement of constructing the high and medium high buildings, bridges, tunnels, workshop and power plants which require high pressure pumping, remote distance pumping and pumping high strength concrete (above C50).
1. The machine adopts a 4-cylinder in line, turbocharged, water-cooled (with external connected radiator).
2. Streamlined hopper, designed for high pressure pumping system, has a capacity of 0.45m3. Two side soleplate angles are enlarged, so concrete flowing resistance is smaller and the suction efficiency is higher.
3. The center pumping system consists of pumping cylinder, water tank, concrete delivery cylinder and other parts. The pumping cylinder, water tank, concrete delivery cylinder and hopper are fixed together by lead-screws and connecting bolts.
4.The hydraulic system is an open-type control system that incorporates SCHWING technology.
5. It is equipped with imported controller and color display, which can dynamically display and record variable working parameters, and store various working history record.
6. The radiator has an automatic checking device which starts to lower temperature automatically when oil temperature reaches the preset temperature.
HBT5008K Concrete pump is a construction equipment which conveys concrete by pressure through pipeline.
Technical Characteristics:
1. It is equipped with special pipeline, we can make the size according to your request.
2. It can continuously complete horizontal and vertical conveyance of concrete along pipeline.
3. It is an ideal kind of existing concrete conveyance equipment.
4. It combines the production of ready-mixed concrete with pumping construction and uses coagulation.
5. The soil mixing truck carries out intermediate operation, which can realize continuous pumping and pouring of concrete.
6. It is used for conveying concrete in large concrete projects.
Parameter

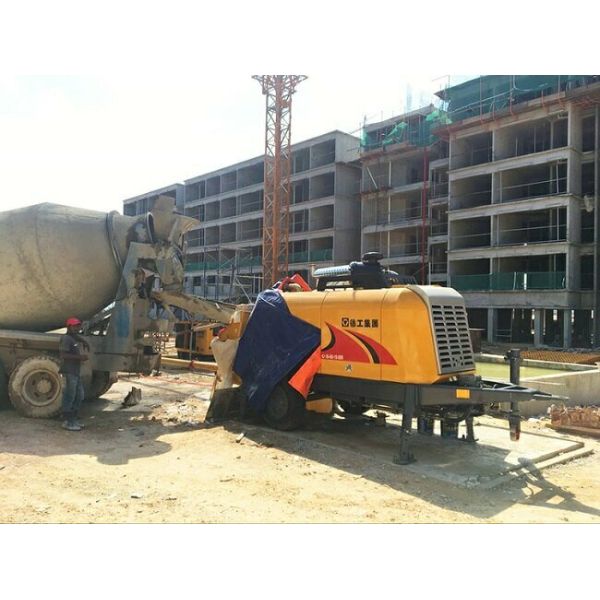

Trailer Pump Picture
