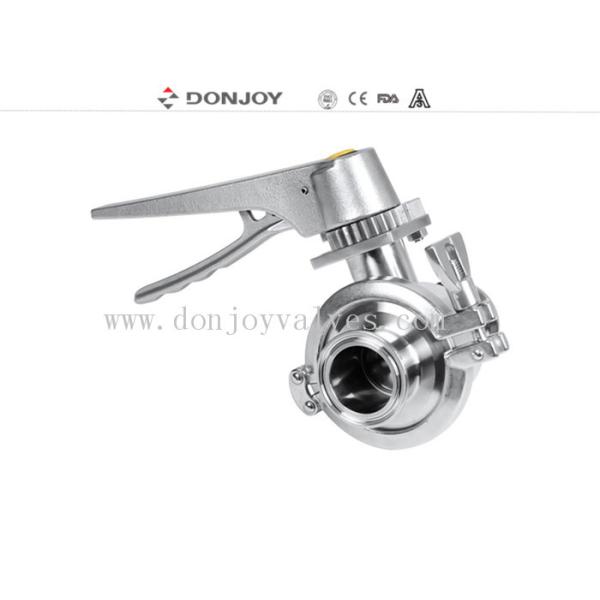

EPDM Seal DN300 Sanitary 10 Inch SS Clamp Butterfly Valves

Sanitary 10 inches stainless steel clamp connection butterfly valves ss multi-position handle white vition gasket ​

Specifications

Drawing

Technical specification

1.Max pressure:10bar 1/2",DN10-DN300,5 bar (DN200/DN300)

2.Min.pressure:0.2 bar p.abs

3.Operation temperature:-10℃ to 120 ℃ (EPDM)

4.DONJOY has more than 20 years of experience in the production of butterfly valves, to ensure the best performance and best application choice for each butterfly valve. We can provide customers with the best configuration plan.

5.The valve body and valve plate adopts the integral forging process, and the CNC cutting center is processed at one time to ensure the machining accuracy of each valve body.

6.Sealing imported from Europe, meet with FDA177.2600; 3-A-18-03

7.The butterfly valves we produce are of various styles, and the manual, pneumatic and electric are interchangeable. Each pneumatic can be equipped with a control unit, position feedback, valve positioner, and other configuration requirements for different needs. Various manual styles can be interchanged without additional accessories

Advantage

We have produced more than 2.5 million butterfly valves so far

Handle selection
Two-position handle;
Three-position handle;
Four-position pull handle;
Multi-position plastic handle;
Multi-position stainless steel handle

Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Donjoy was founded in 1993, with registered capital RMB105.58 million(about 15million USD) We focus on developing high-precision PID valve positioner, Valve Control unit, Valve Position feedback device, intelligent automatic control valve, proportional valve, process control valve, high purity pump, homogeneous mixing pump, cleaning technology, pressure vessel, pipeline safety control technology, high clean pipe fitting&pipeline accessories and integrating r&d, production and sales as an integrated national high-tech enterprises. Donjoy’s products are widely used in bio-pharmaceutical, food and beverage, wine, fine chemicals and other industrial fields. Donjoy’s leading technology and innovation solutions meets growing demand in the industry of bio-pharmaceutical, food and beverage from the whole world, special emerging market.

Raw material, processing technology, welding technology, surface treatment and other technology from Donjoy have achieved advanced level in international market. It also complies with a series of international standards and specifications such as ASME BPE, EHEDG, FDA and 3A , It has passed the EU Pressure Equipment Directive (PED-97/23/EC) and (MD-06/42/EC) issued by the German TÜV organization; the 3-A health standard certification issued by the 3A organization; China Safety Valve Special Manufacturing Equipment (TS) License , China Quality Certification Center (CQC) and Quality Management System Certification (ISO9001:2015) and many other international authoritative certifications.

With advanced technology, excellent quality and perfect after-sales service system, Donjoy was awarded as National High-tech Enterprise, Provincial Famous Trademark, Science and Technology Enterprise, Innovative Enterprise, Patent Demonstration Enterprise, R & D Center Enterprise, AAA Credit Enterprise and many other honorary
