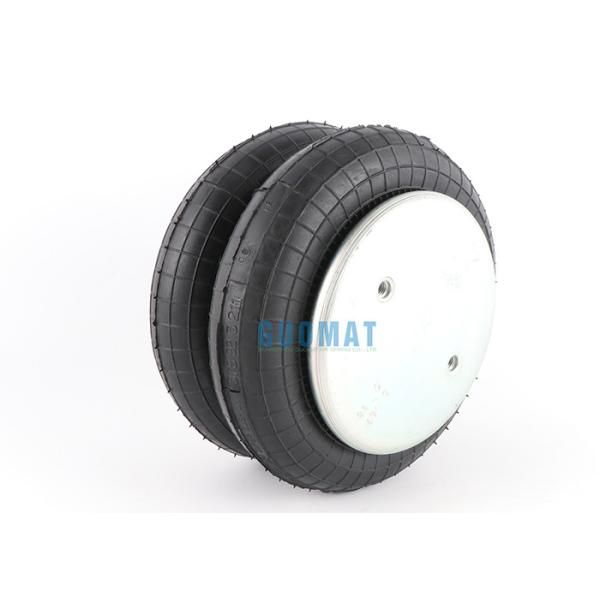

Firestone W01-358-6932 2B9-246 Goodyear Air Spring

2B9-246 Goodyear Air Spring Firestone Double Air Bags W01-358-6932 For TRP AS69320

OEM Original Equipment Manufacturer:

AUTOMANN
ABSP2B12R-6932

TRIANGLE

4452

CONTI
64514

FD 200-19 452

TRP

AS69320

FIRESTONE
6932

W013586932

RIDEWELL
1003586932C

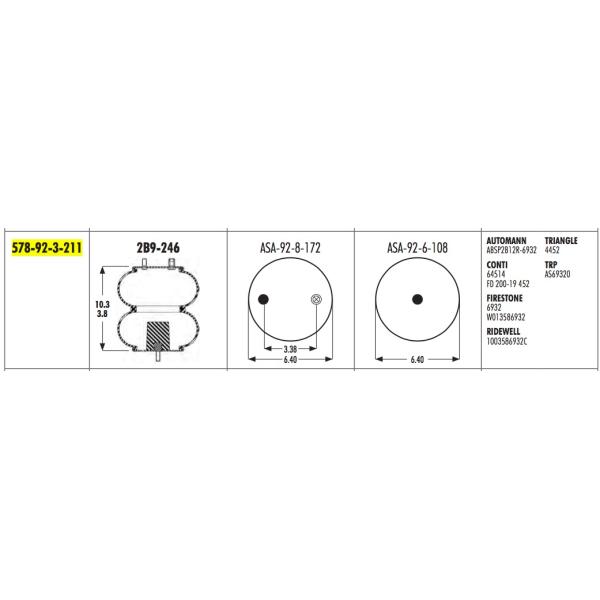

Specifications and Technical Data of 2B9-246 Goodyear

Compressed Height: 3.12 / 79mm

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut :in the middle of the plate

Top Cover Plate Screw (Nut) Tooth : 1pcsX1/2-12UNC

Bottom Cover Plate Screw (Nut) Tooth : 1pcsX 1/2-16UNC

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter 224 mm

The Working Stroke : MAX 274 mm to MIN 95 mm

Gas Hole / Air inlet : 1/4 NPTF

Firestone Bellows Number:20

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
