| Brand Name: | Huafood |
| Model Number: | Customized |
| Certification: | CE,ISO |
| Place of Origin: | CHINA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100Set per months |
| Delivery Time: | 10-20 working days |
| Packaging Details: | International Standard Wooden Case Packaging |
| Electric heating and motor power: | 10KW 0.75KW |
| Diameter depth: | 600*420mm |
| Heat transfer oil quantity: | 42.5kg |
| weight: | 110kg |
| Material: | Stainless Steel 304 |
| Capacity: | Customers' Request |
| Control: | Button |
| Volume: | 50L |
| Application: | Food Industry |
| Heating method: | Electric /motor/steam Heating |

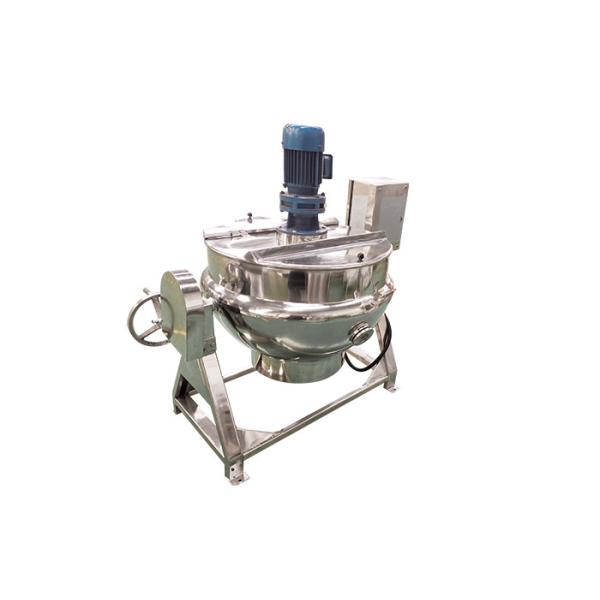

Electric Heated Jacket Pan With Mixer Ood Mixer Heated/Steam Jacketed Kettle/Industrial Cooking Pots With Mixer
▶Product description:
The machine is widely used in food processing, such as: candy(soft candy, hard candy), cakes, beverages, preserves, canned food etc, also can be used in large restaurants or canteens to make soups, stews, stews, porridge etc. It is a good equipment to improve quality, shorten time and improve working conditions in food processing.


▶Parameter:
| Volume(L) | Electric heating and motor power (KW) | Diameter depth (MM) | Heat transfer oil quantity(KG) | weight(kg) | voltage(V) |
| 50 | 10KW 0.75KW | 600*420 | 25 | 110 | 380V |
| 100 | 12KW 0.75KW | 700*470 | 32.5 | 125 | 380V |
| 200 | 16KW 1.5KW | 800*550 | 42.5 | 150 | 380V |
| 300 | 18KW 1.5KW | 900*600 | 60 | 200 | 380V |
| 400 | 24KW 1.5KW | 1000*680 | 75 | 250 | 380V |
| 500 | 27KW 2.2KW | 1100*720 | 100 | 300 | 380V |
| 600 | 30KW 2.2KW | 1200*780 | 125 | 350 | 380V |
▶Main features:
The electric heating jacketed pot uses 380V power as the heat source. The jacketed pot is equipped with electric heating rods, electric heating tubes and heat transfer oil (customer self-prepared), and the maximum temperature can reach 320 degrees. It is controlled by an electric control box and equipped with a temperature control system. The electric heating jacketed pot has a large heating area, uniform heating, high thermal efficiency, short liquid boiling time, and easy heating temperature control.

|
