| Categories | Swing Barrier Gate |
|---|---|
| Brand Name: | Turboo |
| Model Number: | K324 |
| Certification: | CE ISO9001 |
| Place of Origin: | Guangdong China(Mainland) |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Delivery Time: | 10 days |
| Packaging Details: | Wooden Case Package |
| Motor: | DC Brushless Motor |
| MCBF: | 5,000,000 cycles |
| Product Size: | 1500-1700*200*980mm |
| Pass Width: | 600-1300mm |
| Net Weight: | 60KG |
| Material: | Acrylic barrier+1.5mm SUS 304 Polish 400# Snow line case |
| Top cover Material: | 1.5mm SUS 304 |
| Pass Rate: | 35-40 persons/minute |
| Operating time: | 0.2 Seconds |
| Infared Sensro: | 14 pairs |
| Communication interface: | RS485,Dry contact |
| Input Voltage: | 100-240V |
| Working Voltage: | 24V |
| Company Info. |
| Turboo Automation Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

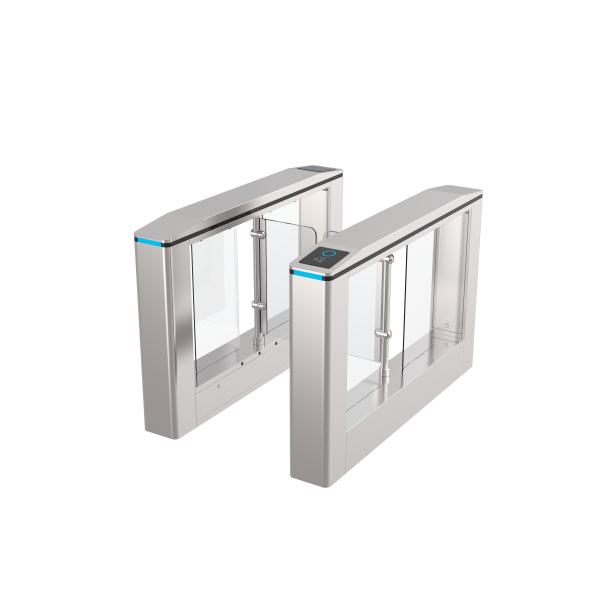

Indoor Outdoor Used,DC Brushless Motor,Acrylic+SUS304,600-1300mm pass width,14 Pairs Infrared,Sensor Swing Barrier Gate
Description
K324 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing. It could be used indoor and outdoor.
| Model Number: | K324 |
| Product Size: | 1500*200*980mm |
| Pass Width: | 600mm |
| Net Weight: | 65kg |
| Thickness: | 1.5mm |
| Material: | SUS 304 Hailine 400# |
| Top cover Material: | Acrylic+1.5mm SUS304 |
| Filling Panel Material: | 10mm Transparent Acrylic |
| Arm Material: | 10mm Transparent Acrylic |
| Driver: | Brushless Motor |
| Infrared Sensor: | 14 pairs |
| Pass rate: | 35-40p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 35w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
Feature:
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now
|
