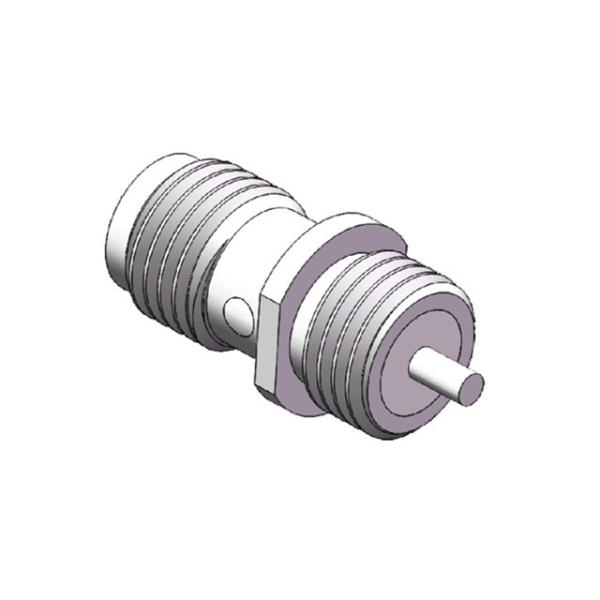

50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector

Categories	SMA RF Connector
Brand Name:	ELT (Elite)
Model Number:	SMA-KYD84
Certification:	ROHS, ISO-9001-2015
Place of Origin:	China
MOQ:	100pcs
Price:	Negotiable
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1,000,00 Pieces Per Month
Delivery Time:	Within 3-4 weeks
Packaging Details:	Standard Export Carton
Item:	SMA RF Conector
Plating:	Nickle Plated
Gender:	Female
Impedance:	50Ω
Frequency:	DC~18GHz
Lifetime:	500 Cycles
Body:	Brass
Application:	audio/vedio/microwave

Contact Now

Add to Cart

Company Info.

Xi'an Elite Electronic Industry Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

50Ohm Nickle Plating Bulkhead Female Jack Straight SMA Connector

SMA RF connectors are available in quick connect, push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).

Key Features:

Wide variety of orientations and PCB terminations
Frequency range up to 18GHz Sub-miniature coaxial connectors
Using a threaded interface
Available in passivation or gold plating
Brass and stainless steel material options
Available in straight or right angle versions
With bulkhead, 2 holes panel, 4 holes panel or mountless options.
Broad range with male, female and adapters variants.
RoHS compliant

Specifiacation of SMA RF Connectors:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

Application:

Microwave Systems Telecommunications
5G Solutions
Measurement Systems
Mobile Telephone WiFi Antennas Systems

More Detail of SMA RF Coax Connectors:

Product Cataloge:

RF Adapter

SMA RF Connector

SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

Millimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

Related Product

1.SMA Female Bulkhead Mount RF Connectors for PCB

2.SMA 4-Holes Flange Mount Right Angle RF Coax Connectors

Model No,	L	L1	L2	D	Note
SMA-KWFD	29	15	2.9	1.3
SMA-KWFD8	15.1	3	1	1.3
SMA-KWFD103	22.4	5.4	5.7	1.3
SMA-KFD113	34	20	2.9	1.3
SMA-KWFD118	20.1	4.8	4.2	1.3
SMA-KWFD120	16.1	4	1	1.3
SMA-KWFD122	17.4	2.3	4	1.3

3.PCB Solder Mount 50Ω Gold Plated 18GHz SMA Right Angle Connectors

Model No.	L	L1	Note
SMA-KWHD	13.5	3.9
SMA-KWHD9	11.5	1.9
SMA-KWHD11	15.6	6

4.SMA Female PCB Panel Solder Mount RF Connectors

Model No.	L	D	D1	Note
SMA-KHD9	2	1.3	1.4
SMA-KHD9A	1.8	0.8	0.9

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
