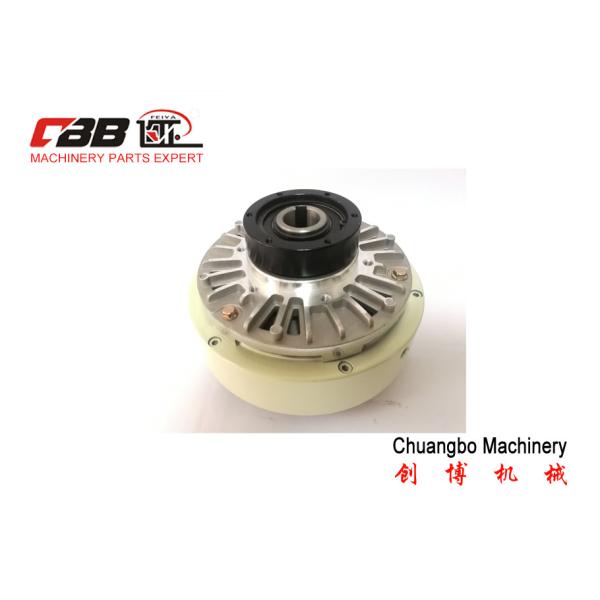

Cellular 25NM FL25K 2.5kg Magnetic Powder Clutch

Cellular Electromagnetic Powder Clutch 25NM Torque FL25K 2.5kg Powder Clutch

Brief introduction

Electromagnetic powder clutch FL25K is especially for high-precision tension control, overload protection, torque loaders. With the development of the modern industry, it plays an increasingly important role in all industrial fields and demonstrates great advantages over other components. It is a versatile, superior performance of automatic control components. Electromagnetic powder clutch can also used to buffer starting, overload protection, speed control and so on.

Details for clutch

• Type: Cellular magnetic powder clutch
• Model: FL25K
• Torque: 25NM/2.5kg
• Input: DC24V
• Current: 1.5A
• Clutch weight: 9.50kg
• Magnetic powder weight: 30g
• Max speed: 1400rpm
• Warranty: 1 year
• Package: Cartoon/Plywood

Parameters

Application

Magnetic powder brake is widely used in printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery,coil machinery,wire winding machines,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, steel extruders, CNC lathes, specialized machinery and so on.

Features

1) Stable slip torque. The slip rotational speed between driven rotor and active rotor do not affect the transitive torque when the magnetizing current retain constant. The static friction torque and the dynamic friction torque is same. So the torque can retain constant stably.

2) The transmission torque output is linear. The slip torque can get controlled within large range. Under normal circumstance, the magnetizing current has a linear relationship with transitive torque within range of 5%-100% rated torque.

3) Prevention of the phenomenon of heat since slip. It will not generate a lot of heat after long time running and it has a long service life.

Advantages

1. High-precision torque control
2. Superior durability, long life
3. The stability of fixed superior torque characteristics
4. Continuous operation of the use of sliding
5. Ink sleek, non-shock
6. Suitable for high-frequency operation
