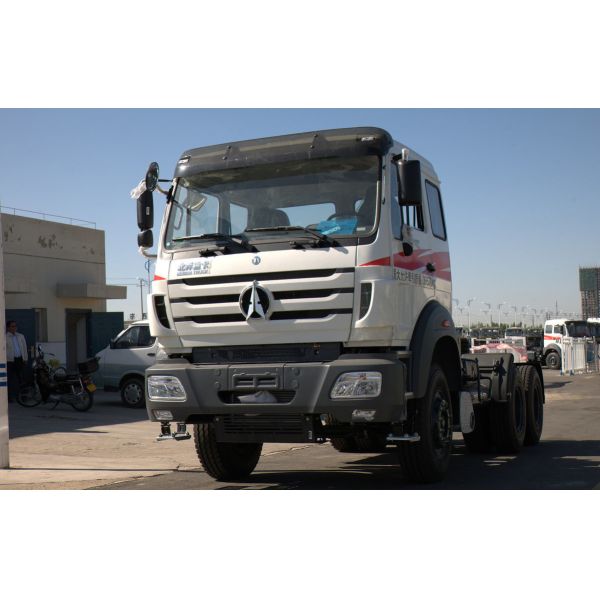

12.00R20 6x4 Diesel 400L North Benz Trucks

Categories North Benz Trucks
Brand Name: North Benz, Beiben
Model Number: 2638S
Certification: ECER29/SGS/ISO/VGA
Place of Origin: China
MOQ: 1unit
Price: US$40000-55000/unit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200units/month
Delivery Time: 30-40 working day
Packaging Details: Nude/Wax
Driving Type: 6x4, LHD
Engine: Weichai
Transmission: FAST, Fuller, 12JS200TA
Emission: Euro II, III, IV, V
Tire: 12.00R20
Middle and Rear axle: Mercedes Benz Technology
Fifth wheel: JOST
Steering: ZF
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

12.00R20 6x4 Diesel 400L North Benz Trucks


North Benz tractor trucks, 6x4, benz technology, China benz, weichai engine,


By virtue of complete technology and equipment introduction from German Daimler Benz, after fully optimization and promotion, the North Benz trucks are characterized by high reliability, high safety, large loading capacity and high cost performance.




Wheel base (mm)3450+1450
Curb weight (kg)8800
Gross towing trailer weight (kg)40000
Max Speed:(Km/h)≥90
Dimension(Length*Width*Height)6935*2495*3340mm
EngineModelWD615.38,water-cooled,four strokes,6 cylinders straight in line,turbocharged,
Fuel typeDiesel
EmissionEUROII
Displacement(L)9.726
Fuel tanker capacity (L)400L
ClutchModelΦ430, Diaphragm Spring,Hydraulic boosting
GearboxModel12JS200TA, mechanical type,12 Forward speed gear.
Brake systemService brakeBrake gap can be adjusted automatically, double circulation air brake system
Assistant brakeEngine exhaust brake
Park brakePotential springs pressing on middle and rear wheels
Steering systemModelZF8098
Suspension systemFront SuspensionNon-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension
Rear SuspensionNon-free standing stabilization spring, stabilization suspension,
FrameFish belly shape, variable width, variable sections
Cross section dimension of frame (mm)317×70×8.5+7mm
Front axle
(Mercedes Benz Technology)
Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7/
Middle and Rear axle
(Mercedes Benz Technology)
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Middle axle: HD7/016DGS-13/5.921
Rear axle: HL7/015DS-13/5.921
Tire12.00R20
Qty of tire11
Electrical systemBattery2X12V/135Ah
Generator28V-35A
Starter5.4Kw/24V
CabLong cab with single sleeper,
Full steel skeleton structure, covered with double layer steel plate
Can be tipped forwardly;
Interior trimming:
High back/shock absorption seat for driver. Inner A/C, Manual door locks, manual glass lift
Exterior trimming:
NG80B front grid plate, Metal bumper, three steps, sun visor, new mirror system.
Fifth wheel#90 single direction (JOST)
