| Categories | Welded Wire Mesh Machine |
|---|---|
| Brand Name: | JINTE |
| Model Number: | JT-W-AUO2325 |
| Certification: | ISO CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD 24500-28000 /set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1 set/month |
| Delivery Time: | 30 days |
| Packaging Details: | plastic |
| Name: | Weld wire mesh machine |
| Contorl System: | PLC |
| Aplication: | Produce metal panel |
| Key words: | High Safety |
| Warranty: | 1 years |
| condition: | New |
| certificate: | ISO CE |
| type: | Automatic |

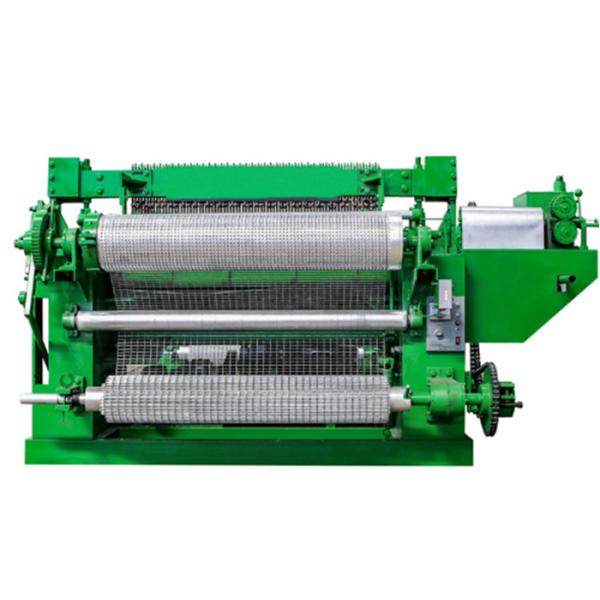

Galvanized Steel Wire Mesh Welding Machine consists mainly of main machine for welding, material feeding mechanism, step-by-step mesh-grid-size-fixing mechanism, transverse wire falling mechanism, mesh falling and conveying mechanism, material storage rack, electric control system, air-driven system and water cooling system, etc.
The welded wire mesh panel machine is full actomatic , from wire to panel all do well on this machia. The machie can straight wire welded panel , move panel. cut panel, flat panel.In this machine, the wire in stand can put into and the machine automatic do straight and then automatic welded.
Function features and advantages
1. This machine adopts electrical & electronic synchronous control
technique, both separate-phases welding and welding time composed
of digital and integrated electric circuit, more intelligent and
rational, press at one time, separate welding.
2. The line wire is fed from coil wires; the cross wire is pre-cut, fed from hopper driven by step motor.
3. Mesh pulling system adopts servo motor back and forward, adjusting the cross space by setting the parameters on the touch
screen,different from traditional mechanical adjustment.
4. The welding speed is fast and it is easy to learn and operate.
Only two operators are enough.
5. The finished products can be roll mesh or panel.
| Welding wire diameter | Φ0.6-Φ2.8(mm) | Voltage | 380v -415V 3 phase electric 50HZ |
| Mesh size | 1/4’’-4’’ | Power | 85KVAX6 |
| Mesh width | 600-2100(mm) | Dimension | 2500×1500×1200 (mm) |
| Welding speed | 80-120 times / min | Machine weight | 2600kg |
|
