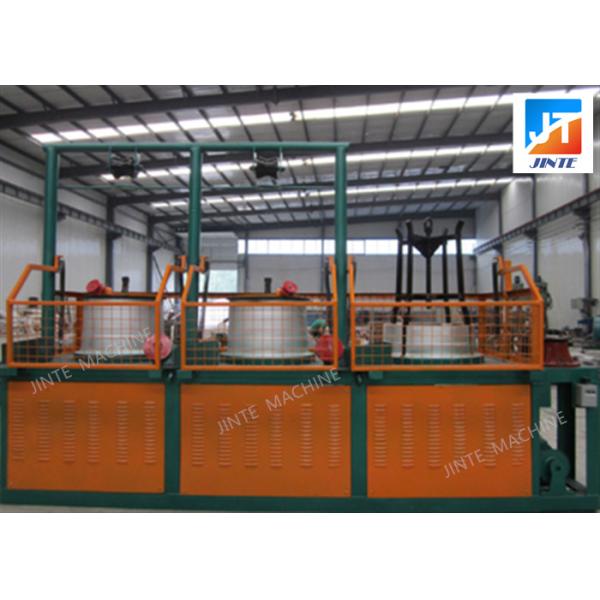

| Categories | Pulley Wire Drawing Machine |
|---|---|
| Brand Name: | JINTE |
| Model Number: | JT-W |
| Certification: | ISO |
| Place of Origin: | Hebei, China |
| MOQ: | 1 set |
| Price: | USD2500-35000/ SET |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5sets/month |
| Delivery Time: | 25 days |
| Packaging Details: | Packed in container with fixed iron rope and wooden stick. Necessarily, the machine will also be paint oil and plastic film. Train transport or sea way are both ok. |
| Condition: | New |
| Inlet Diameter: | 5.5-6.5mm |
| Outlet Diameter: | 2-2.5mm |
| Motor: | 22KW |
| Weight: | 5T |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Online Support |
| Warranty: | 1 year |
Product description
The machine can increase the efficiency of work to a large extent
as the drawing is done from coil to coil & drawn wires are directly
wound on carriers which are taken as it is for further in-plant use
or large coil dispatches.
| Model | specification of supporting equipment |
| Equipment model | Model jt-9/560 straight-through wire drawing machine |
| Drum diameter (traction diameter) | 560mm |
| Draw number | 580—490—430—375—325—280—250—225—200 |
| Into Φ wire diameter | Φ6.5mm--Φ6.0mm |
| Wire diameter | Φ2.5mm--Φ2.0mm |
| Incoming line strength | ≤450mpa |
| Maximum compression rate | 90.5% |
| Maximum linear speed | 14m/s |
| Motor power | 30KW*9＋receiving line15 KW＝213KW |
| Mold size | Φ40mm*30(polycrystalline) |
| Drum arrangement | The head of the machine is upright and inclined |
| The direction of the machine | from left to right |
| Discharge mode | vertical discharge |
| Collection line way | Zws-760 i-wheel wire retractor (pneumatic clamping, push wheel) |
| Wear-resistant | The rotating parts in contact with the steel wire shall be sprayed with tungsten carbide on the surface with a hardness of 70 degrees |
| Drum (tower wheel) cooling | Narrow slot spray cooling |
| Die box cooling form | Draw water |
| Coolant | User liquid supply,external circulation |
| Lift frame | Built-in tension |
| Frame | Welding machine of steel plate and square pipe |
| Driving | belt |
| Bearing support form | Case closed |
| Grease for bearing | Tank self lubrication |
| Parking brake | Pneumatic brake (car drum) |
| Electrical cabinet | Vito structure, protection level IP54 |
| Electrical system | frequency conversion speed regulation DP communication given |
| Gas, water, electric | The buyer shall connect to the equipment interface |
I-wheel motor | 15 kw moto |
| Wire-drawing motor | 22 kw motor |
Detail images
