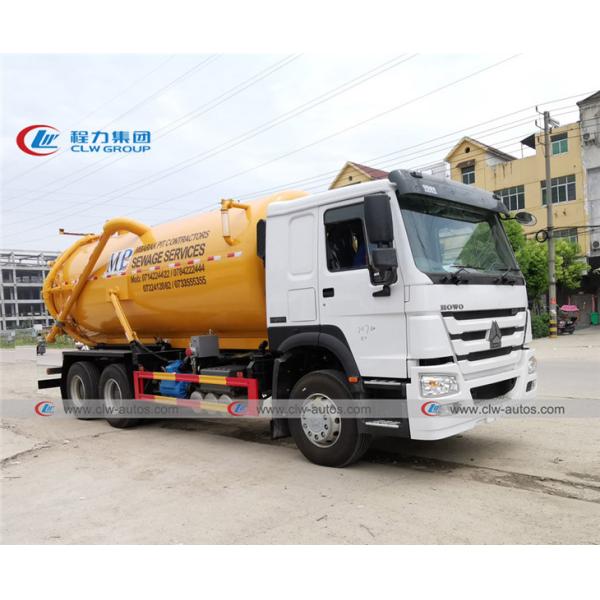

18000L Sinotruk HOWO Vacuum Sewage Jetting Truck with Tipping System
Product Description
1. Purpose of sewer vacuum truck :
It used for city and factory sewer cleaning and sewege transportation, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning.
2. Main parts of sewer vacuum truck:
Water-gas separator, Oil-gas separator, Sewage pump and Four way valve etc.
3. Features of sewer vacuum truck:
Easy for operating and controlled by hydraulic system.
| Vehicle Description | |
| Overall dimensions | 9800*2500*3700mm |
| GVW | 25000kg |
| Mass in working order | 12800kg |
| Chassis brand | DONGFENG |
| Traction type | 6*4 |
| Tanker Description | ||
| Tanker | Capacity | 18000L |
| Material | 6mm thickness, high quality carbon steel | |
| Structure | Welding, vacuum tank, Cylindrical | |

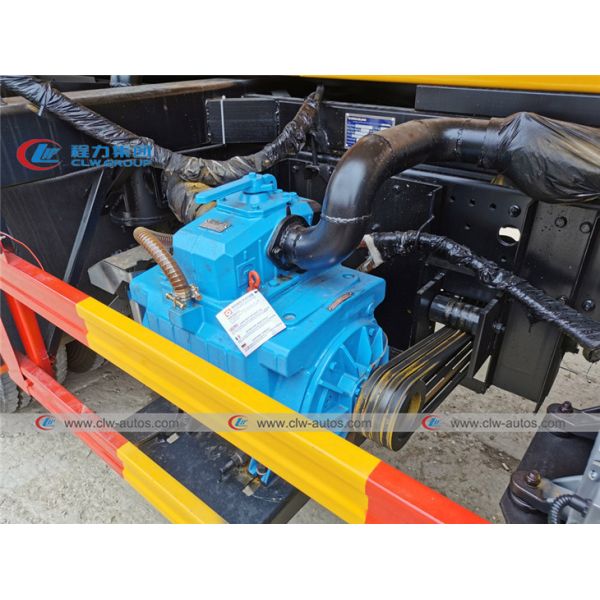

| Pump | Type | Double vacuum pump |
| Flux | 68(L/S) | |
| Rating speed | 800~1000(r/min) | |
| Shaft power | 5(kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Manufacture | Hangzhou WEILONG Pump Co., Ltd. | |
| Pipe | Suction and discharge pipe | |
| Special function | Suction time ≤ 5mins, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45 | |
| Standard configuration | Equipped with Inspect window,discharge valve,cleaning apparatus,5
meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. | |
| Optional configuration | Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank | |
| Chassis Description | ||
| Chassis model | Dongfeng Tianlong | |
| Cab | Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. | |
| Traction type | LHD | |
| Drive type | 6x4 | |
| Wheelbase | 4350+1300mm | |
| Tire specification | 11.00R20 | |
| Tire quantity | 10+1 units | |
| Engine | Engine model | C260 33 |
| Emission level | Euro 2 | |
| Displacement/output | 8300ml/191kw | |
| Horse power | 260hp | |
| Gear box | Model | 9JS119T-B |
| Number of gears | 9 forward gears& 1 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake | |
| Axle | Front | 7T- Elliot type, I beam section |
| Rear | 10T*2-Single reduction, ratio 5.143 | |
| Suspension | Front | 8/8- Leaf spring with shock absorber |
| Rear | 9/9-Leaf spring | |
| Fuel tanker | Type | Steel fuel tank, with lockable cap |
| Capacity | 350L | |
Sales Service
①Pre-sales Service: Communicate with customers, analyze their
needs.
②Sales Service: Provide professional technical solutions, recommend
the right models accordingly.
③After-sales Service: For different products, we can quote the EXW,
FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of sewer vacuum truck I can order from your company?
A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: What is your production standard of sewer vacuum truck? Whether your sewer vacuum truck can export to USA, Canada and Europen countries?
A: Our CBU sewer vacuum truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.
Q3: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our
overseas marketing office in Wuhan. From Shanghai to WUhan is only
2 hours by airplane. Warmly welcome you to visit us in near future!
|
