4 Ports Indoor IP55 Fiber Optic Termination Box with 4 Core Capacity for FTTH/FTTA Networks

Indoor Wall Mount 4 Port SCAPC Fiber Optic Face Plate Socket

Descriptions:

KCO-FTB04D-GJ 4 Core Fibre Optic Roset Socket Faceplateone fiber optic cable with up to 4 cores, bringing significant improvements resulting in better customer experiencewhen FTTH have to be deployed.

This KCO-FTB04D-GJ fiber optic face plate socket is designed to terminated in residential and business building side for the FTTH access network.

It is enable the installation of either a single Blown Fibre Tube Cable with up to a 4 fibre or up to 4 fiber ruggedised cables to be spliced with 4 SC pigtails.

Provide users with optical access or data access
Suitable for 4 pc SC adapters
May store surplus fiber inside, easy for operation
A user end product to realize optical fiber to desktop solution.
It can be used in the home or working area to accomplish double-core fiber access and port output.
Used in the end termination of residential buildings and villas, to fix and splice with pigtails.
High quality PC, ABS, PPR material optional, can ensure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes.
FTTH Mini Fiber Optic Terminal Box is applied in the FTTX network to connect the drop cable and ONU devices through fiber port. The capacity arranges from 1 core to 2 core and up to 4 core , with splicing, mechanical connection, wall-mounted installation.

Feature:

White color, graceful style, and good adaptability to the environment.
Fiber cable inlets in every direction support the cable inlets for different scenarios.
Friendly operation interface, high reliability
Introductions clear, effectively prevent the miss-operation.
Low construction cost
It is applicable for FTTH, FTTO and FTTD, etc.
The clasp design of the cover has greatly reduced the installation strength.
It generates more options in term of fiber interfaces for users, SC, FC is available.
The big-diametered wrapping post in the box protects radically in an omnibearing way.
It is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables.

Overview:

Kocent Optec Limited is one of lead supplier of passive fiber optic product in Shenzhen, China.

Our product list include:

Fiber Optic Cable
Fiber Optic Splitter
Fiber Optic Patch Cord / Pigtail
Fiber Optic Adapter, Connector, Attenuator, and other accessories
Fiber Optic Distribution Box
Fiber Optic Terminal Box, Face Plate, Socket
Fiber Optic Splice Closure Box. , ...

Chatacterist:

SC style fiber optical faceplate, can install SC simplex adaper or also FC, ST, LC adater.
It's simplified design is easy for installation and maintenance
Radian appearance makes it slinky
Embedded chart and logo position make it easy to identity
1 port, 2 ports, 3 ports, 4 ports optional

Specification:

Model	KCO-FTB04D-GJ
Dimension (HWD)	1008530mm
Max. Capacity	8 cores
Max. Adapter	4 pcs SC simplex
PLC Splitter	non
Material	PC+ABS/ ABS
Weight	92gr
Color	Gray/ Black/ White

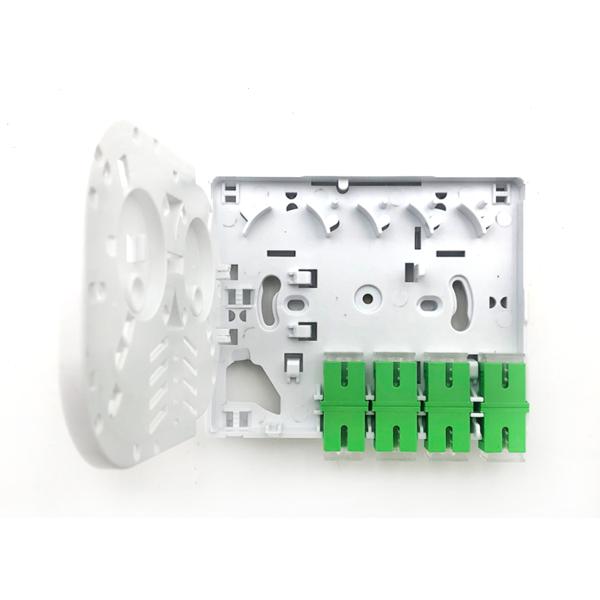

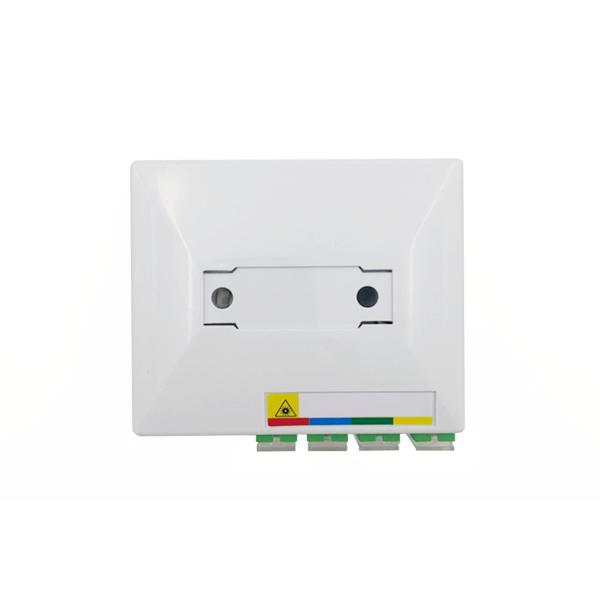

Products photos:


*From:	Your email address is incorrect!
*To:	KOCENT OPTEC LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Fiber Optic Terminal Box
Brand Name:	KCO, Kocent Optec Limited
Model Number:	KCO-FTB04D-GJ
Certification:	ISO9001
Place of Origin:	Guangdong, China
MOQ:	Negotiation
Price:	Negotiation
Payment Terms:	Western Union,T/T,L/C
Supply Ability:	20,000 pcs/ month
Delivery Time:	7~14 days after get payment
Packaging Details:	carton box, wooden pallet
Material:	ABS, ABS+PC
P/N:	KCO-FTB04D-GJ
Color:	White/ Black/ Customized
Connector:	SC, ST, LC, FC, E2000, etc
Application:	indoor IP55
Capacity:	4 ports SC simplex or 8 ports LC duplex
