| Categories | Automatic Water Pump |
|---|---|
| Brand Name: | ZOZHI |
| Model Number: | GDHm-125A |
| Certification: | CE,ISO |
| Place of Origin: | FUAN CHINA |
| MOQ: | 10pcs |
| Price: | negotiated |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs/month |
| Delivery Time: | 25 working days after received your payment |
| Packaging Details: | Packed in cartons,veneer case or wooden case. |
| Power: | 0.15kw/0.125kw |
| Current: | 1.5A |
| Capacitor: | 8uF |
| H.max: | 30m |
| Q.Max: | L/min |
| Pipe Size: | 1"x1" |
| Pressure set: | 1.5bar |
| Tank: | 2L |
| Product Name: | Automatic Water Pump |
| Company Info. |
| Fuan Zhongzhi Pump Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

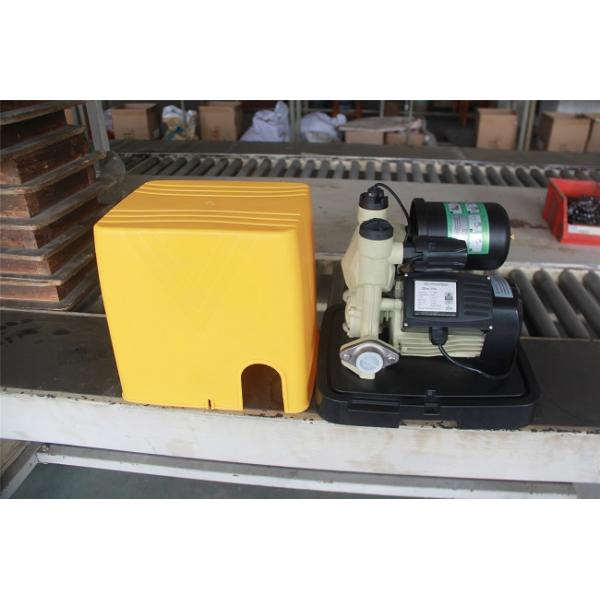

Automatic Water Pump
TECHNOLOGY INNOVATION
Using PC chip control electronic pressure switch, avoid frequent take off pressure switch, long service life.
When the pump is not used for a long time, every 72h it will start for 10s to avoid the lock of the machine.
When no inlet water, the water pump continuously detecting 8 minutes, automatically enter the water
protection system. To avoid the pump in the anhydrous state-run for a long time.
Increase the startup delay function when the electric pump is inserted into the socket, delay 3s start, avoid
spark-over socket, protect personal safety.
The flow priority system, electric pump use acme, truly achieve the full pressure.
WORKING CONDITIONS
Max Temperature of fluid up to +80℃
Max Pressure 10bar
Max Ambient Temperature up to 40℃
| Model | Power | Current | Capacitor | H.Max | Q.Max | Pipe Size | Pressure Set | Tank | |
| (HP) | (W) | (A) | (UF) | (m) | (L/min) | (m) | (bar) | (L) | |
| ZZHm-125A | 0.15 | 125 | 1.5 | 8 | 30 | 32 | 1”x1” | 1.5 | 2 |
| ZZHm-250A | 0.35 | 250 | 1.8 | 10 | 32 | 35 | 1”x1” | 1.8 | 2 |
| ZZHm-370A | 0.5 | 370 | 2.4 | 10 | 36 | 36 | 1”x1” | 2.2 | 2 |
| ZZHm-550A | 0.75 | 550 | 3.5 | 15 | 45 | 55 | 1”x1” | 2.6 | 2 |
| ZZHm-750A | 1 | 750 | 4 | 20 | 55 | 58 | 1”x1” | 2.8 | 2 |
| ZZHm-110A | 1.5 | 1100 | 4.8 | 25 | 62 | 66 | 1.5”x1.5” | 3.2 | 2 |
|
