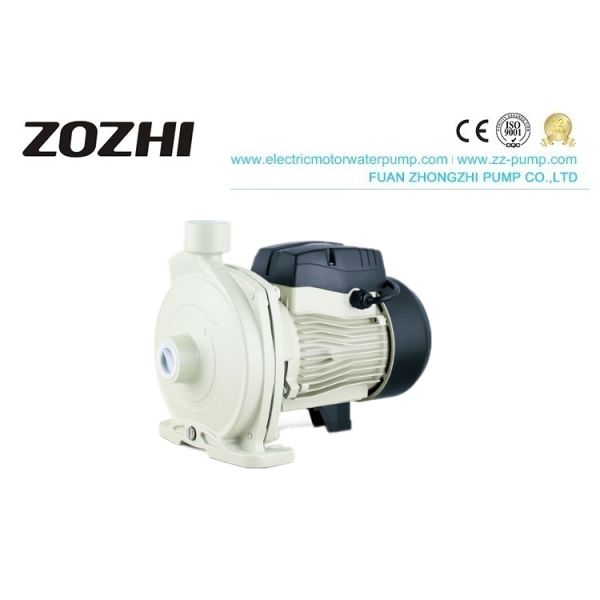

CPM-130L 0.37KW 0.5HP IP44 Centrifugal Water Pump

CPM-130L 0.37KW 0.5HP IP44 Centrifugal Water Pump

Centrifugal Water Pump

These pumps are suitable for handling clean water that does not contain abrasive particles and fluids that are not chemically aggressive to the pump components. They are extremely reliable, simple to use, quiet, and virtually maintenance-free, finding many uses in domestic and civil applications, particularly the automatic distribution of water from small and medium-sized surge tanks, transferring water, watering gardens, etc.

Cast iron pump body
Stainless steel mechanical seal(graphite to ceramic)
Brass impeller
Protection IP44
Anti-rust shaft(Hi-Cr plated 45# steel shaft)
With thermal overload protector in single phase motor
C&U bearing or local bearing


Application :
CPM series are single-stage centrifugal pumps suitable for domestic and industrial applications to convey clean liquids and non-aggressive chemical fluids. The hydraulic characteristic is with a higher head and smaller capacity.

Operating conditions:
Liquid temperature up to 60
Ambient temper up to 40
Total suction lift to 9m
Continuous duty

Construct:
Pump body: Cast Iron
Impeller: Brass
Mechanical seal: Stainless steel/Carbon-ceramic
Motor: Closed, externally ventilated
Insulation class: B and F
Protection class: IP44 or IP54
Shaft: 45# Steel / Stainless steel
Thermal protector (if required)

Technical data(220-240V/50HZ)
