| Categories | Silicone Rubber Heating Pad |
|---|---|
| Place of Origin: | JiangSu |
| Brand Name: | Hotlong |
| Certification: | ISO9001,UL,CE |
| Supply Ability: | 15000 Piece/Pieces per Month |
| Packaging Details: | carton box |
| MOQ: | 50-100 |
| Price: | consultative |
| Delivery Time: | 7-10 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Condition: | New |
| Type: | silicone rubber heater |
| Power Source: | Electric |
| Dimension(L*W*H): | customized |
| Weight: | customized |
| Voltage: | customized |
| Warranty: | 1 YEAR |
| After-sales Service Provided: | Free spare parts, Engineers available to service machinery overseas |
| Name: | use safely silicone rubber heater special-shaped |
| Material: | silicone rubber |
| Usage: | silicone rubber heater |
| Thickness: | Insulation material |
| MOQ: | 1 pcs |
| Color: | Orange |
| Application: | Heater Parts |
| Size: | Reqiured |
| Port: | Shanghai |

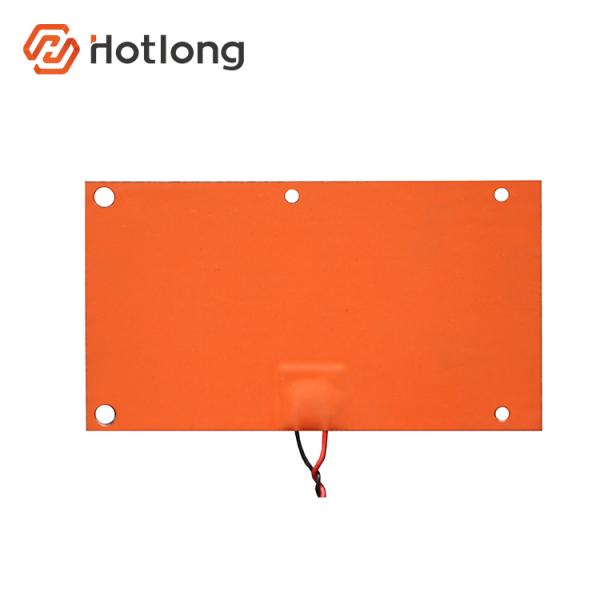

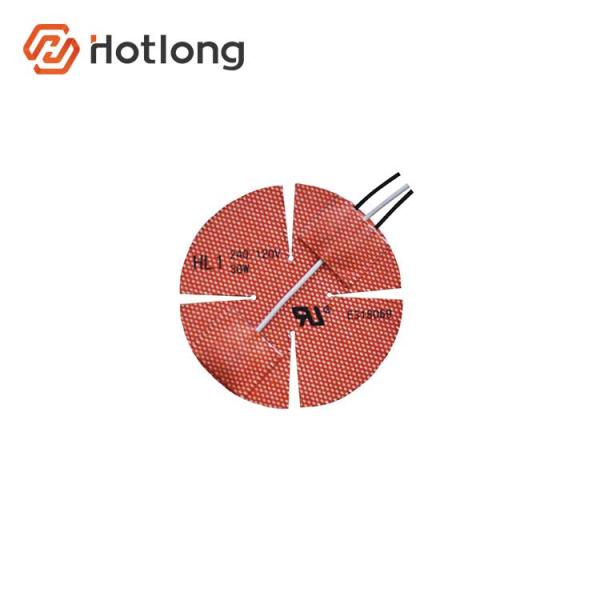

use safely silicone rubber heater special-shaped
Introduction :
silicone rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment. Due to its high reliability, the product is highly competitive when comparing with other electric heating film products which normally have paste materials such as graphite paste or resistor paste, etc. coated on insulation materials. As a kind of soft red film which can be applied closely on different curved surfaces, the silastic heater can be fabricated in varies shapes and powers.
| ◊ Heat resistant temp. | |
| continuous use temp. | 200°C(customized) |
| max. temp. | 250°C(customized) |
| ◊ Power characteristics | |
| insulation resistance | 1000MΩ or over DC500V(customized) |
| withstand voltage | 1500V/1min(customized) |
| ◊ Size | |
| max. | customized |
| min. | customized |
| thickness | customized |
|
