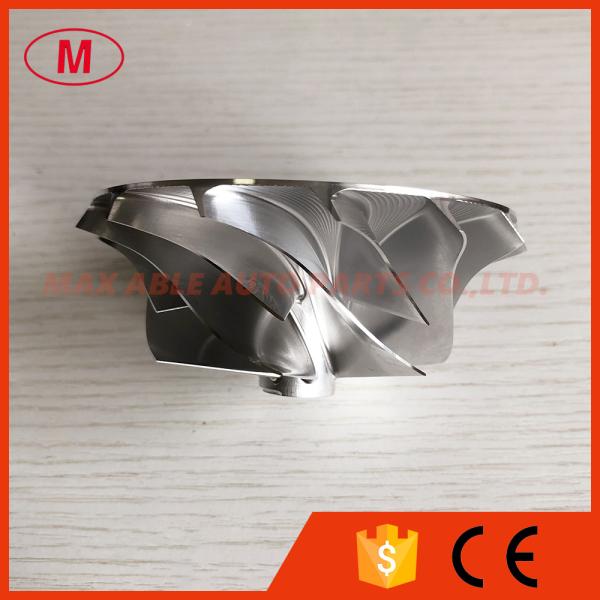

GT3584 7+7 blades 64.97/88.00mm high Performance turbo milling/aluminum 2618/billet compressor wheel

1.Model:GT3584 Forward

2.GT3584 7+7 blades 64.97/88.00mm high Performance turbo milling/aluminum 2618/billet compressor wheel
3.Size:

Nose diameter:16.50mm

Inducer:64.97mm

Exducer:88.00mm

Tapered tip exducer:94.11mm

Tip height:6.29mm

Superback:2.36mm

Bore size:6.35mm

Trailing angle:60

Cutback:8.0

SP height angle:-11.00

Splitter height:22.13mm

Blade height:34.63mm

Overall height:40.99mm

7+7 blades

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !

We can produce as your requirements.

All the compressor wheel have been balanced.

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
