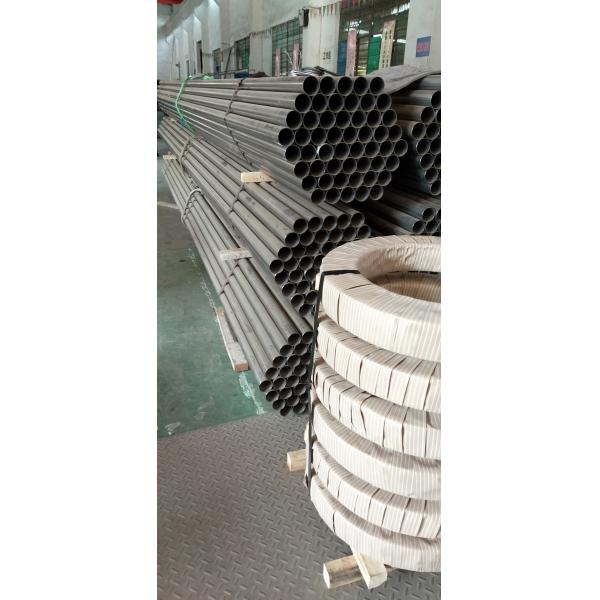

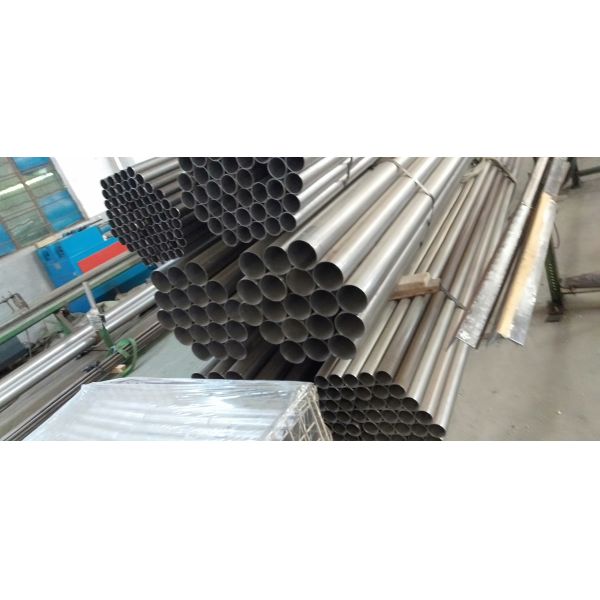

439 Stainless Steel Tubing Sus 439 Stainless Steel Pipe For Exhaust Tubing

Categories Stainless Steel Welded Pipe
Brand Name: Mittel
Model Number: 439
Certification: SGS ISO MTC
Place of Origin: China
MOQ: 100KGS
Price: 1.75 USD/KG
Payment Terms: L/C, T/T
Supply Ability: 80000KGS
Delivery Time: 7 Working Days

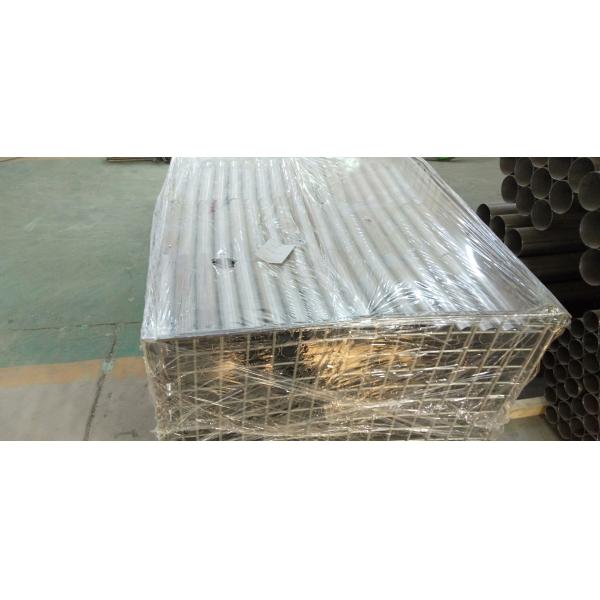

Packaging Details: Wooden Pallet BOX
Steel grade: 439
Type: Welded
Welding line type: ERW
Standard: EN,ASTM,AISI,DIN,JIS
Application: Construction,Decoration,Industry
Surface: Annealing 2D
Thickness: 0.3-3mm
Length: 6 Meters or customized
Outer diameter: 16-127mm
Price term: CIF,FOB,EX-WORK
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

439 Stainless Steel Tubing Sus 439 Stainless Steel Pipe For Exhaust Tubing

439 Stainless Steel Tubing Sus 439 Stainless Seel Tube 439 Stainless Steel pipe For Exhaust Tubing

Type 439 (UNS S43035) in Coil Form

Description
Type 439 is an 18% chromium, titanium stabilized ferritic stainless steel with corrosion resistance similar to that of 304/304L stainless steel. This grade may be used in the annealed, cold formed or as-welded condition in applications where other stainless steels such as Type 304/304L and Type 430 are used. Type 439 has good weldability due to titanium stabilization and has excellent resistance to stress corrosion cracking. Type 439 outperforms Type 409 in both oxidation and corrosion resistance and typical applications include tubular manifolds and exhaust system components.

Chemical Composition
Chemical Composition (wt%) limits as specified in ASTM A240 and ASME SA240*

Element439
Carbon0.030
Chromium17.0-19.0
Nickel0.50
Manganese1.00
Silicon1.00
Nitrogen0.030
Phosphorus0.040
Sulfur0.030
Aluminum0.15
Titanium0.20 +4(C+N) min
1.10 max
* Maximum, unless range is indicated

Mechanical Properties
Mechanical property requirements for annealed product as specified in ASTM A240 and ASME SA240

Property439
Yield Strength, min. (ksi)30
Tensile Strength, min. (ksi)60
Elongation, min. (%)22
Hardness, max. (Rb)89

Physical Properties
Physical properties for Type 439 stainless steel

Property439
Density, lb/in30.278
Modulus of Elasticity, psi29.0 x 106
Coefficient of Thermal Expansion, 68-212˚F, /˚F5.6 x 10-6
Thermal Conductivity, Btu/ft hr ˚F14.0
Specific Heat, Btu/lb ˚F0.11
Electrical Resistivity, Microohm-in24.8
