Steel IPS 40W 250nits 24" LED Lights Bar Monitor

Categories Industrial Touch Screen Monitor
Brand Name: ITD/OEM
Model Number: ITD24CMT5G1
Certification: CE/ROHS/FCC
Place of Origin: China
MOQ: 1PCS
Payment Terms: T/T, PayPal(173515844@qq.com)
Supply Ability: 5000 unit per month
Delivery Time: 15-20 working days
Packaging Details: Foam,gift box,master carton,wooden case,pallet
Resolution: 1920*1080
Material: Steel Housing
Screen Diagonal: 24"
Touch Screen: PCAP touch/IR touch or no touch
View angels: 89/89/89/89
Backlife: LED backlight with 50000 hours’lifetime
Pane; Type: IPS
Video Inputs: VGA, DVI, HDMI inputs
Power Supply: Internal PSU or External PSU
Lifespan: 50000hours
LED Halo: Yes
Custom Design: Optional
Price: TBA
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

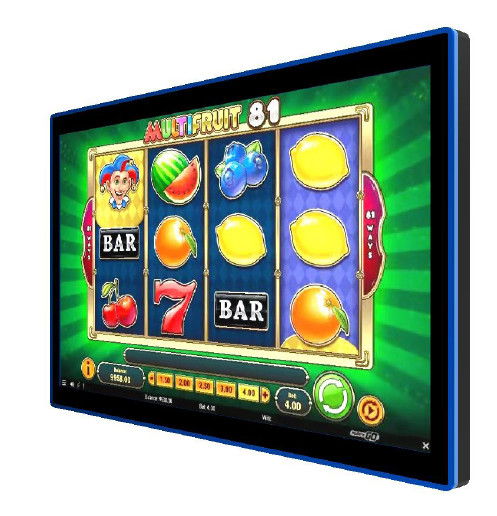

Steel IPS 40W 250nits 24" LED Lights Bar Monitor

24 inch LED lights bar industrial touch screen LCD display monitor


LED framed halo PCAP multi-touch screen monitor is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.


Features

•High contrast color TFT LCD display supports resolution up to 1920 x 1080

•Supports DDC 1/2B for Plug & Play compatibility

•Advanced OSD control for picture quality adjustment

•Rugged steel back chassis, true flat surface, LED strip halo framed

•10 simultaneous multi touch points PCT/PCAP touch Sensor

•Easy to clean without bezel

•CE, FCC, RoHS Compliance


Name23.8 Inch LED Lights Bar Closed Frame Touch Monitor
ModelITD24CMT5G1
LCD Panel Parameters
Display TechnologyActive Matrix TFT-LCD with LED Backlight
Aspect Ratio16:9
Active Area (W x H)527.04 mm×296.46 mm
Native Resolution1920×1080@60Hz
Response Time (Typ.)14ms
Display Colors16.7M
Luminance (Typ.)250nits; with PCAP 212nits
Contrast Ratio (Typ.)1000:1
Viewing Angle (Typ.)Horizontal (left/right) CR≥10 89°/89°
Vertical (up/down) CR≥10 89°/89°
Touch Screen Parameters
Touch TechnologyProjected Capacitive (PCAP)
Surface TreatmentTempered or Chemically Strengthened
Optional: Anti-Glare, Antimicrobial
Active Area (W x H)528.00 mm×297.50mm±0.5mm
Thickness (Total)4.65±0.3mm
Light Transmission≥83%
Response Time8ms
Touch Screen InterfaceRS232
Touch Point1
Overall Parameters
Case/Bezel ColorDark Grey & Champagne Gold
Mounting OptionsVESA: 100×100 mm, 75×75mm,150×450mm
Outline Dimensions(W×H×D)583.20mm×314.25mm×50.30mm
Power SupplyExternal Adapter: 100-240V AC, 50-60 Hz
Input Voltage Range: +12V DC ± 5%
On Screen Display (OSD)Control (back): Power, Auto, Up, Down, Menu
Power ConsumptionMAX: 40W
Operating Altitude≦3000m
Temperature RangeOperating: 0℃ to 40℃, storage: -20℃ to 60℃
Humidity (Non Condensing)Operating: 20% to 80%, storage: 10% to 90%
I/OVGA, DVI, HDMI, USB
AccessoriesCables: VGA×1, USB×1, Power Cord, 1.5m Length
Adaptor: 12V/3.33A, DC Cable: 1500mm, DC Jet ∅2.5mm
Carton Box Dimensions
(2 units in 1 carton)
785mm (L) × 285mm (W) × 530mm (H)
WeightGross: 20Kg
Net: 8Kg
MTBF50,000 Hours Demonstrated
LED Lights ColorMulticolor
LED Lights LocationFront: 4 LED Lights Bar
Back: Optional
Agency ApprovalsCE , FCC, RoHS
Warranty3 Years
