127cm E7628 Flame Retardant Woven Fiberglass Cloth 550C Electronic Cloth

1. Descriptions:

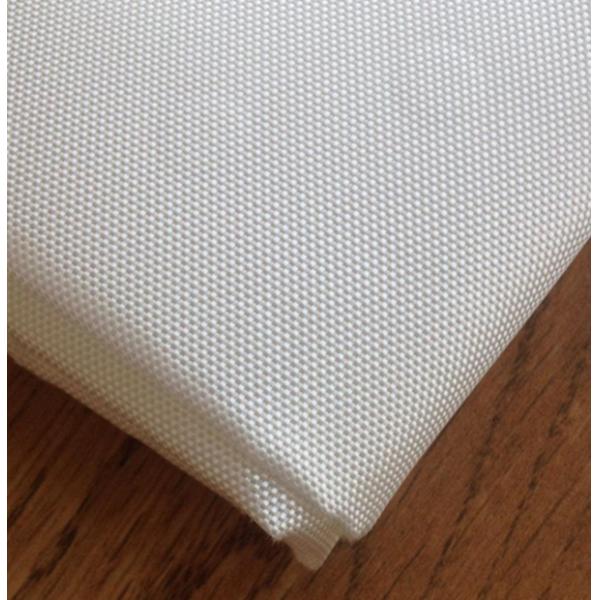

7628 E-glass fiber glass cloth is one of the electronic grade fiberglass cloth. 7628 is a light weight woven fiberglass fabric. It’s a premium grade loomstate glass fabric. It is woven in plain weave and it is weighed at 200g/m2. Standard roll is 1.27m wide x 2400m long.

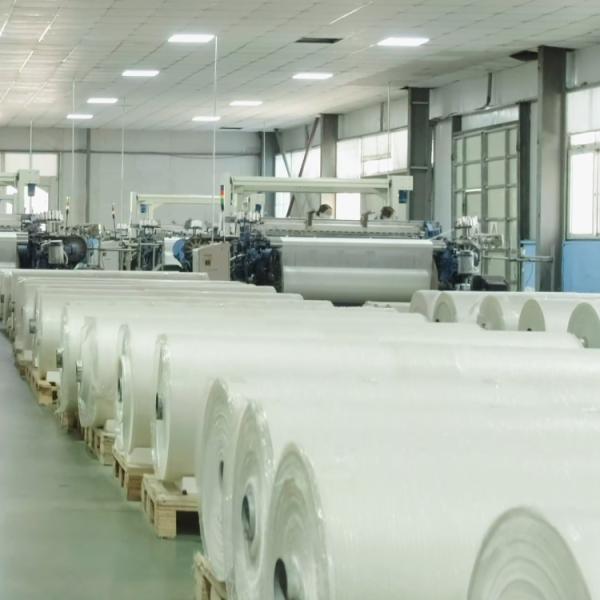

In All forms of Fiberglass Textiles, Jiangnan have adopted the advanced high-speed rapier weaving machine, this kind of Filament Loomstate offer the widest range and the best control over thickness, weight,quality, and strength. This offers the materials engineer a wide choice of controller fabric properties to satisfy design needs and meet objectives.

7628 Electronic glass fiber cloth has high strength, flame retardancy, chemical and oil resistance, and electrical insulation, making it a suitable material for electronic industry applications. The main applications are printed circuit boards and insulation hysteresis.

2. Specification

7628
Item Model		7628 Fiberglass Fabric
Description		Electronic Fiberglass Fabric
Weave Structure		Plain Weave
Weight		200gsm
Thickness		0.2mm
Yarn Type	Warp	EC9 68 1*0
	Weft	EC9 68 1*0
Thread Count	Warp	18 ends/cm
	Weft	12 picks/cm
Break Strength	Warp	438 N/cm
	Weft	350 N/cm
LOI		< 4%
Working Temperature		≤550℃

3. Factors of Scoring In Quality Control

• Fabric Quality

1. We have our own factory in Shandong to produce alkali-free and medium-alkali glass fiber yarns, which are sent to the glass fiber cloth production plant in Changshu every week. We will control the quality and price from the source of the glass fiber cloth
2. We have our own laboratory for product quality testing. We will select 50 meters for testing ​for every 1000 meters of fiberglass cloth. Each product has corresponding indicators. Only when all the inspections are qualified, we will send the goods to the customer, when we encounter products with unqualified quality, we will destroy them. The testing content includes Weft and Warp tension force, Weft and Warp density, Thickness, Width, Length, temperature resistance, electrical conductivity, and cloth surface quality inspection.
3. If any testing data is less than the specified testing content, the roll will be rated as unqualified.
4. Our company has Oven to test the Heat resistance temperature for each product by customer orders.

• ​Packaging :

1. Jiangnan oven Fiberglass Cloth is wound into a roll on a cardboard inner tube with an inside diameter of 10cm (4"). Each roll is wrapped with a plastic bag and placed in a cardboard box. 12 or 16 boxes are placed horizontally on a pallet, which is stretch wrapped.

• High Quality:

1. The fiberglass yarns is supplied by ourselves, it is more 20% strength and beautiful surface than normal fiberglass yarns,

• Low Price:

1. Our material factory locates next to a power station,so we produce the glass fiber with low electricity and low water cost.

4. Product Application

• 7628 Electronic glass fiber cloth has high strength, flame retardancy, chemical and oil resistance, and electrical insulation, making it a suitable material for electronic industry applications. The main applications are printed circuit boards and insulation hysteresis.

5. Product Features

• This fiberglass fabric is made of continuous fiberglass yarns.
• Good film performance,fast resin impregnation speed and high construction efficiency.

• The product has good transparency, high strength, parallel arrangement, and even and uniform pulling force.

• ​Good Chemical Resistance

6. More Pictures for Product and Package

7. Related Products (If you want to other different thickness for fiberglass fabric)

Fiberglass Cloth Roving
Item Name	Thickness (mm)	Weight (g/m2)	Weave	Width Length (cm)	Remarks
E7628	0.18	180	Plain	127	All Size Can be Customized
C7628	0.2	200	Plain	100/130/150
CW280	0.28	280	Plain	102
E3732	0.38	430	1/3 Satin	100/120/150/180/200
C3732	0.38	430	1/3 Twill	100/120/150/180/200
2523	0.38	380	Plain	100/120/150/180/200
E666	0.6	630	8H Satin	100/120/150/180/200
C666	0.6	630	8H Satin	100/120/150/180/200
E3784	0.8	850	8H Satin	100/120/150/180/200
C3784	0.8	850	8H Satin	100/120/150/180/200
E3786	1.2	850	8H Satin	100/120/150/180/200
C3786a	1.2	1000	12H Satin	100/120/150/180/200
C3786b	1.2	1200	12H Satin	100/120/150/180/200
C3786c	1.2	1300	12H Satin	100/120/150/180/200
E3788	1.6	1650	12H Satin	100/120/150/180/200
C3788	1.6	1650	12H Satin	100/120/150/180/200
