| Categories | Power Line Fittings |
|---|---|
| Brand Name: | NTS |
| Model Number: | NTS050 |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 500pcs |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50000 |
| Packaging Details: | Pallet / Carton |
| MATRIAL: | STEEL |
| SIZE: | 1/4 3/8 1/2 |
| SURFACE: | Galvanized |

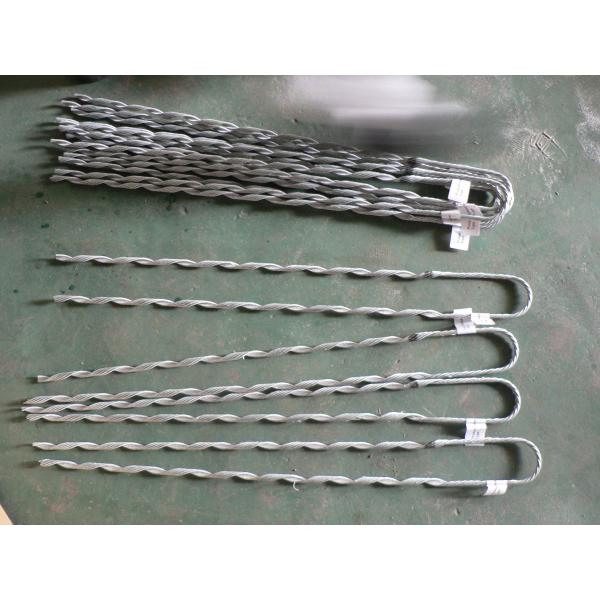

Preformed dead end guy grip
1.Preformed dead end clamps
2.Professional manufacture
3.factory direct price
4.ISO9001:2015
GUY-GRIP Dead-ends installed at the top, the breaker and the anchor, provide today’s
most effective method for securing guy strand. This unique,
one-piece dead-end is neat in appearance and free from bolts or
high-stress holding devices. The GUY-GRIP Dead-end was the first to
offer the cabled loop, a feature that provides more durabil- ity,
easier tensioning and adaptability to multiple guying.
GUY-GRIP Dead-ends are made of the same material as the strand to which they are
applied. They should be used on hardware that is held in a fixed
position.The fitting should not be allowed to rotate or spin about
the axis of the strand. They should not be used as tools including
come-alongs, pulling-in grips, etc.
product model of the Company | standard model of the industry | Appliceble diameter of guide wire(mm) | Applicable type of guidu wire YB/T5004-1993(mm ² ) | Reference length of wire clamp(mm) | Wrie clamp weight(KG) | Color code | Matching fittings |
| SNL-25/G | NL-25/G | 6.60 | 25 | 635 | 0.22 | Yellow | Capel,adjustable wire,anti-theft ring clamp |
| SNL-35/G | NL-35/G | 7.8 | 35 | 711 | 0.30 | Black | |
| SNL-50/G | NL-50/G | 9.0 | 50 | 901 | 0.53 | Orange | |
| SNL-70/G | NL-70/G | 11.0 | 70 | 1016 | 0.82 | Green | |
| SNL-95/G | NL-95/G | 12.5 | 95 | 1333 | 1.50 | Orange | |
| SNL-100/G | NL-100/G | 13 | 100 | 1333 | 1.50 | Yellow | |
| SNL-120/G | NL-120/G | 14 | 120 | 1460 | 2.22 | Yellow |
