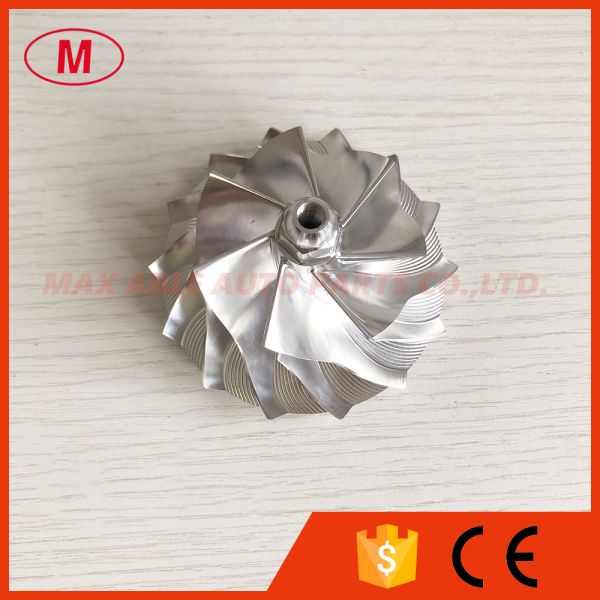

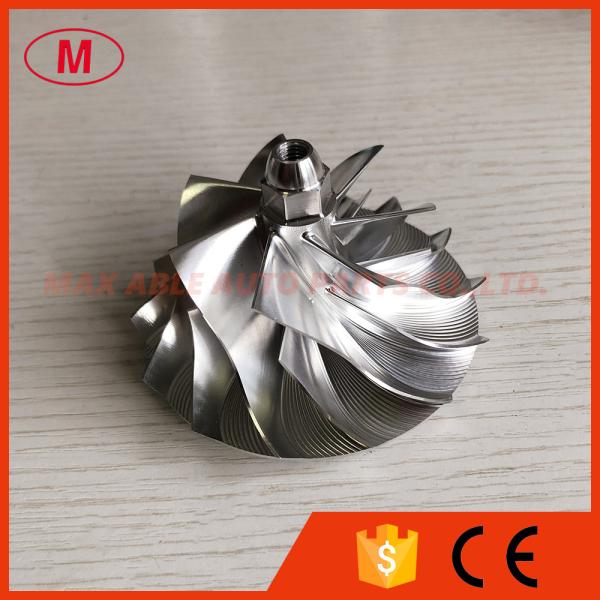

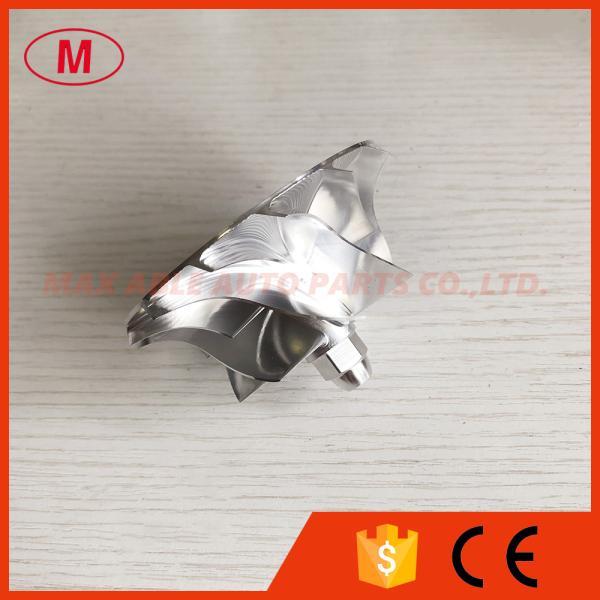

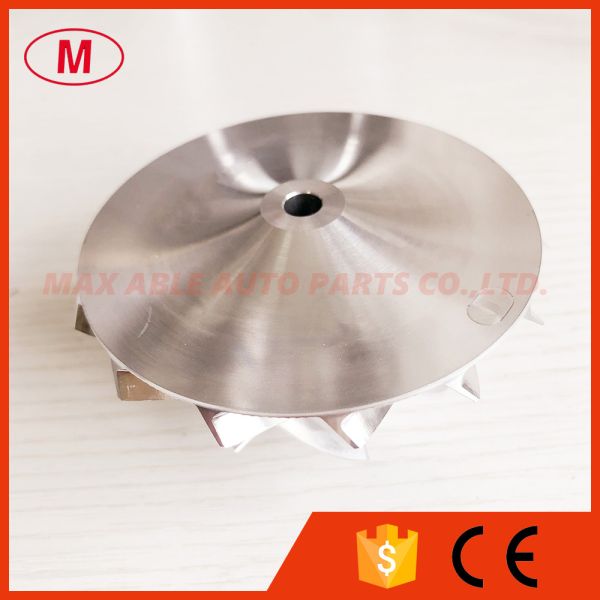

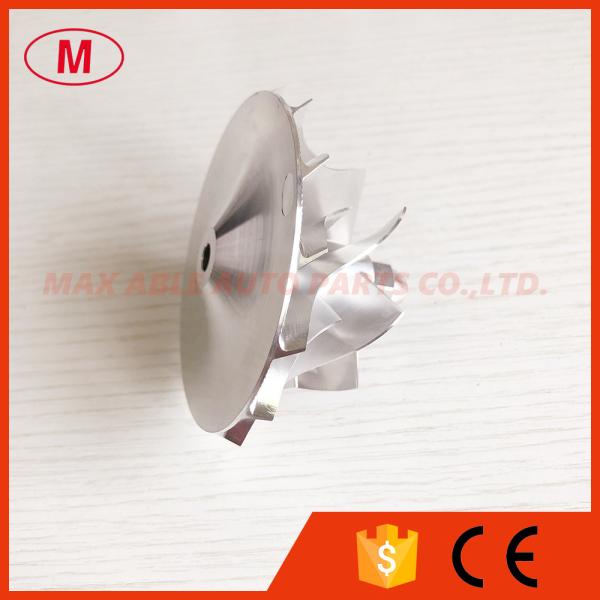

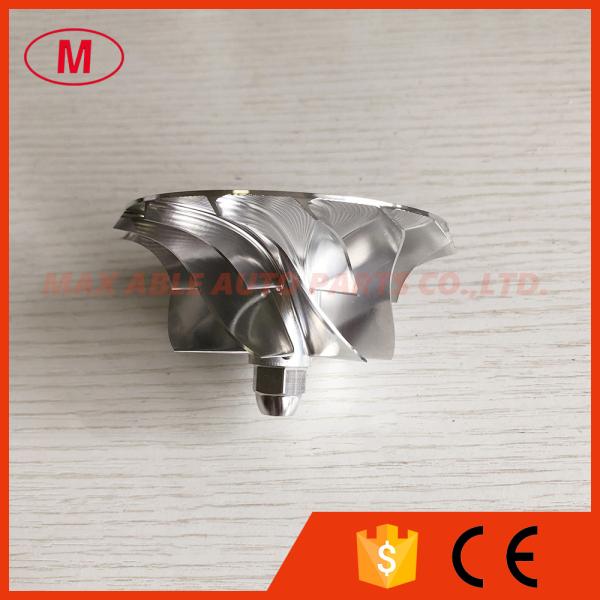

T04E 7+7 blades 53.87/76.07mm 448048-0004 performance Bullet Head turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:T04E FORWARD

2.T04E 7+7 blades 53.87/76.07mm 448048-0004 high performance Bullet Head turbocharger milling/aluminum 2618/billet compressor wheel for 451567-0001/452240-0001/466575-0001/466575-0002

3.Size:

Nose diameter:15.28mm

inducer:53.87mm

Exduder:76.07mm

Tapered tip exducer:81.22mm

Tip height:5.46mm

Superback:4.97mm

Overall height:51.00mm

bore size :6.35mm

Bore type:Threaded 1/4-28G-LHT

Trailing Angle:45 degree

Cutback:0.0

SP Height angle:-5.80

Blades height:31.69mm

Splitter height:18.00mm

7+7 blades

forward rotation

Tapered tip angle:30 degree

It is fit for OE compressor housing

Application:

451567-0001

452240-0001

466575-0001

466575-0002

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the billet compressor wheels have been balanced.

The more models we also have.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
