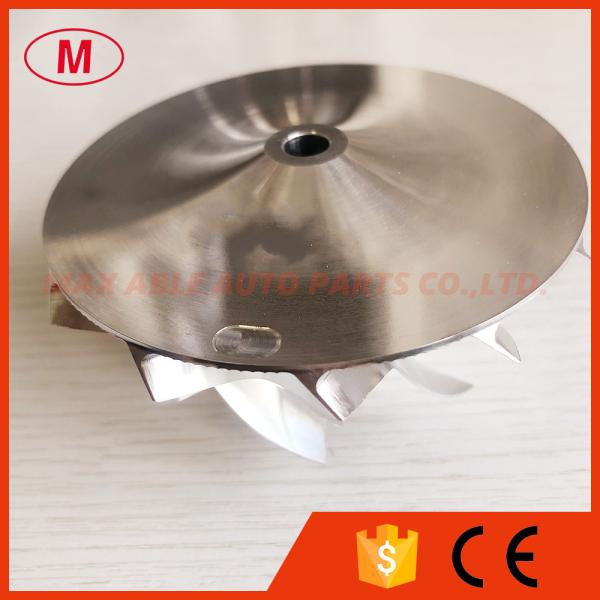

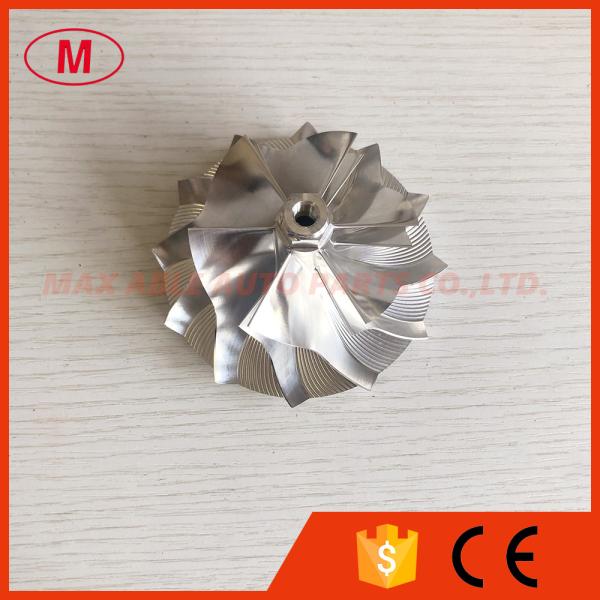

GT4088R 63.50/88.25mm 451583-0004 6+6 blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel

1. MODEL:GT4088R forward

2.GT4088R 63.50/88.25mm 451583-0004 6+6 blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel for racing 751470-5003
3.Size:

Nose diameter:16.07mm

inducer:63.50mm

Exducer:88.25mm

Tapered tip exducer:94.89mm

Tip height :6.75mm

superback:5.30mm

Overall height:53.43mm

Bore size:7.48mm

Trailing Angle:50

Bore type:Threaded-M7x1.0LHT

Cutback:0.0

Splitter height:28.20mm

SP height angle:-7.70

FIT for OE compressor housing

blades height:37.87mm

6+6 blades

forward rotation

Tapered tip angle:30 degree

4.High quality and competitive price.

5.Any questions please send email to me.
