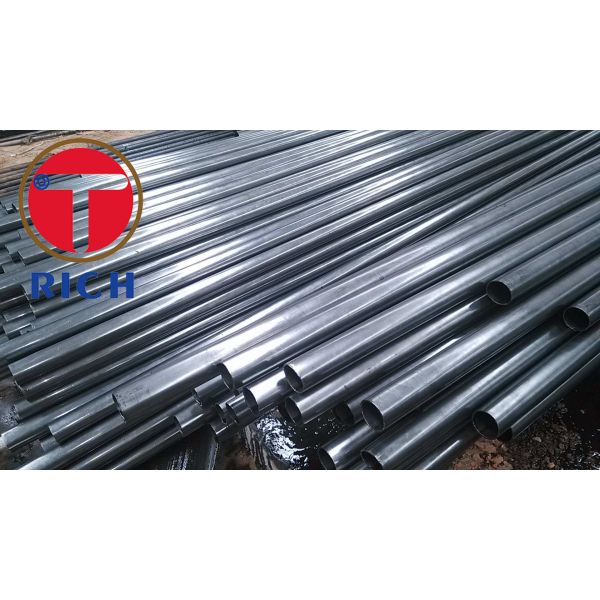

Cold Drawn Q345 EN 10305 E235 Precision Steel Tube

EN 10305 E235 PRECISION SEAMLESS STEEL TUBE

Application:

High Precision Cold Rolled Seamless Steel Tube is used in automotive industry, and in the

occasion where the high accuracy, brightness, cleanness of the tube are required.

Sizes Range:

OD:8mm-280mm, WT:1mm-15mm

Delivery Conditions:

+C Hard. No final treatment after final cold drawing.

+LC Soft. Final heat treatment is followed by a suitable drawing pass (limited reduction of area).

+SR Stress Relieved. After final cold drawing, the tubes are stress relieved in a controlled atmosphere.

+A Annealed. After final cold drawing, the tubes are annealed in a controlled atmosphere.

+N Normalized. After final cold drawing, the tubes are normalized in a controlled atmosphere.

Process:

The cold drawn seamless steel tube is produced by drawing raw hot rolled steel tube through

a die and over a mandrel plug.During this process the sizing (wall thickness, inside and outside

diameter), as well as weld integrity and surface finish is closely controlled to produce tube of the

required size and mechanical property characteristics.

Tube Finishing Options:

Our tubes can be additionally treated to achieve the exact finishes and ends needed by

customers. These are some of the additional operations that can be performed on our tube:

Drawing, Heat treatment, Bulging, Swaging, Cutting, Deburring, Vibro cleaning, Threading,

De-rusting, Chamfering, Washing.

Surface treatment: Oiled, black painted, hot dipped galvanized or phosphate coating as

required.Both ends of each crate will indicate the order no., heat no., dimensions, weight

and bundles or as requested.

Standard AND Optional Testing:

Visual and dimensional test 100%.

Eddy current test 100% acc. to EN 10246-3.

Ultrasonic test 100% acc. to EN 10246-7.

Chemical composition.

Impact test.

Mill Test Certificate:

The product is supplied with 3.1.B inspection certificate,according to the standards EN 10204

and ISO 10474.

Q: Are you a manufacturer?
A: Yes, we are manufacturers, we have our own factory, located in Zhejiang,

China. We have the leading edge in production and export, we are exactly what you need.

Q: Can we go to your factory?
A: A warm welcome, we will pick you up once we have your schedule.

Q: Can you arrange delivery?
A: Of course, we have permanent freight forwarders who can get the best prices from most shipping companies and provide professional services.

Q: How do we get a quote?
A: Please provide product specifications such as material, size, shape, etc. We can provide the best offer.

Q: How do you make our business long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure the interests of our customers.
2. We respect every customer as our friend, no matter where they come from, we will sincerely do business with them and make friends.

Who We are ?

-------A professional steel pipes materials inventor, manufacturer and solution provider
Torich International Limited is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes, which holds the factories of Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Grade.
Our factory was established since 1997, with the name of TORICH INTERNATIONAL LIMITED. The factories’ technicians are of great engineering experience in steel pipe industry for more than 20 years, which are in great command of production technology for Cold Drawing and Cold Rolling. So we have strong technician team and manufacturing capability.

What products we do?

------- Invent and produce various Precision Steel Pipes

Our steel pipes cover the following ranges:
Seamless Precision Steel Pipes

Bearing Steel Tubes
Welded Precision Steel Pipes, with DOM production
Seamless Heat Exchanger Steel Pipe
Seamless Boiler Steel Pipes

Honed Tubes

Hydraulic Cylinder Steel Tubes

Hydraulic Telescopic Cylinder Tubes
Seamless Structural Steel Pipes
Seamless Mechanical Steel Pipes
Seamless Alloy Steel Tubes & Pipes
Seamless Stainless Steel tubes
Welded Stainless Steel Tubes
Seamless Stainless Steel Tubes & Pipes
Welded Stainless Steel Tubes & Pipes
Seamless Carbon Steel Tubes & Pipes
Nickel Alloy Steel Tubes & Pipes

What TORICH do:
1. Producing Steel Tubes
2. Selling both on Domestic and International Market
3. Precisely Targeting Customers’ Requirement- Sourcing the right factory for right products for Customers

Products Application:
Oil Cylinders
Air Cylinder,
Automotive Cylinder Liners
Boilers, Pressure Vessels
Shell & Heat Exchangers
Jack Lifting
Telescopic Systems
Pneumatic Cylinders
Agricultural Machineries

Size range is:
O.D. 4-350mm,
W.T. 0.5-30mm,
Length: according to customer’s requirement and agreement


Steel Grade:
Carbon Steel Grade:
ST35.8, ST37.0, ST44, ST52;
E155, E195, E215, E235, E275, E355;
195GH, P235GH, P265GH, P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2;
SAE1010, SAE1020, SAE1026, SAE1035, SAE1045;

Carbon steel tube: SA178, A179, A192, A210, SA213, SA214, etc.
Alloy Steel Grade:
T2, T5, T9, T11, T12, T17, T21, T22, T91,T92, 15Mo3,16Mo3, 13CrMo44;
SAE4130, SAE4140, 40Cr, 40Cr4, 10CrMo910, 12CrMo910, 11CrMo910,
25CrMo4, 35CrMo, 35CrMo4, 42CrMo4, 34CrMo4, 20MnV, 20MnV6,20CrMn;
Carbon steel tube: A179,A192,A210,DIN17175,etc.

Bearing Steel Grades:
GCr15 52100 suj2 suj3 100Cr6 SKF3S SKF3S 20CrNiMo 8620H 4118H;

Nickel Alloy Grade:
N02200/2201, N04400, N06600, N06601, N06625, N06852, N06219, N06690, N08800/8810/8811, N08825, N08028, N08535, N08904, N08925, N08926, N010276, N06022, etc.

Austenitic/Super Austenitic Stainless Steel Grade:
304/304L, 316/316L, 314, 321, 347H, 316Ti, 316LMod, 317L/N, 310S, 253MA, 330, 904L, S31254, XM-19, etc.

Ferrite/Martensite Stainless Steel Grade:
TP410, TP405, TP420, TP430, TP430Ti, TP403, TP409, TP444, TP439, TP446, etc.

Duplex/Super Duplex Stainless Steel Grade:
S31803, S32304, S31500, S32550, S32750, S32760, etc.
Corporate Culture:
We focus on Quality First, Quality Traceability, and Quality Stability!
We focus on Customer First, People First, and Quality-Oriented!
Success:
First factory started in 1997, in the name of Torich , now covers 50000 square meters of factory building, with more than 100employees, and over 45 million RBM assets.
In 2008, we started the company of Torich International Limited for international business and marketing.
Welcome partners from all over the world for long term cooperation!
