| Categories | Construction Road Roller |
|---|---|
| Brand Name: | XCMG |
| Model Number: | XMR353E |
| Certification: | ISO CCC |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 units per month |
| Delivery Time: | Within 20 work days after receive order |
| Packaging Details: | Nude, Polished with wax before shipping on board |
| Description: | XCMG XMR353E mini road roller |
| Operating weight: | 3t |
| Rated power: | 21kw |
| Fuel tank capacity: | 65L |
| Hydraulic tank capacity: | 40L |
| Sprinkler capacity: | 180L |

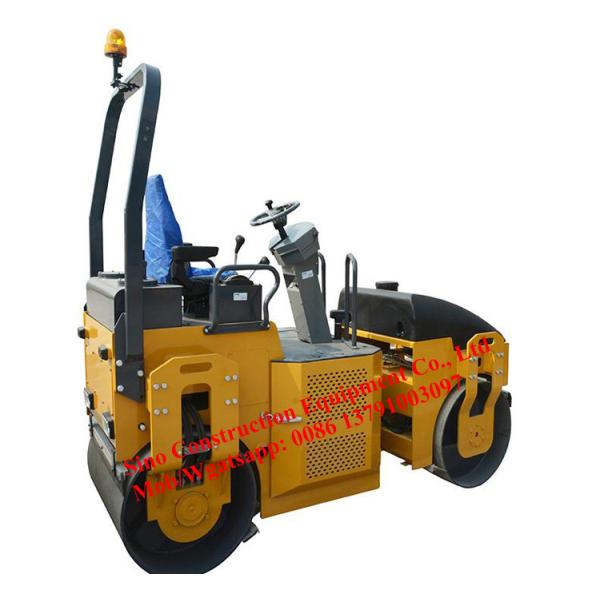

XMR353E 3 ton Light Road Roller Small Civil Road Construction
Main parameter
Working mass with canopy: 3500 kg
Vibration frequency: 50 Hz
Exciting force: 32 kN
Working width/vibrating wheel width: 1200 mm
Model: ZN390B
Rated power: 28.5 / 2600 kw/rpm
Detailed configuration
* ZN385Q,
*Single drive, single vibratory drum .
Advantages
Adopt good brand engine , pump ,vibratory bearing .Great working performance .
Easy for compaction even on road side .
Technical specification of XMR353E 3 ton Light Road Roller
| Description | Unit | XCMG XMR353E |
| Operating weight | kg | 3000 |
| Roller diameter | mm | 400 |
| Roller width | mm | 708 |
| Rolling system | Tandem type both drum drive | |
| Power line | Hydraulic transmission | |
| Final drive | Gear | |
| Brake system | Hydraulic, mechanical pin lock | |
| Speed | km/h | 0-7.5 |
| Gradeability | % | 20 |
| Centrifugal force | kN | 30 |
| Frequency | Hz | 50 |
| Engine model | ZN385Q | |
| Rated speed | r/min | 2400 |
| Rated power | kw | 21 |
| Fuel tank capacity | L | 65 |
| Hydraulic tank capacity | L | 40 |
| Sprinkler capacity | L | 180 |
| Overall Dimensions(L/W/H) | mm | 2690×756×1108 |
| Transport Dimension(L/W/H) | mm | 1337×756×1976 |





|
