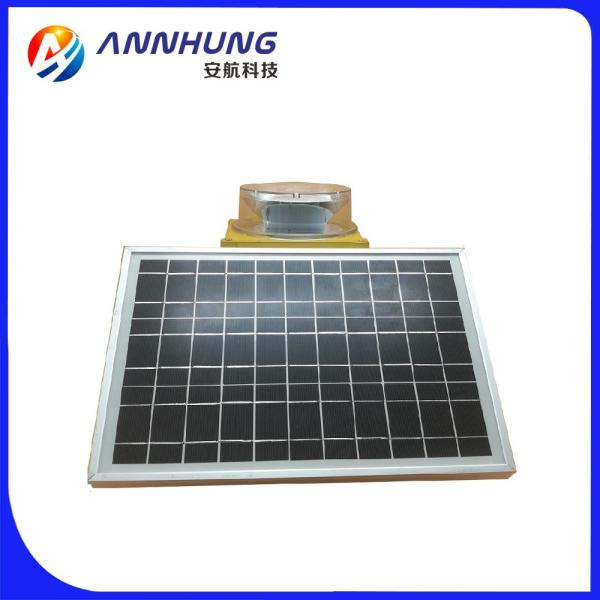

Medium intensity type A White Solar Aviation Obstruction Light 20,000cd at day time, 2000cd at night 20FPM 40FPM

This Medium-intensity Type A Aviation Obstruction Light flashing white color, designed for marking top of obstacle which height is between 105 to 150 meters.

Ultra high intensity LED is used as light source which make performance better, and solar panel vertical degree is adjustable(10°15°20°25°30°35°40°) for get as much as sunlight in different area.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light

l FAA L-865

Features

Electrical

l Ultra high intensity CREE LED light source saving power consumption and maintenance

Physical

l UV & vibrations protected polycarbonate lens for converging light

l Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation

l Side open stainless steel battery box

l Battery: Lithium ion battery

l Solar panel vertical degree is adjustable(10°15°20°25°30°35°40°)

System design

l Solar panel as photocell for day & night working mode (dusk to dawn mode)

l ON/OFF button interface

Optional

l GPS Synchronization

l Infrared LED for pilot using NVG

Application

AH-MS-A1 solar medium-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity lights & medium intensity type B light installed on the lower place.

Catalog download: download AH-MS-A1 Medium-intensity Type A L865 So...
