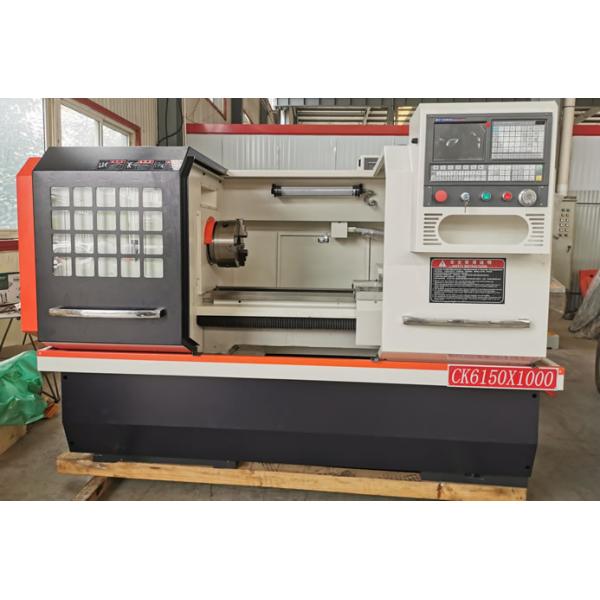

Centro de torneado cnc Máquinas de corte para superficies cilíndricas interiores y exteriores, conos, roscas, etc.

Centro de torneado cnc Máquinas de corte para superficies cilíndricas interiores y exteriores, conos, roscas, etc.

Descripción del producto

Principales características

1) usar acero de fundición rígido fuerte. Los ejes X/Y/Z se suministran con guías rectangulares de plástico
Pegatina, amortiguación de frecuencia media y raspado con precisión.

2) husillo de Taiwán con alta velocidad y precisión.

3) rodamiento importado de alta precisión

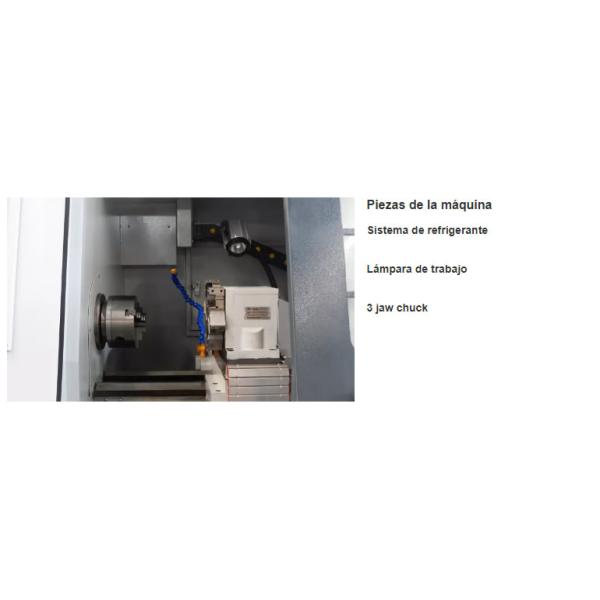

4) Sistema de refrigerante equipado con bomba de flujo grande y bomba de elevación alta para asegurar la refrigeración suficiente bajo corte de alta velocidad.

Aplicación:

La máquina es adecuada para procesar todo tipo de eje y placa de tamaño pequeño y mediano, y también podría girar varios hilos, arco circular, cono circular, superficie interior y exterior del cuerpo giratorio. Esta máquina es ampliamente utilizada en sanitarios, valor, electrodomésticos, instrumentos, automóviles, motocicletas, rodamientos, etc.

Producto Especificaciones principales:

Especificación		Unidad	CK6136	CK6140	CK6150
	Diámetro de giro máximo en la cama	Mm	360	400	500
Capacidad de procesamiento	Diámetro de giro máximo en el soporte de la herramienta	Mm	190	230	330
	Distancia del centro	Mm	750/1000/1500	750/1000/1500	750/1000/1500
	Ancho de la cama	Mm	360	360	360
Husillo	Husillo de apertura		Y phi; 52/80	Y phi; 52/80	Y phi; 52/80
	Husillo tamaño final		C6	C6	C6
	Husillo cónica		MT6	MT6	MT6
	Rango de velocidad del eje (número de etapas)	Rpm	40-1400 (9 pasos)	40-1400 (9 pasos)	40-1400 (9 pasos)
Alimentar	Rango de rosca métrica (número de especies)	Mm	0,25-14 (19 tipos)	0,25-14 (19 tipos)	0,25-14 (19 tipos)
	Pulgada rango de rosca (número de especies)	Pulgadas	2-40	2-40	2-40
	Rango de rosca Modular (número de especies)	Mm	0,5-3,5 (11 tipos)	0,5-3,5 (11 tipos)	0,5-3,5 (11 tipos)
Monopatín	Horizontal skateboard viaje	Mm	222	222	222
	Cuchillo de golpe	Mm	95	95	95
	Tamaño de la sección transversal de la barra de herramientas	Mm²	20 × 203	20 × 203	20 × 203
Tailstock	Contrapunto manga cono		MT4	MT4	MT4
	Ailstock manga diámetro	Mm	65	65	65
	Contrapunto de golpe	Mm	140	140	140
Motor principal		Kw	4	4	5,5

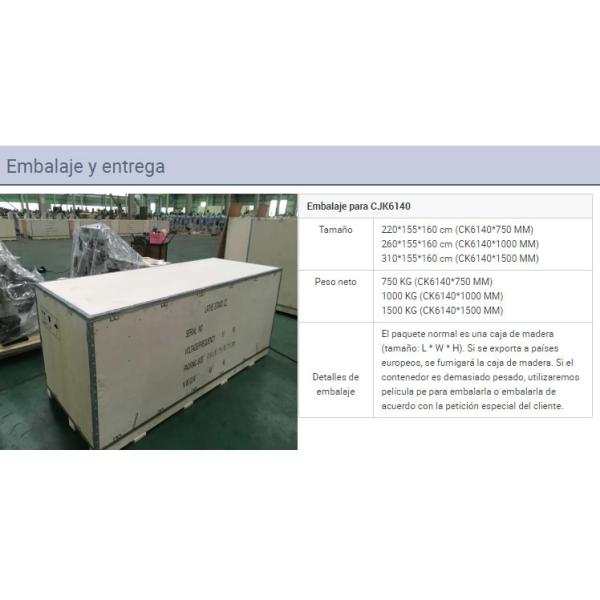

Dimensiones del paquete: mm
Distancia del centro		750mm	2220x150x1590	2220x150x1590	2220x150x1590
		1000mm	2470x1150x1590	2470x1150x1590	2470x1150x1590
		1500mm	2970x1150x1590	2970x1150x1590	2970x1150x1590
Peso: Peso neto/peso bruto kg
Distancia del centro		750mm	1350/2000	1400/2050	1500/2150
		1000mm	1450/2100	1500/2150	1600/2250
		1500mm	1600/2250	1650/2300	1750/2400
