| Categories | Dental Milling Burs |
|---|---|
| Brand Name: | XTCERA |
| Model Number: | X-cut Burs |
| Certification: | CE , ISO |
| Place of Origin: | Shenzhen , China |
| MOQ: | 10 sets |
| Price: | 75 - 90 $ / set |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets |
| Delivery Time: | 3-5 working days |
| Packaging Details: | Plastic Box |
| Material: | Carbide Metal |
| Coating Material: | Diamond |
| Length: | 45 - 50 MM |
| Effective Length: | 8 - 16 MM |
| Cutting Edge: | 0.6 - 2 MM |
| Workable Materials: | Wax , Resin , PMMA , Zirconia , Titanian , Glassceramic |
| Company Info. |
| Shenzhen Xiangtong Co.,Ltd. |
| View Contact Details |
| Product List |

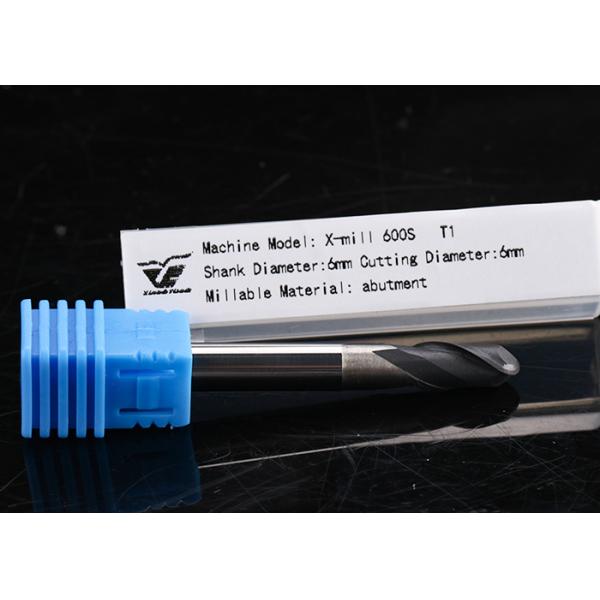

Diamond Coated Dental MIlling Burs for Wax , PMMA , Zirconia , Glassceramic , Titanian
X-CUTTER burs are diamond coated milling burs, manufactured specifically for CAD/CAM system.
Our milling burs could be applied to Zirconia blocks, glass ceramic, PMMA and metal .
Specifications :
| φ | Coating | Effective length | Total length | Material |
| 4mm Shank Dia | ||||
| 2.5 | Dia | 15 | 45 | Glass ceramic |
| 1.0 | Dia | 11 | 45 | Glass ceramic |
| 0.6 | Dia | 11 | 45 | Glass ceramic |
| 3mm Shank Dia | ||||
| 2.5 | Dia | 15 | 45 | Glass ceramic |
| 1.0 | Dia | 11 | 45 | Glass ceramic |
| 0.6 | Dia | 11 | 45 | Glass ceramic |
| 3.0 | Dia | 14 | 50 | Metal |
| 2.0 | Dia | 12 | 50 | Metal |
| 1.5 | Dia | 8 | 50 | Metal |
Fuction of three different tools :
T1 : Start on rough cutting, do 80% of the work .
T2 : Continue the 18% of remained by T1, outlook of case has been shaped .
T3 : Complete the last 2% of groove and margin area cutting .
Note: Long tool for high thickness Zirconia blank milling is also available ( 22mm above thickness material), which cutting length is 22 mm , instead of 16 mm , of T1 and T2, T3 is the same size.
| 2.0 | Dia | 16 | 50 | Zr , Resin , PMMA |
| 1.0 | Dia | 16 | 50 | Zr , Resin , PMMA |
| 0.6 | Dia | 8 | 50 | Zr , Resin , PMMA |


Features:
1. Made of high quality carbide alloy
2. Long life span thanks to the cutting-edge diamond coating technology
3. Minimum risk of bur cracking due to the high tenacity
4. Comptible with Zirconia, Wax , glass ceramic ,PMMA,and metal;
5.Exceptionally sharp edge, preventing chipping and cracks of teeth
|
